Galvanized Steel Wire Rope, Zinc Galvanized, 7x19 Strand Core, Black

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Zinc Galvanized
Standard Construction
7x19 Strand Core
Material Type
Steel
Color Name
Black
Coated OD
[ N/A ]  inches
UNSPSC Code
31150000
Brand Name
Small Parts
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 4? Order in-stock items in the next 14 hrs 13 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Bare OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-3 of 3
1/8" 250 ft 2000 lbs B0038YY34E yes $210.50 Buy Options
3/16" 250 ft 4200 lbs B0038YY34O yes $360.29 Buy Options
1/4" 250 ft 7000 lbs B0038YY358 yes $559.78 Buy Options

Key Features

  • Galvanized material is coated with a thin layer of zinc that protects the underlying material from corrosion and provides rust resistance
  • Galvanized material remains ductile over long work periods
  • Black powder coating helps to hide cable from visual detection in aircraft, lighting and scenery applications
  • 7x19 is more flexible and fatigue-resistant than the 7x7 class construction
  • 7x19 cable is used over pulleys, rigging, winches, in exercise equipment, and garage door mechanics

Product Description

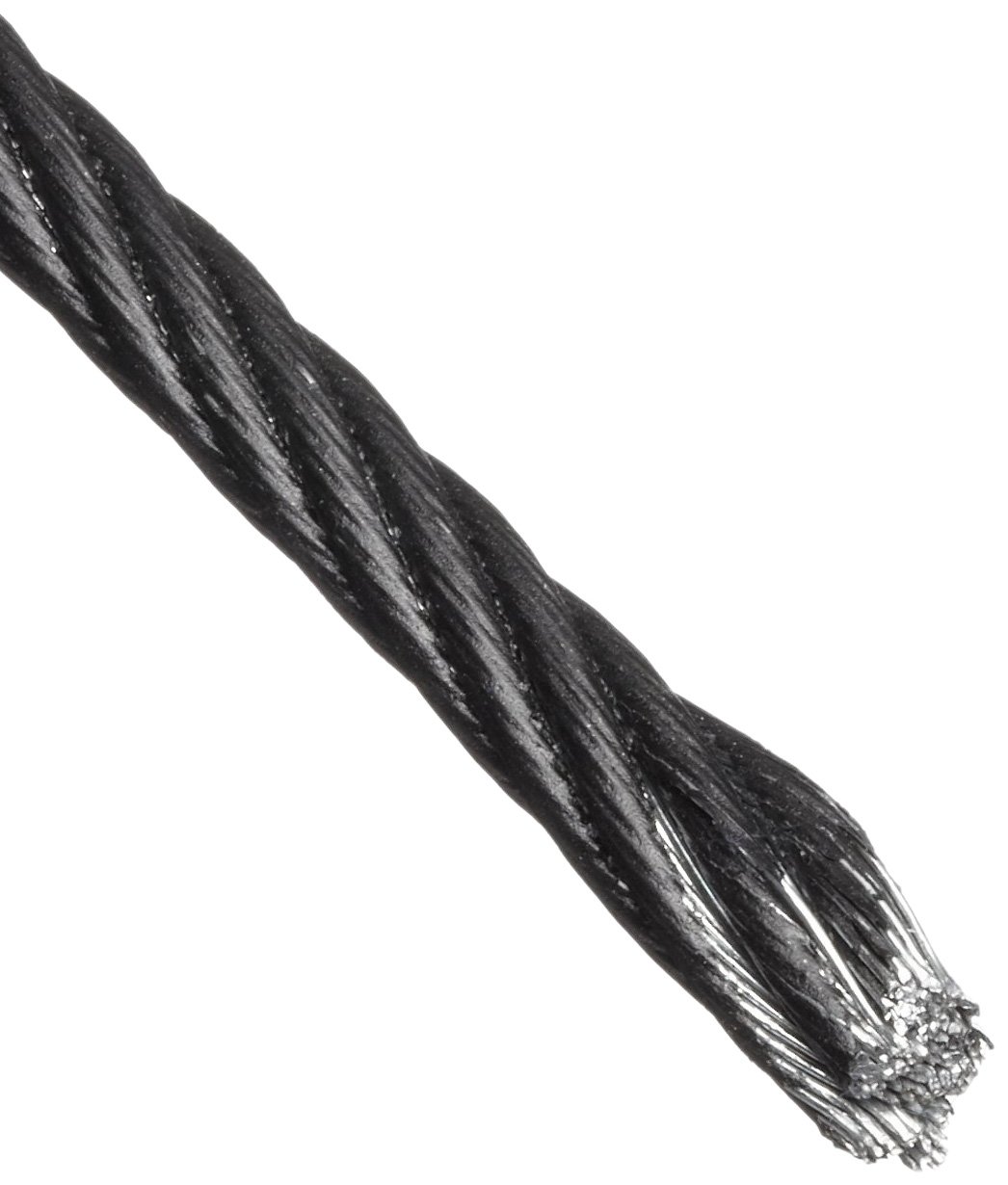

Galvanized black powder-coated cable with 7x19 standard construction can be used in the aeronautical and entertainment industries and over pulleys, rigging, winches, in exercise equipment, and in garage door mechanics. Galvanized material is coated with a thin layer of zinc that protects the underlying material from corrosion and resists rust. Galvanized material remains ductile over long work periods. Black powder coating helps to hide cable from visual detection in aircraft, lighting, and scenery applications. 7x19 has seven strands of wire rope with nineteen wires in each strand formed helically around a core. 7x19 is more flexible and fatigue-resistant than the 7x7 class construction.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optic, aircraft, automotive accessory, and construction industries. A combination of characteristics such as material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
