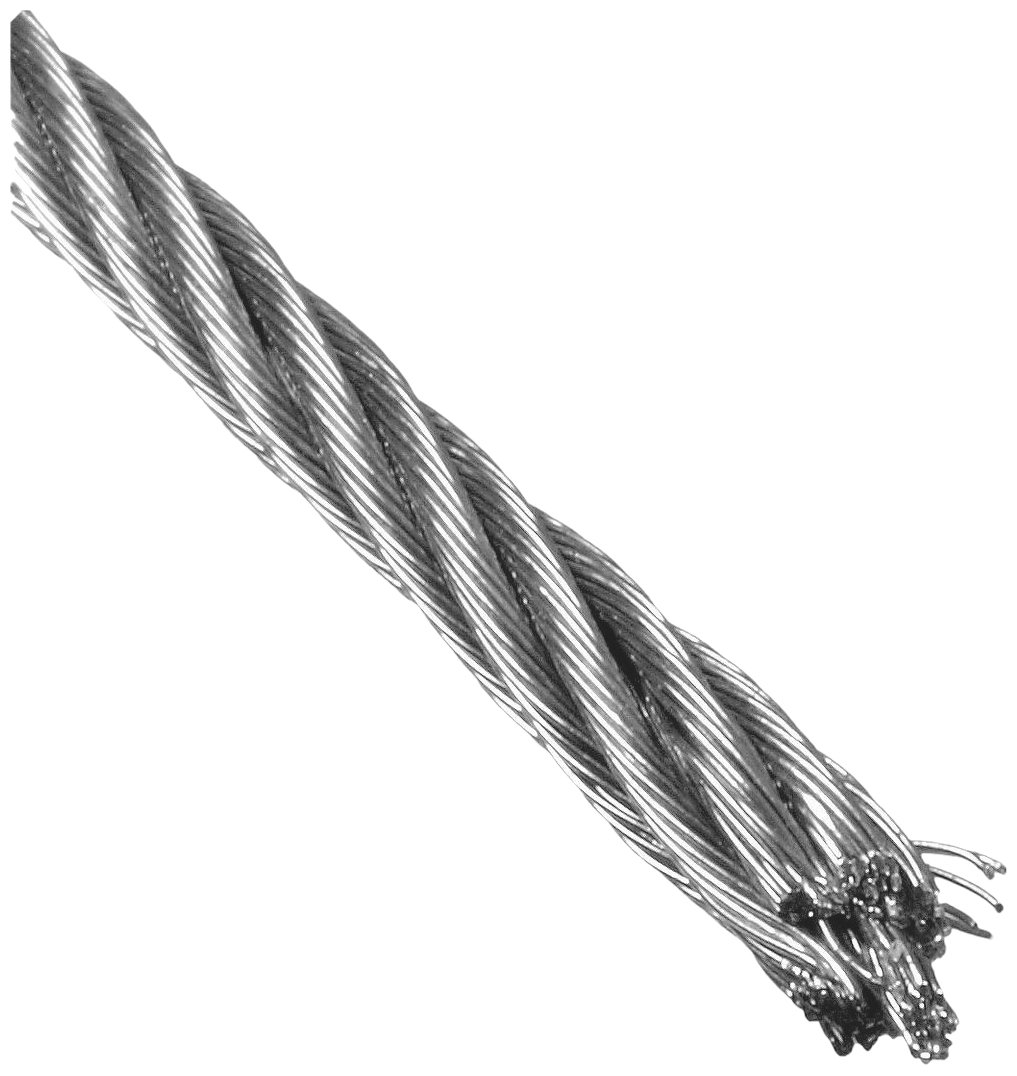

Loos Galvanized Steel Wire Rope, Zinc Galvanized, Military Specification, 1x7 Strand

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Zinc Galvanized
Specification Met
MIL-DTL-87161
Standard Construction
1x7 Strand
Material Type
Steel
Coated OD
[ N/A ]  inches
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 18 hrs 28 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Bare OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-2 of 2
1/32" 250 ft 185 lbs B0013HEJWO yes $2.91 Buy Options
3/64" 250 ft 375 lbs B0013HJY6K yes $3.98 Buy Options

Key Features

  • Galvanized steel is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance
  • Galvanized steel remains ductile over long work periods, and usually has a higher breaking strength than stainless steel
  • 1x7 strand core is a single-strand construction that has one strand of wire rope with seven wires in each strand, formed helically around a strand core
  • 1x7 strand core is a common type that offers some abrasion resistance for ease of operation
  • Can be used in both large and small diameters for a wide range of applications

Product Description

Galvanized steel wire rope with 1x7 standard construction is commonly used in large diameters in guy wire for bracing and stability, and for messenger support (1/8 inch and above), and electrical strand applications. In smaller diameters, it is used as fishing leaders and line. Galvanized steel wire rope is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance. This strong material remains ductile over long work periods, and has a higher breaking strength than stainless steel. 1x7 strand core is a single-strand construction that has one strand of wire rope with seven wires in each strand, formed helically around a strand core. 1x7 strand core is a common type that offers some abrasion resistance for ease of operation. This wire rope can be used in both large and small diameters for a wide range of applications.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
