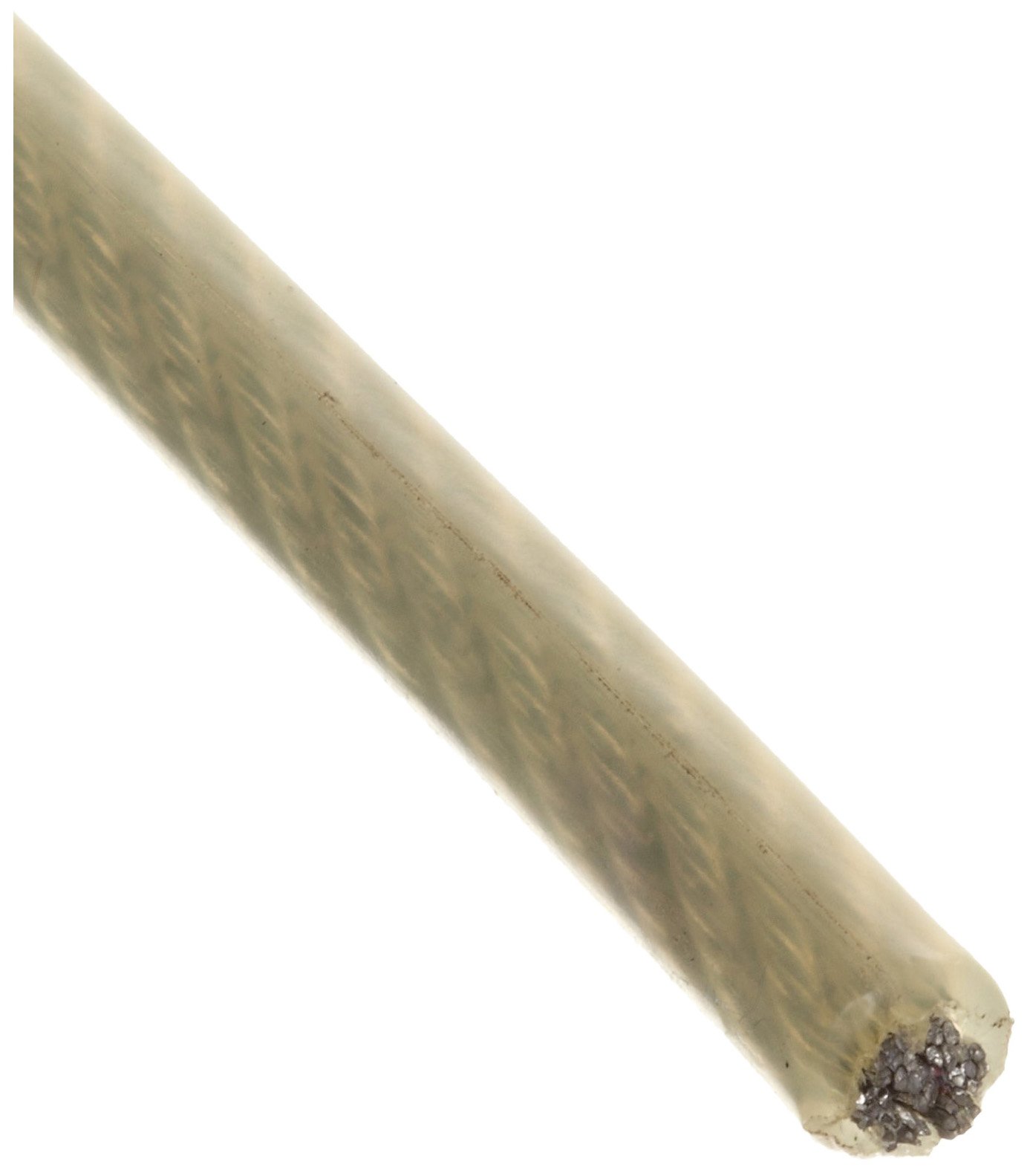

Loos Galvanized Steel Wire Rope, Nylon Coated, 7x7 Strand Core, Natural

Be the first to review this item

Product Specifications
Number of Items
1
Exterior Finish
Nylon Coated
Standard Construction
7x7 Strand Core
Material Type
Steel
Color Name
Natural
UNSPSC Code
31150000
Brand Name
Loos & Co.
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 15 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-10 of 10
Bare OD Coated OD Length Breaking Strength ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-10 of 10
3/64" 1/16" 50 ft 270 lbs B0013HID4Y 44 $3.63 Buy Options
1/16" 3/32" 25 ft 480 lbs B0013HGMDI 5 $4.72 Buy Options
3/32" 3/16" 25 ft 920 lbs B0013HJY3S 16 $13.27 Buy Options
3/32" 5/32" 50 ft 920 lbs B0013HJY2Y 1 $21.76 Buy Options
3/32" 3/16" 100 ft 920 lbs B0013HEK0U 2 $40.74 Buy Options
3/32" 1/8" 50 ft 920 lbs B0013HIDBC 12 $5.77 Buy Options
3/32" 1/8" 25 ft 920 lbs B0013HID9Y 25 $4.82 Buy Options
3/32" 5/32" 25 ft 920 lbs B0013HICX6 21 $10.78 Buy Options
3/32" 5/32" 100 ft 920 lbs B0013HICYU 6 $20.68 Buy Options
3/32" 1/8" 100 ft 920 lbs B0013HCFGQ 2 $29.07 Buy Options

Key Features

  • Natural-colored wire rope for ease of recognition
  • Galvanized steel is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance
  • Galvanized steel remains ductile over long work periods, and usually has a higher breaking strength than stainless steel
  • Nylon coating has excellent abrasion-resistance, and resists crushing and cracking
  • 7x7 strand core is stronger, but less flexible, than 6x19 and 6x36 class constructions

Product Description

Galvanized steel nylon-coated wire rope with 7x7 standard construction is commonly used in pulleys, and in aircraft and automotive controls. This wire rope has a natural hue for ease of recognition. Galvanized steel wire rope is coated with a thin layer of zinc that protects underlying material from corrosion and provides rust resistance. This strong material remains ductile over long work periods, and has a higher breaking strength than stainless steel. A nylon coating is very strong, lightweight, and flexible, has excellent abrasion-resistance, and resists crushing and cracking. 7x7 strand core has seven strands of wire rope with seven wires in each strand formed helically around a strand core. 7x7 strand core is stronger, but less flexible than 6x19 and 6x36 class constructions.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
