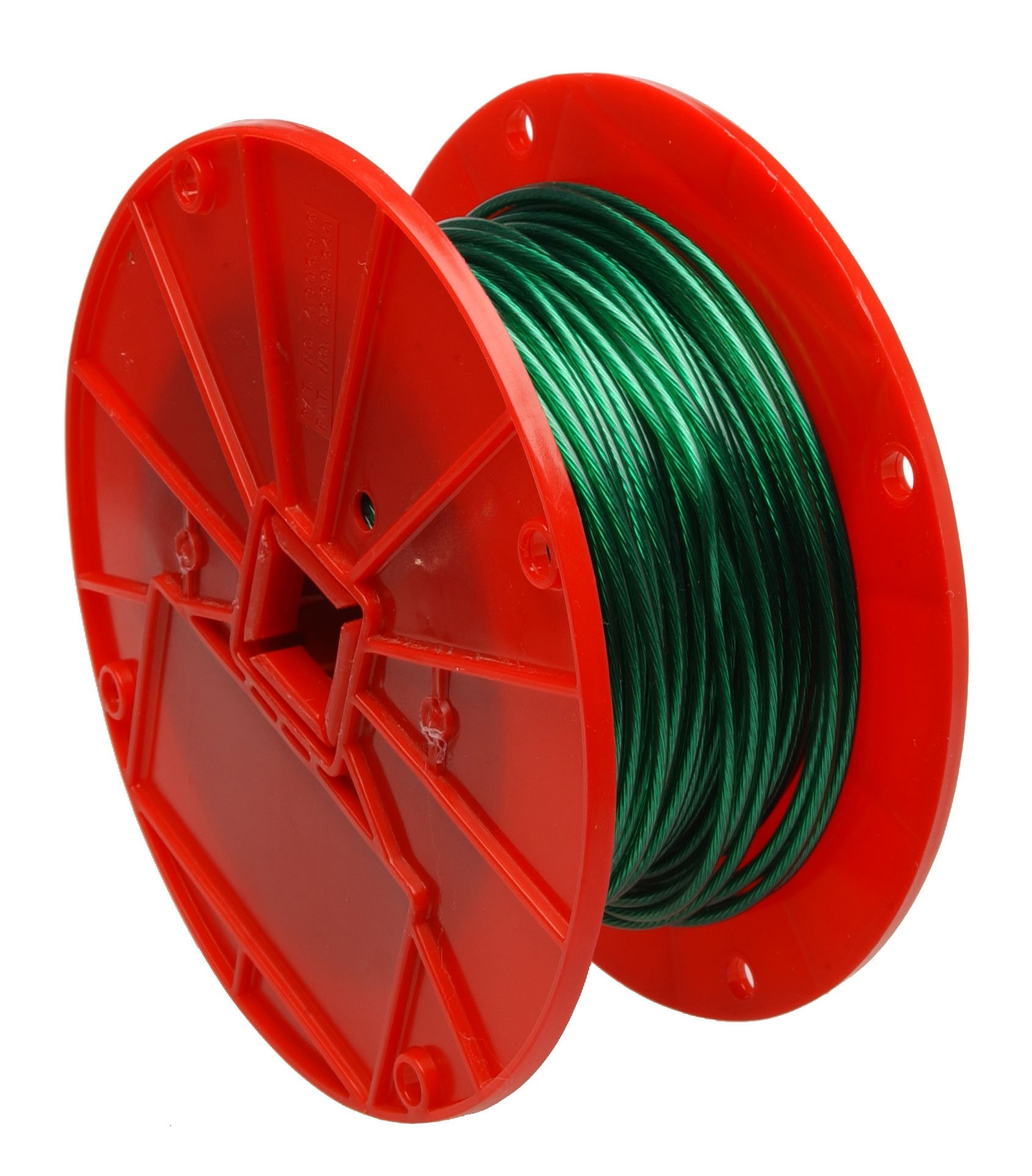

Galvanized Steel Wire Rope on Reel, Vinyl Coated, 1x7 Strand, Green, 1/16" Bare OD, 1/8" Coated OD, 250' Length, 28 lbs Breaking Strength

Be the first to review this item

ASIN B001MSCVRO

Specifications for this item
Part Number
7000197
Item Weight
4.15 pounds
Brand Name
Small Parts
Standard Construction
1x7 Strand
Number of Items
1
Material Type
Steel
Color Name
Green
Outside Diameter
1/8  inches
UPC
020418189456
Outside Diameter
1/16  inches
EAN
0020418189456
Exterior Finish
Vinyl Coated
Breaking Strength
28  pounds
UNSPSC Code
31150000
Overall Length
250  feet

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Vinyl-coated wire rope for use as clotheslines, guy lines, and in lawn and garden applications; packaged on a reel for storage and dispensing
  • Galvanized steel usually has a higher breaking strength than stainless steel and is coated with a thin layer of zinc that protects it from corrosion and provides rust resistance

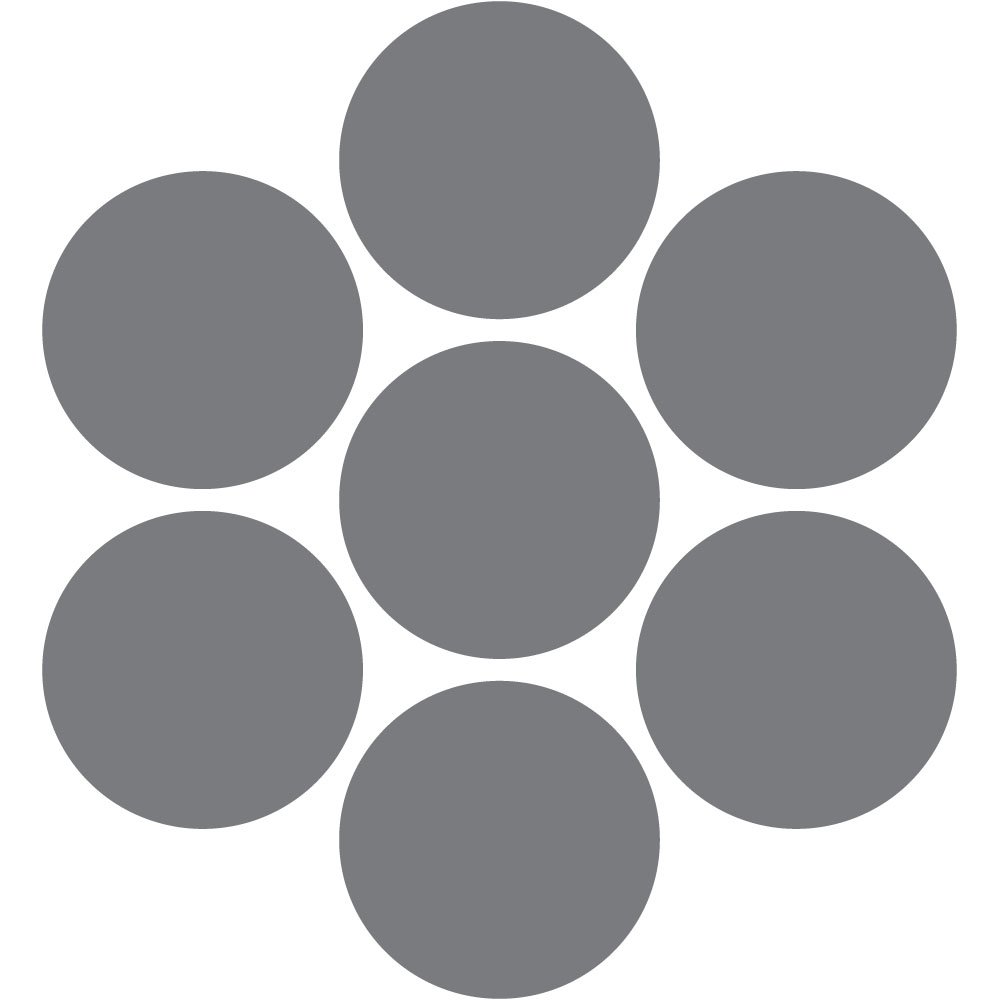

  • One strand of wire rope with seven wires in each strand, formed helically around a strand core for resistance to abrasion
  • Measures 1/16" in diameter (1/8" with vinyl coating) and 250' in length, and has a breaking strength of 28 lb.
  • Vinyl coating helps resist abrasion and weathering

Package Details

Shipping Weight: 4.6 pounds
Package Size: 8.2 x 8.1 x 4.3 inches

Product Description

 This vinyl-coated wire rope is for use as clotheslines, guy lines, and in lawn and garden applications, and is packaged on a reel for storage and dispensing. It is made of galvanized steel, which usually has a higher breaking strength than stainless steel and is coated with a thin layer of zinc that protects it from corrosion and provides rust resistance. Its 1 x 7 strand construction has one strand of wire rope with seven wires in each strand, formed helically around a strand core for resistance to abrasion. It measures 1/16" in diameter (1/8" with vinyl coating) and 250' in length, and has a breaking strength of 28 lb. Its vinyl coating helps resist abrasion and weathering.

Wire rope, also called wire cable, is an assembly of wire strands formed helically around a central core. It is used for pulling, lifting, rigging, hoisting, and motion-control applications most commonly found in the manufacturing, marine, oil, mining, fiber-optics, aircraft, automotive accessory, and construction industries. A combination of characteristics including material, finish, construction, diameter, length, and breaking strength combines to give each rope its performance ability. Wire rope materials are selected for properties such as strength, elasticity, conductivity, and chemical- and weather-resistance. For strength purposes, most wire rope is made of bright (uncoated or bare) wire. However, it is also produced in a variety of finishes, such as polypropylene (PE), vinyl (PVC), or nylon. These coatings can increase overall durability and strength, and allow for specific use. The breaking strength for wire rope is the strength at which new wire rope will fail under a stationary load. Breaking strength is not considered safe working load (SWL) limit.
