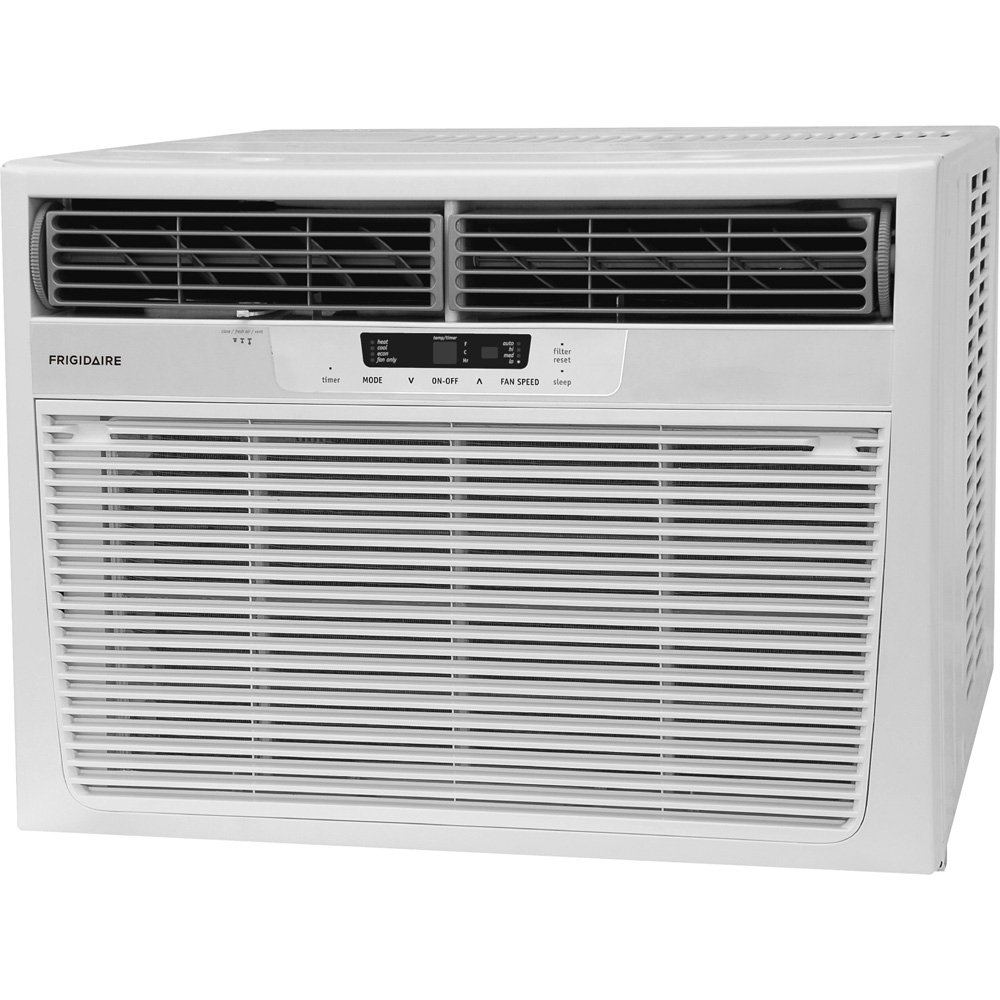

Frigidaire FRA18EMU2 18,500 BTU Window-Mounted Median Air Conditioner with 16,000 BTU Supplemental Heat (230 volts)

Click for larger image and other views

How can we improve our images or Product Specifications?

Frigidaire FRA18EMU2 18,500 BTU Window-Mounted Median Air Conditioner with 16,000 BTU Supplemental Heat (230 volts)

Be the first to review this item

ASIN B004UL816A

Specifications for this item

Brand Name: Frigidaire
Catalog Number: FRA18EMU2
Color Name: White

EAN: 0012505275470
Item Size: 25.37 x 23.63 x 17.85 inches
UPC: 012505275470

List price:: $599.99
Price:: $549.00
You save:: $50.99 (8%)
Quantity:

In Stock (1130) Usually ships in 24 hours.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

Key Features

Window-mounted installation (Easy-to-use installation kit included)
Special 230V electrical outlet required (Unit will not work with a standard 115V outlet)
18,500 BTU cooling capacity / 16,000 BTU supplemental heating capacity
Supplemental heat provides you with an additional heat source when needed
Cools rooms up to 1,170 sq. ft. with up to 5.5 pints per hour dehumidification

Package Details

Shipping Weight: 124 pounds
Package Size: 20 x 20 x 15 inches

Product Description

Frigidaire Heavy-Duty Window Air Conditioner

Frigidaire's FRA18EMU2 18,500 BTU 230-Volt Window-Mounted Median Air Conditioner with 16,000 BTU Supplemental Heat is perfect for rooms up to 1,170 square feet. In addition to cooling, this versatile unit also offers a supplemental heat capability, providing you with an additional heat source when needed. It quickly cools the room on hot days while the quiet operation keeps you comfortable without keeping you awake. Features include electronic controls, full-function remote control, 8-way air direction control and multiple speeds. Plus, the fresh air vent and exhaust control removes odors and freshens the air while the antibacterial mesh filter cleans the air by removing harmful bacteria and airborne particles for a cool, comfortable environment. This unit requires a special 230V electrical outlet and will not operate with a standard 115V household electrical outlet.

ENERGY EFFICIENT

This Energy Star unit has an Energy Efficiency Ratio of 9.7 and is sure to provide you with savings, along with convenient, cool comfort. In Energy-saver mode the fan continues to run for 1 minute after the compressor shuts off. The fan then cycles on for 20 seconds at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on. The low power operation and Energy Saver mode help to conserve energy and save you money. This unit requires a 230V electrical outlet and will not work with a standard 115V outlet.

Frigidaire FRA18EMU2 18,500 BTU Window-Mounted Median Air Conditioner with 16,000 BTU Supplemental Heat

PRODUCT FEATURES

Window-Mounted Median Design

• Median air conditioner with supplemental heat pump for window-mounted installation
• Special 230V electrical outlet required (Unit will not work with a standard 115V outlet)
• Supplemental heat pump provides an additional heat source to your main heat source when outdoor temperatures are above 45°F
• Low power start-up conserves energy and saves you money
• Quiet operation keeps you comfortable without keeping you awake
• Effortless restart automatically resumes operating at its previous settings when power is restored
• Fresh air vent and exhaust control removes odors and freshens the air
• Tilt-out antibacterial mesh filter with clean filter alert reduces bacteria and airborne particles

Ready-Select Controls

• Ready-select electronic controls allow you to easily select options with the touch of a button
• 18,500 BTU cooling capacity / 16,000 BTU supplemental heating capacity
• For rooms up to 1,170 sq. ft.
• Dehumidification up to 5.5 pints per hour
• 3 cooling speeds, 3 fan speeds and 3 heat speeds
• 8-way comfort control design allows you to easily control the direction of the air wherever the unit is mounted

Temperature Sensing Remote Control

• Full-function remote control allows you to precisely control the temperature and fan speed from across the room
• 24-hour on/off timer cools on your schedule
• Auto cool mode allows the fan to adjust speeds as the room temperature changes
• Energy saver mode conserves energy and saves you money
• Sleep mode gradually increases room temperature after being activated

COMPARISON CHART


Model Name	Median	Median	Median	Heavy Duty	Heavy Duty	Heavy Duty	Heavy Duty
Base Model	FRA156MT1	FRA186MT2	FRA18EMU2	FRA226ST2	FRA256SV2	FRA25ESU2	FRA296ST2
Dimensions
Height / Width / Depth	17.85"/23.63"/25.37"	17.85"/23.63"/25.37"	17.85"/23.63"/25.37"	18.6"/26.5"/26.6"	18.6"/26.5"/26.6"	18.6"/26.5"/26.6"	18.6"/26.5"/26.6"
Performance
BTU (Cool)	15100	18500/18200	18500/18200	22000/21600	25000/24700	25000/24700	28500/28000
BTU (Heat)	-	-	16000/13000	-	-	16000/13000	-
Dehumidification (Pints/Hour)	3.8	5.5	5.5	7.2	8.0	8.0	9.5
Cool Area (Sq. Ft.)	900	1170	1170	1435	1672	1672	1960
Energy Efficiency Ratio	10.7	10.7	9.7	9.4	9.4	9.4	8.5
Electrical
Voltz / Hertz	115V/60Hz	230/208/60Hz	230/208/60Hz	230/208/60Hz	230/208/60Hz	230/208/60Hz	230/208/60Hz
Amps (Cool)	12.0	7.7/8.3	8.4/9.1	10.5/11.3	12.0/12.8	12.0/12.8	14.8/16.0
Amps (Heat)	-	-	22.2/20.0	-	-	22.5/20.0	-
Watts (Heat)	-	-	4900/4000	-	-	4900/4000	-
Plug Type (NEMA)	LCDI, 5-15P	LCDI, 6-15P	LCDI, 6-30P	LCDI, 6-15P	LCDI, 6-20P	LCDI, 6-30P	LCDI, 6-30P
Features
Fan Speed (Cool/Fan/Heat)	3/3/-	3/3/-	3/3/3	3/3/-	3/3/-	3/3/3	3/3/-
Low Voltage Start-Up	✓	✓	✓	✓	✓	✓	✓
Auto Cool Function	✓	✓	✓	✓	✓	✓	✓
Energy Save	✓	✓	✓	✓	✓	✓	✓
Sleep Mode	✓	✓	✓	✓	✓	✓	✓
Filter Check	✓	✓	✓	✓	✓	✓	✓
24 Hour On/Off Timer	✓	✓	✓	✓	✓	✓	✓
Clean Air Ionizer	✓	✓	✓	✓	✓	✓	✓
Fresh Air	✓	✓	✓	✓	✓	✓	✓
Exhaust Vent	✓	✓	✓	✓	✓	✓	✓
Vent Closed	✓	✓	✓	✓	✓	✓	✓
Anti-Bacterial Mesh Filter	✓	✓	✓	✓	✓	✓	✓
Rear Grill	✓	✓	✓	✓	✓	✓	✓
Slide-Out Chassis	✓	✓	✓	✓	✓	✓	✓
Cabinet Louvres	✓	✓	✓	✓	✓	✓	✓
Window Mounting Kit	✓	✓	✓	✓	✓	✓	✓
Certifications
Energy Star®	✓	✓	-	✓	✓	-	-
Specifications
Window Height (Min./Max.)	18-1/2"	18-1/2"	18-1/2"	19-1/2"	19-1/2"	19-1/2"	19-1/2"
Window Width (Min./Max.)	26-1/2" / 40-1/2"	26-1/2" / 40-1/2"	26-1/2" / 40-1/2"	31" / 42"	31" / 42"	31" / 42"	31" / 42"
Maximum Wall Thickness	8"	8"	8"	10""	10"	10"	10"
Wall Cut-Out Width	23.9"	23.9"	23.9"	26.75"	26.75"	26.75"	26.75"
Wall Cut-Out Height	18"	18"	18"	18.9"	18.9"	18.9"	18.9"
Product Weight	60 lbs	63 lbs	66 lbs	66 lbs	69 lbs	73 lbs	73 lbs
Shipping Weight (Approx.)	69 lbs	73 lbs	77 lbs	77 lbs	80 lbs	82 lbs	82 lbs

*Specifications subject to change without notice

AIR CONDITIONING ROOM SIZING GUIDE

OTHER SPECIFICATIONS

Area To Be Cooled (square feet)	Capacity Needed (BTUs per hour)
100 up to 150	5,000
150 up to 250	6,000
250 up to 300	7,000
300 up to 350	8,000
350 up to 400	9,000
400 up to 450	10,000
450 up to 550	12,000
550 up to 700	14,000
700 up to 1000	18,000
1000 up to 1200	21,000
1200 up to 1400	23,000
1400 up to 1500	24,000
1500 up to 2000	30,000
2000 up to 2500	34,000

Performance Certification	AHAM
Safety	UL/CUL (SA11087)
Filter Access	Slide-Out
Air Direction Control	8-Way
Air Discharge	Top Full-Width
Refrigeration	R410a
Controls	Electronic
Control Panel Location	Center
Remote Control	Full Function & Remote T'Stat
Length of Power Cord	5' (6')
