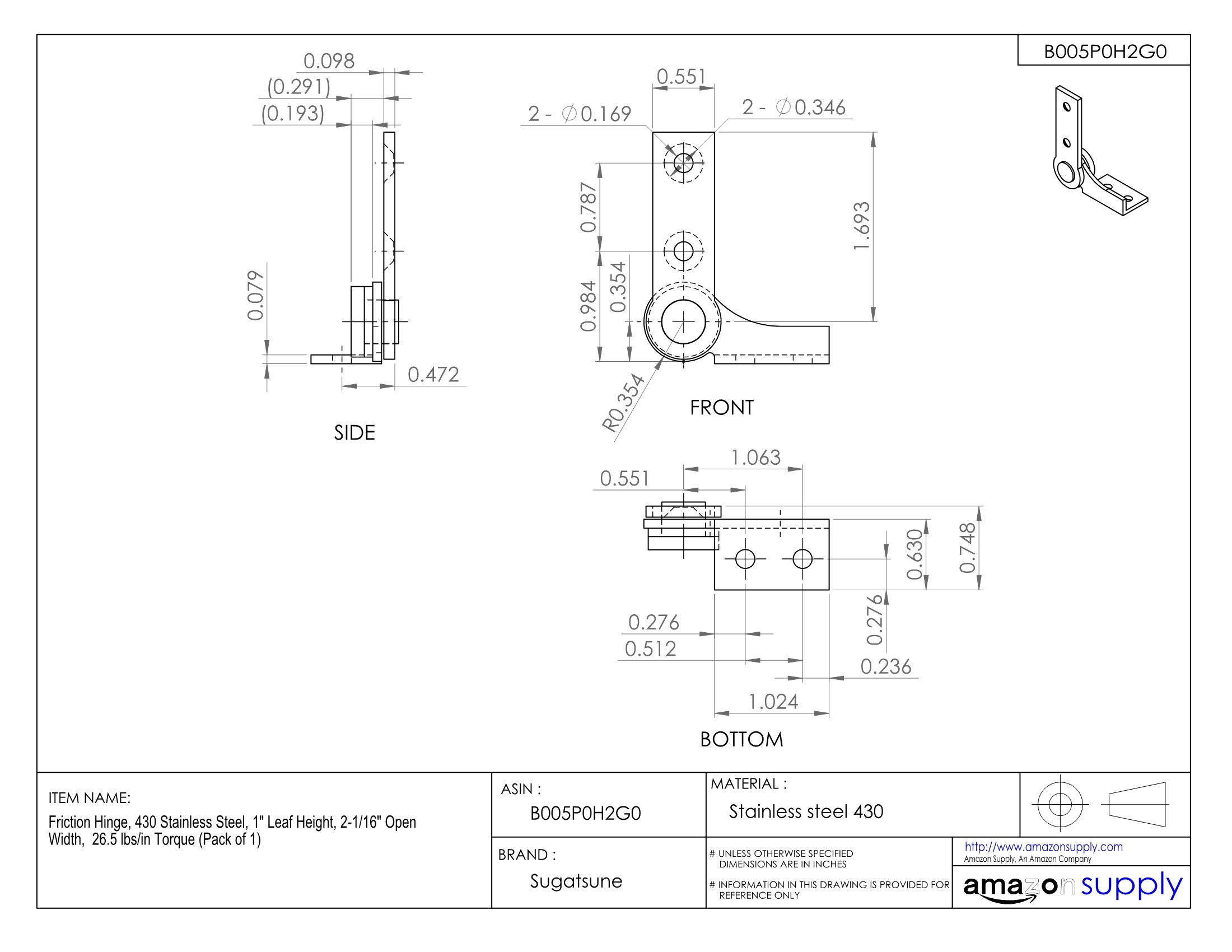

Friction Hinge, 430 Stainless Steel, 1" Leaf Height, 2-1/16" Open Width, 26.5 lbs/in Torque (Pack of 1)

Be the first to review this item

ASIN B005P0H2G0

Specifications for this item
Pin Hole Diameter
5/16  inches
Number of Items
1
Overall Height
1  inches
Overall Width
2-1/16  inches
Material Type
Stainless Steel
Part Number
HG-TB30R
Thickness
0.098  inches
Brand Name
Sugatsune
Size Name
26.5 in-lbs
Grade
430
UNSPSC Code
31162403
Mounting Hole Diameter
4.6  millimeters

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • right hand
  • Pin material: 303 Stainless Steel
  • Number of holes: 4
  • With hole: Yes
  • Body material: 430 stainless steel
  • Screw size: 4.3mm, 4.6mm, 8.8mm

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2 x 2 x 0.5 inches

Product Description

Free stop hinge with friction torque. Consistent torque through out working range. Opening angle 360 degree. Applications: Ideal for indoor applications. LCD monitors, monitoring cameras, displays etc. Spring washer material steel. Shaft material 303 stainless steel. Washer material 430 stainless steel.
