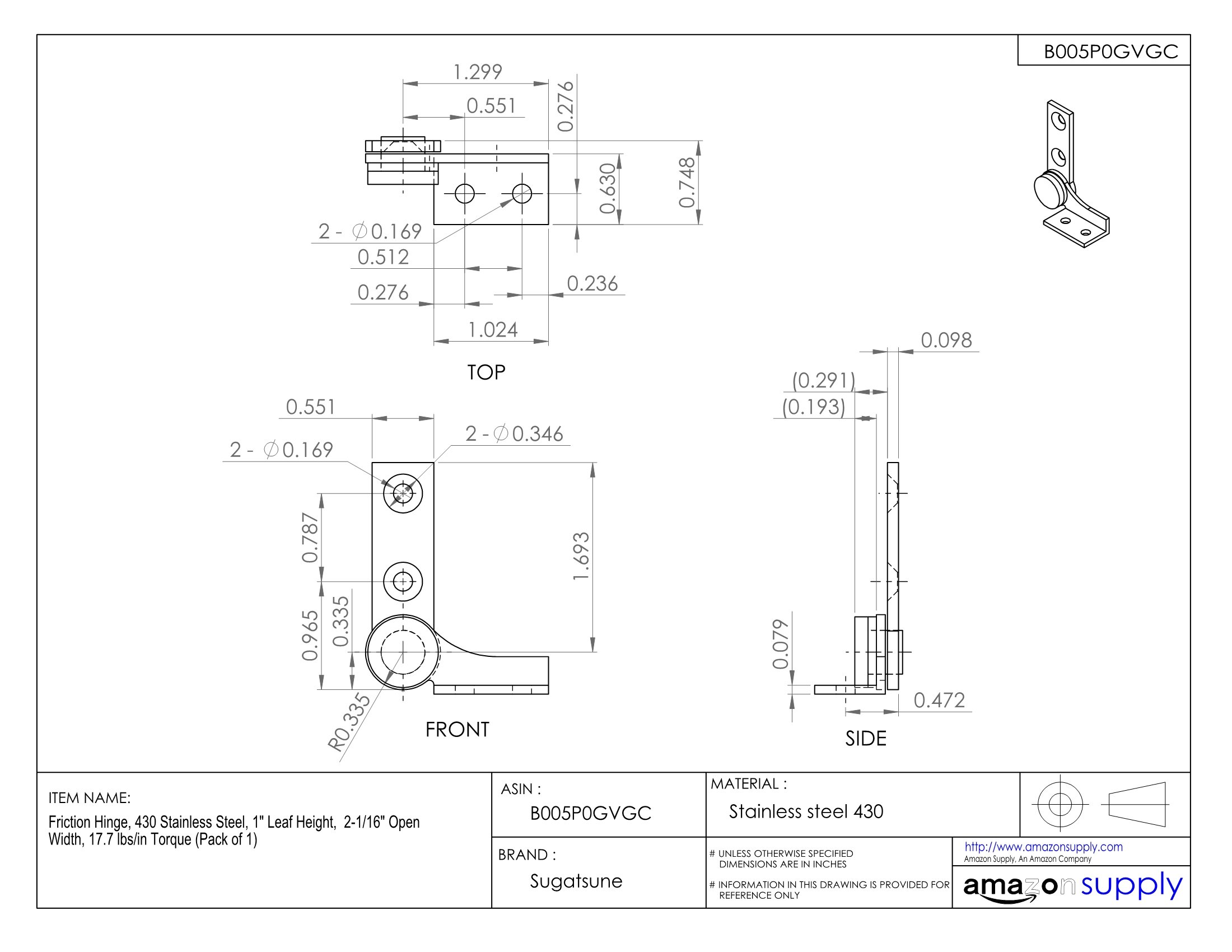

3D CAD Models (Which File Type?)
Friction Hinge, 430 Stainless Steel, 1" Leaf Height, 2-1/16" Open Width, 17.7 lbs/in Torque (Pack of 1)
Be the first to review this item
ASIN B005P0GVGC
Specifications for this item
- Brand Name
- Sugatsune
- Material Type
- Stainless Steel 430
- Mounting Hole Diameter
- 4.6 millimeters
- Number of Items
- 1
- Overall Height
- 1 inches
- Overall Width
- 2-1/16 inches
- Part Number
- HG-TB20L
- Pin Hole Diameter
- 5/16 inches
- Size Name
- 17.7 in-lbs
- Thickness
- 0.098 inches
This item is no longer available
This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)
Key Features
- left hand
- Pin material: 303 Stainless Steel
- Number of holes: 4
- With hole: Yes
- Body material: 430 stainless steel
- Screw size: 4.3mm, 4.6mm, 8.8mm
Package Details
Shipping Weight:
0.05 pounds
Package Size:
5.3 x 2 x 0.2 inches
Product Description
Free stop hinge with friction torque. Consistent torque through out working range. Opening angle 360 degree. Applications: Ideal for indoor applications. LCD monitors, monitoring cameras, displays etc. Spring washer material steel. Shaft material 303 stainless steel. Washer material 430 stainless steel.
