How can we improve our images or Product Specifications?

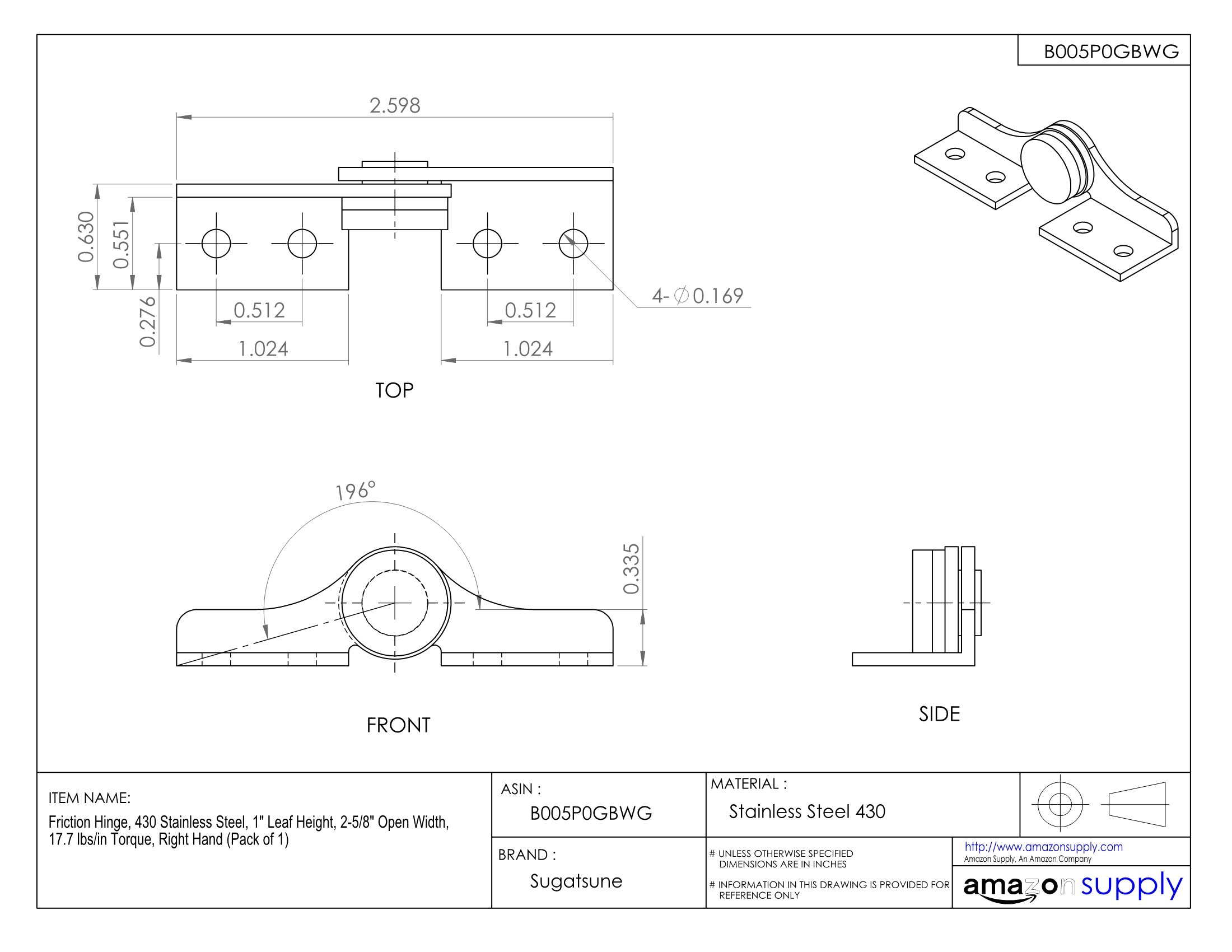

3D CAD Models (Which File Type?)

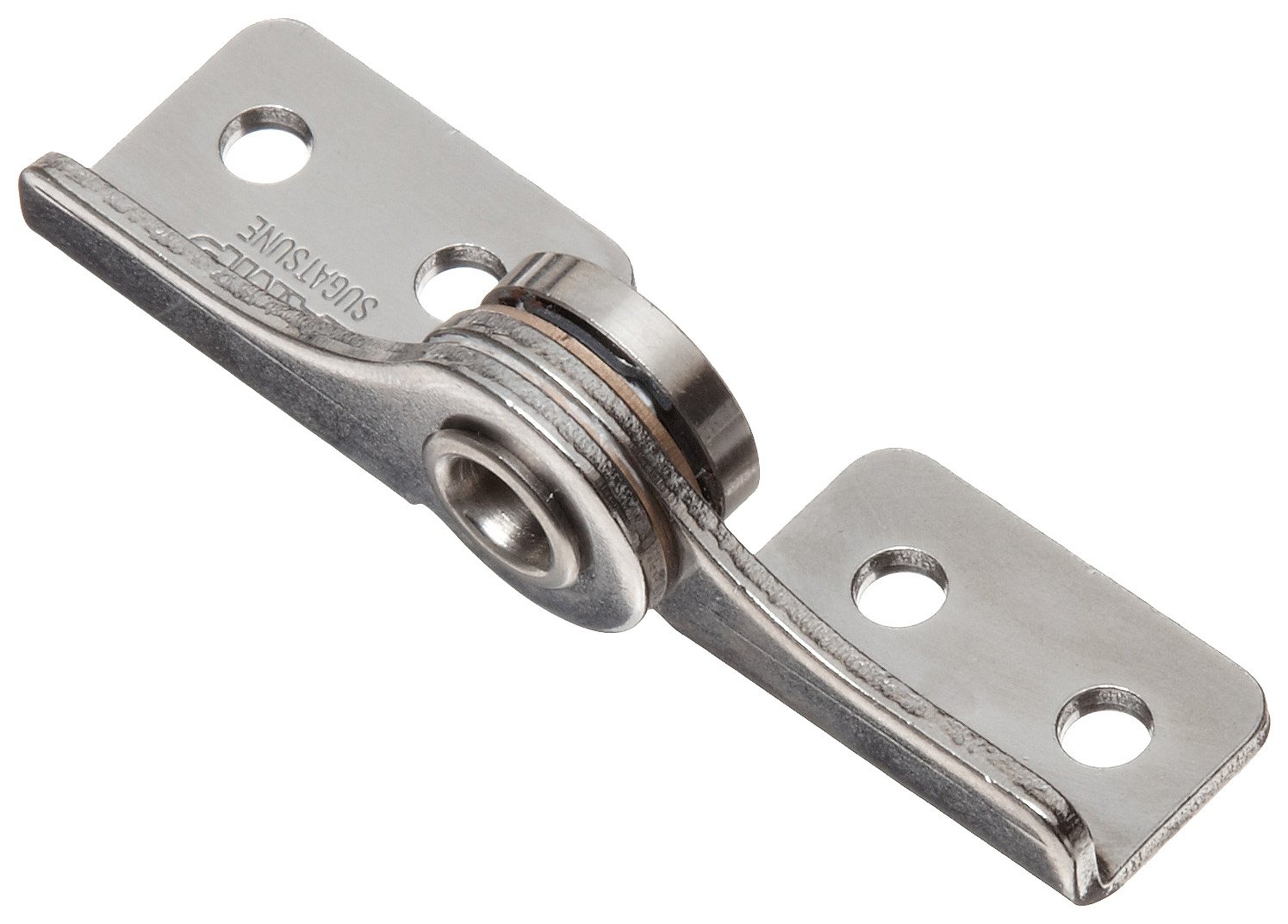

Friction Hinge, 430 Stainless Steel, 1" Leaf Height, 2-5/8" Open Width, 17.7 lbs/in Torque, Right Hand (Pack of 1)
Be the first to review this item
ASIN B005P0GBWG
Specifications for this item
- Brand Name
- Sugatsune
- Material Type
- Stainless Steel 430
- Mounting Hole Diameter
- 4.3 millimeters
- Number of Items
- 1
- Overall Height
- 1 inches
- Overall Width
- 2-5/8 inches
- Part Number
- HG-TA20R
- Pin Hole Diameter
- 9/16 inches
- Size Name
- 17.7 in-lbs
- Thickness
- 0.0787 inches
Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply)
(Details)
Key Features
- right hand
- Pin material: 303 Stainless Steel
- Number of holes: 4
- With hole: Yes
- Body material: 430 stainless steel
- Screw size: 4.3mm
Package Details
Shipping Weight:
0.05 pounds
Package Size:
1.1 x 0.3 x 0.3 inches
Product Description
Free stop hinge with friction torque. Consistent torque through out working range. Opening angle 0 degree - 140 degree. Applications: ideal for indoor applications. LCD monitors, monitoring cameras, displays etc. Spring washer material steel. Shaft material 303 stainless steel. Washer material 430 stainless steel. Range of motion: 269 degree.
