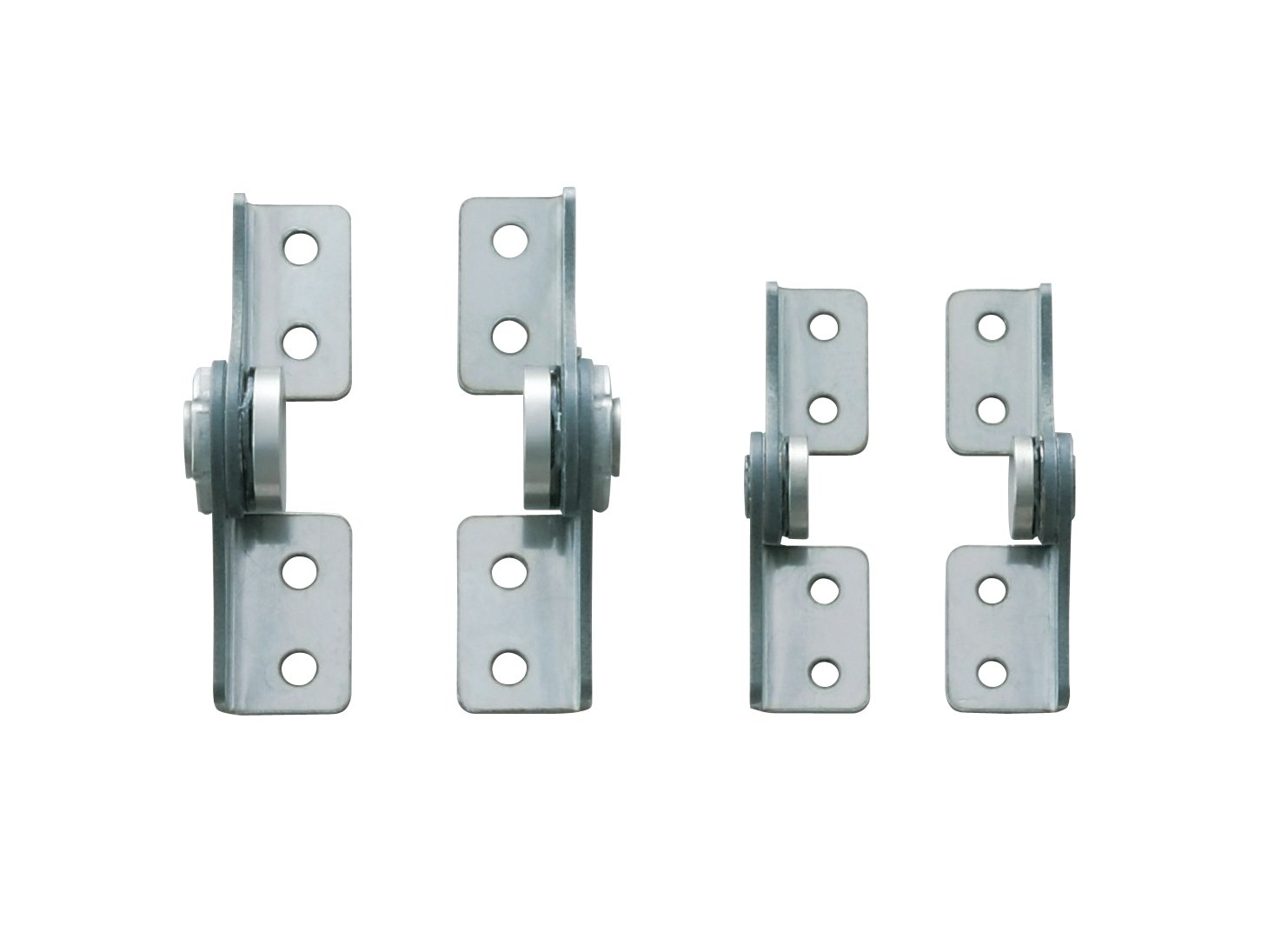

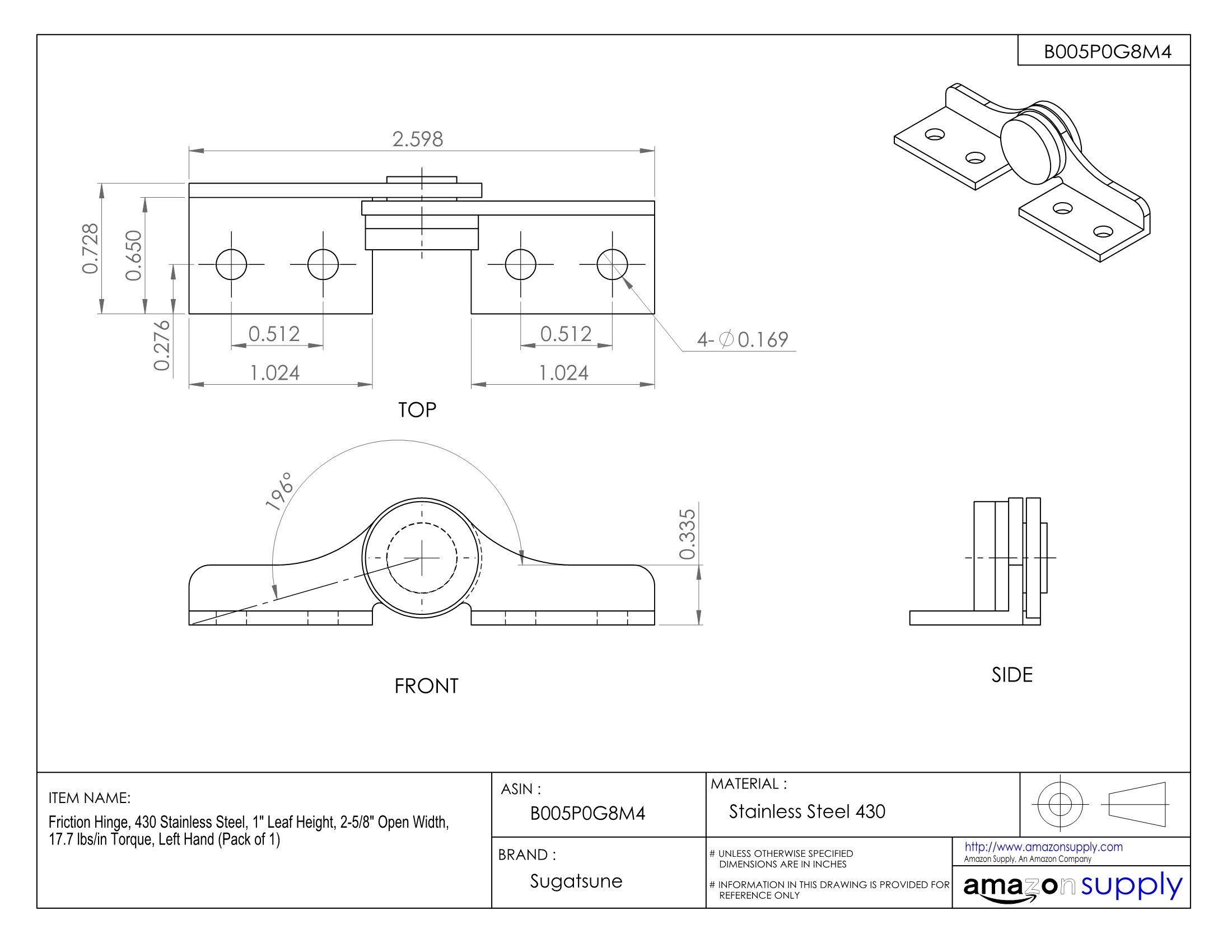

Friction Hinge, 430 Stainless Steel, 1" Leaf Height, 2-5/8" Open Width, 17.7 lbs/in Torque, Left Hand (Pack of 1)

Be the first to review this item


Specifications for this item
Pin Hole Diameter
9/16  inches
Number of Items
Overall Height
1  inches
Overall Width
2-5/8  inches
Material Type
Stainless Steel
Part Number
0.0787  inches
Brand Name
LAMP by Sugatsune
Size Name
17.7 in-lbs
Mounting Hole Diameter
4.3  millimeters

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 20? Order in-stock items in the next 11 hrs 21 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • left hand
  • Pin material: 303 Stainless Steel
  • Number of holes: 4
  • With hole: Yes
  • Body material: 430 stainless steel
  • Screw size: 4.3mm

Package Details

Shipping Weight: 0.05 pounds
Package Size: 2 x 1 x 0.4 inches

Product Description

Free stop hinge with friction torque. Consistent torque through out working range. Opening angle 0 degree - 140 degree. Applications: ideal for indoor applications. LCD monitors, monitoring cameras, displays etc. Spring washer material steel. Shaft material 303 stainless steel. Washer material 430 stainless steel. Range of motion: 269 degree.
