Package Size: 26.3 x 13.6 x 12.6 inches

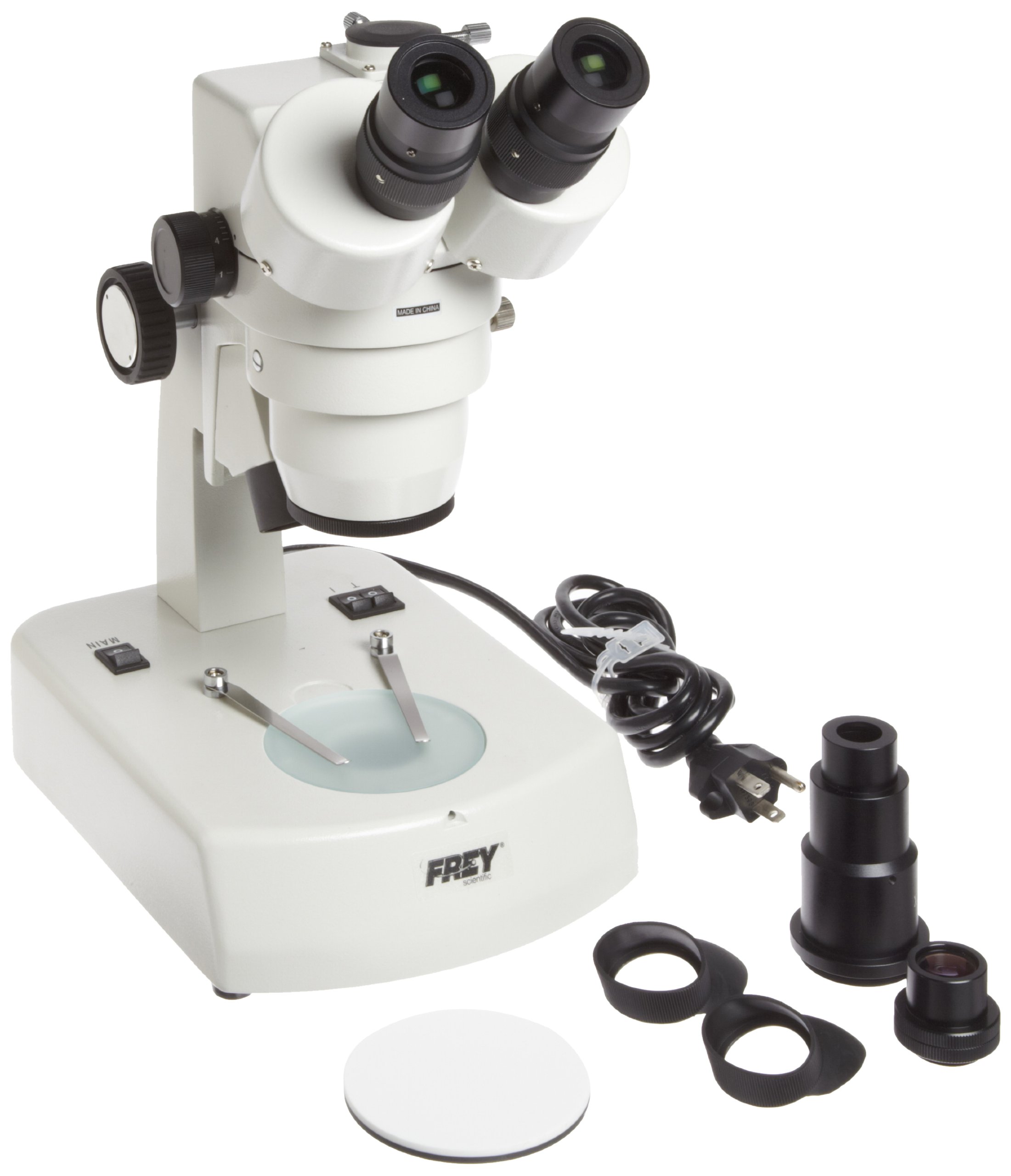

Frey Scientific stereo microscope creates three-dimensional images for inspection and dissection, and has a trinocular viewing head for use by a second viewer or with a camera connection (camera sold separately). The microscope’s head has a 45-degree vertical inclination, with a 360-degree rotation capability to ease eye strain and provide a more comprehensive view. The head has 55.0 to 75.0mm interpupillary adjustment for individual eye spacing, and paired 10.0x widefield eyepieces with 10.0 to 40.0x zoom achromatic objectives to provide a range of magnification and color correction of magnified images. Each eyepiece has diopter adjustment capabilities, with high resolution lenses that are parfocalled and parcentered to keep the specimen in focus and centered when the magnification is changed. Each is also equipped to accept a 23.0mm reticle. Zoom control knobs with a slip clutch and rack-and-pinion gearing provide sharp focus and help prevent damage to slides or lenses. The microscope has upper 12.0V 15.0 watt three-way halogen illumination for bright, hot lighting, and lower 110.0V 5.0 watt fluorescent light for cool operation, with base-mounted light controls for upper or lower only, or dual illumination. The stage includes a frosted glass plate to allow light to pass through, and a reversible black and white plate for contrast with specimens. The stage also has locked-on clips to secure slides, and a blue filter for transmitted light. The microscope has an all-metal frame with a gray enamel finish for durability, and a fixed-arm stand for stability. The microscope measures 340.0 x 171.0 x 242.0mm/13-3/8 x 6-3/4 x 9-1/2 inches (H x W x D). (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) The microscope has a three-wire grounded cord and plug, and includes a 2.0X SLR photo adapter and a 0.4X “C” mount, as well as rubber eye shields, instructions for use, and a vinyl dust cover for storage. Vinyl resists oil, has low moisture absorption, and is non-conductive. The microscope is suitable for elementary and middle grade levels.
Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
|Objective lenses||10.0 to 40.0x zoom|
|Viewing configuration||Trinocular viewing head|
|Focus||Zoom control knobs|
|Illumination||Upper 12.0V 15.0 watt three-way halogen and lower 110.0V 5.0 watt fluorescent light, with base-mounted light controls|
|Stage||Frosted glass and reversible black and white contrast plates|
|Gearing||Rack and pinion|
|Dimensions*||340.0 x 171.0 x 242.0mm/13-3/8 x 6-3/4 x 9-1/2 inches (H x W x D)|
|Certificates||ISO 9001:2000, ISO 14001:2001|
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Science education products incorporate applied math and science principles into classroom and homeschool-based projects. Teachers in pre-K, elementary, and secondary classrooms use science education kits and products alongside science, technology, engineering, and math (STEM) curriculum to demonstrate STEM concepts and real-world applications through hands-on activities. Science education projects include a broad range of activities, such as practical experiments in engineering, aeronautics, robotics, energy, chemistry, physics, biology, and geology.
School Specialty provides instructional materials and supplies under dozens of brands, among them Abilitations, Think Math, Delta Education, Frey Scientific, Neo/SCI, Childcraft, School Smart, and Speech Bin. The company, founded in 1959, is headquartered in Greenville, WI.
