Frey Scientific Advanced Zoom Stereo Microscope, Binocular Head, 10-40X Magnification

Be the first to review this item

ASIN B008C4PG5U

Specifications for this item
Number of Items
1
Part Number
501195
UPC
885634192617
Brand Name
Frey Scientific
EAN
0885634192617
UNSPSC Code
41111703

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 7 hrs 26 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Stereo microscope creates three-dimensional images for inspection and dissection
  • Binocular viewing head with 45-degree vertical inclination, and 360-degree rotation capability to ease eye strain, and provide a more comprehensive view
  • 10.0x widefield eyepiece, with 10.0 to 40.0x zoom achromatic objectives for range of magnification and color correction
  • Upper halogen illumination for bright, hot lighting, with lower fluorescent light for cool operation
  • 80.0mm stage with frosted glass plate to allow light to pass through, and reversible black and white plate for contrast with specimens

Package Details

Shipping Weight: 14.75 pounds
Package Size: 28.3 x 20.3 x 10.2 inches

Product Description

Frey Scientific stereo microscope creates three-dimensional images for inspection and dissection. The microscope has a binocular viewing head with a 45-degree vertical inclination, and 360-degree rotation capability to ease eye strain, and provide a more comprehensive view. The head has 55.0 to 75.0mm interpupillary adjustment for individual eye spacing, and paired 10.0x widefield eyepieces with 10.0 to 40.0x zoom achromatic objectives to provide a range of magnification and color correction of magnified images. Each eyepiece has diopter adjustment capabilities, with high resolution lenses that are parfocalled and parcentered to keep the specimen in focus and centered when the magnification is changed. Zoom control knobs with a slip clutch and rack-and-pinion gearing provide sharp focus, and help prevent damage to slides or lenses. The microscope has upper 12.0V 15.0 watt three-way halogen illumination for bright, hot lighting, and lower 110.0V 5.0 watt fluorescent light for cool operation, with base-mounted light controls for upper or lower only, or dual illumination. The stage includes a frosted glass plate to allow light to pass through, and a reversible black and white plate for contrast with specimens. The stage also has locked-on clips to secure slides, and a blue filter for transmitted light. The microscope has an all-metal frame with a gray enamel finish for durability, and a fixed-arm stand for stability. The microscope measures 340.0 x 171.0 x 242.0mm/13-3/8 x 6-3/4 x 9-1/2 inches (H x W x D). (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) The microscope has a three-wire grounded cord and plug, and includes rubber eye shields, instructions for use, and a vinyl dust cover for storage. Vinyl resists oil, has low moisture absorption, and is non-conductive. The microscope is suitable for elementary and middle grade levels.

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.

Specifications
Specifications
Eyepiece 10.0x widefield
Objective lenses 10.0 to 40.0x zoom
Viewing configuration Binocular viewing head
Focus Zoom control knobs
Illumination Upper 12.0V 15.0 watt three-way halogen and lower 110.0V 5.0 watt fluorescent light, with base-mounted light controls
Stage Frosted glass and reversible black and white contrast plates
Gearing Rack and pinion
Working distance 79.0mm
Dimensions* 340.0 x 171.0 x 242.0mm/13-3/8 x 6-3/4 x 9-1/2 inches (H x W x D)
Weight 5.3kg/11.7lb.
Certificates ISO 9001:2000, ISO 14001:2001

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Science education products incorporate applied math and science principles into classroom and homeschool-based projects. Teachers in pre-K, elementary, and secondary classrooms use science education kits and products alongside science, technology, engineering, and math (STEM) curriculum to demonstrate STEM concepts and real-world applications through hands-on activities. Science education projects include a broad range of activities, such as practical experiments in engineering, aeronautics, robotics, energy, chemistry, physics, biology, and geology.

School Specialty provides instructional materials and supplies under dozens of brands, among them Abilitations, Think Math, Delta Education, Frey Scientific, Neo/SCI, Childcraft, School Smart, and Speech Bin. The company, founded in 1959, is headquartered in Greenville, WI.

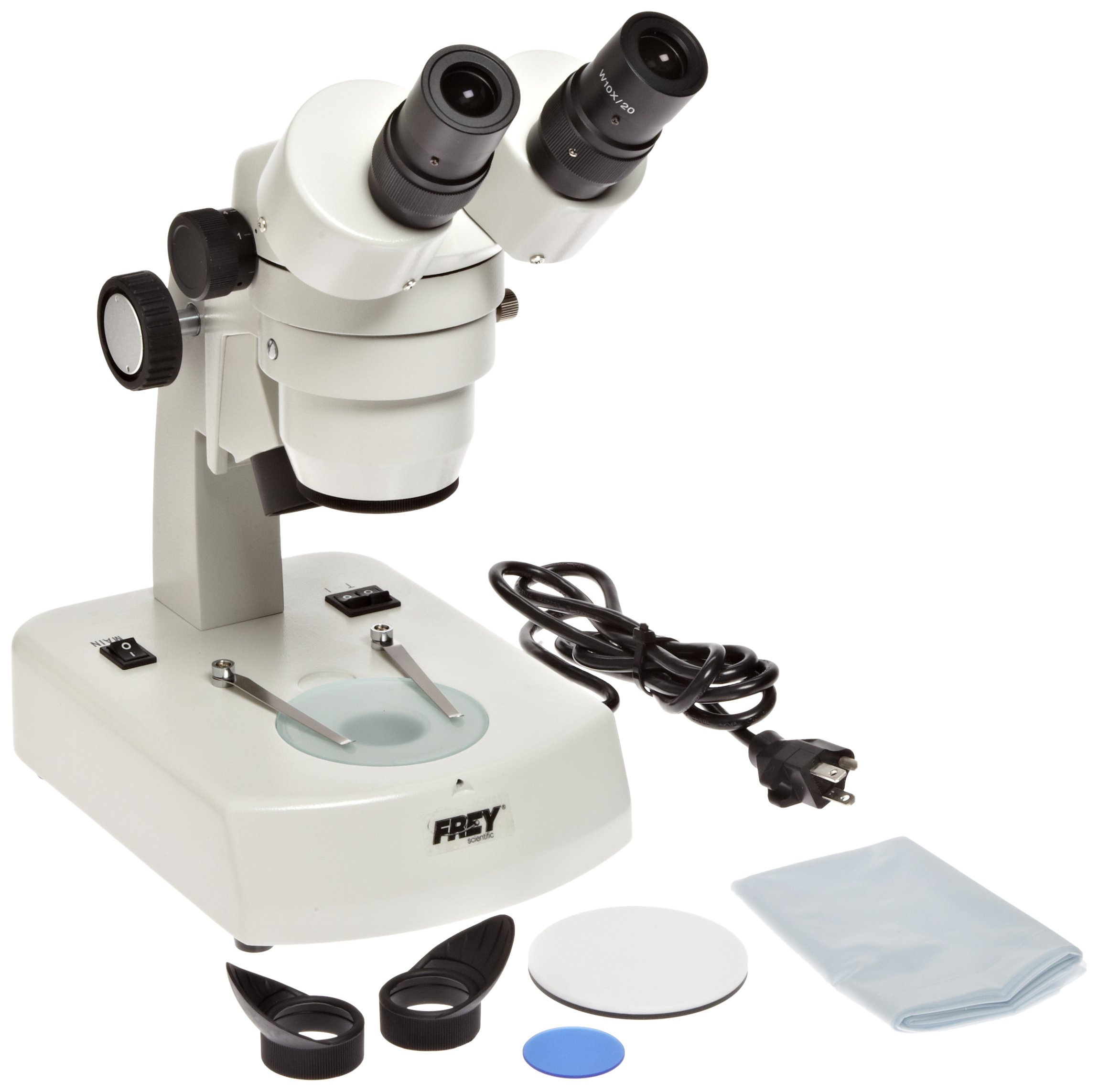

What’s in the Box?
  • Stereo microscope
  • Frosted glass plate
  • Reversible black and white plate
  • (2) rubber eyepieces
  • Instructions
  • Vinyl dust cover
