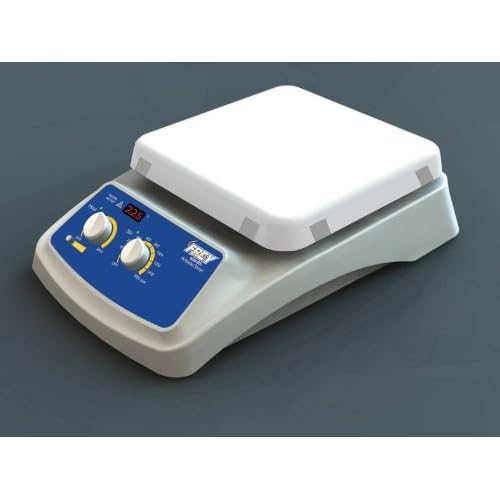

Frey Scientific 1324336 Advanced Ceramic Stirring Hot Plate, 7 x 7" Size

Be the first to review this item

ASIN B008C4PE34

Specifications for this item
Number of Items
1
Overall Width
7  inches
Part Number
1324336
UPC
885634215927
Brand Name
Frey Scientific
EAN
0885634215927
UNSPSC Code
41102406
Overall Length
7  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 15 hrs 41 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hot plate with one-piece ceramic top and microprocessor control for heating glassware and contents to between 5 to 500 degrees C and stirring between 60 to 1600rpm
  • Square seven-inch hot plate has a chemical-resistant, easy-to-clean, reflective white surface
  • Illuminated digital LED displays setpoint temperature, and recalls last set temperature after unit has been turned off
  • Built-in support rod holder with locking knob for instrument suspension
  • Rectangular, heat-resistant polymer body resists corrosion and chemical spills

Package Details

Shipping Weight: 10.95 pounds
Package Size: 20.6 x 15 x 6.1 inches

Product Description

The Frey Scientific 1324336 Advanced Ceramic Stirring Hot Plate has a one-piece ceramic top and a microprocessor control for heating glassware and contents to between 5 to 500 degrees C, stirring between 60 to 1600rpm, includes a seven-inch square hot plate with a chemical-resistant, easy-to-clean, reflective white surface, and has an illuminated LED digital display, a built-in support rod holder with locking knob, and a heat-resistant polymer body. Hot plates are used to heat glassware and contents in laboratories.

This hot plate is housed in a heat-resistant polymer body that stays cool to the touch and channels fluids away from internal components. A microprocessor precisely controls speeds, and a continuous duty motor provides consistent stirring at all speeds. An LED display with built-in memory recalls the last set temperature, and a temperature knob adjusts the setpoint. A ramping feature slowly increases speed for safety and enhanced coupling, avoids splashes, improves spin bar control, and provides low-end speed control. A caution indicator light illuminates when heat is turned on and remains on until the top plate cools down. Stir protection automatically shuts down the heater if the stirrer motor stops or fails. The built-in support rod holder with locking knob at rear holds a standard threaded support rod to suspend instrumentation such as clamps and probes. The hot plate comes with a 1.5" (3.8cm) polytetrafluoroethylene (PTFE) coated stir bar and a 92" (234cm) detachable, 3-wire cord and plug.

Specifications

Temperature range 5 to 500 degrees C
Temperature stability + or - 3 percent
Speed range 60 to 1600rpm
Speed stability + or - 2 percent
Maximum capacity 2500mL H2O
Top plate composition Ceramic
Body type Heat-resistant polymer
Power supply 120V 50/60 Hz
Top plate dimensions 7 x 7 inches (H x W)
Body dimensions 4.3 x 9.9 x 14.8 inches (H x W x D)
Weight 10.5lb.

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Researchers, professionals and hobbyists use hot plates to heat a variety of liquids and solutions in chemistry, food and beverage, biology, lab, and home applications. Hotplates can have either a digital or an analog display, and can show temperature range, or stirring speed. Hot plate surfaces are commonly made of ceramic-glass or stainless steel, and have coatings such as porcelain. They come in a variety of dimensions. Some units can work with stirrers that can be supported with clamps and rods.

Science education products incorporate applied math and science principles into classroom and homeschool-based projects. Teachers in pre-K, elementary, and secondary classrooms use science education kits and products alongside science, technology, engineering, and math (STEM) curriculum to demonstrate STEM concepts and real-world applications through hands-on activities. Science education projects include a broad range of activities, such as practical experiments in engineering, aeronautics, robotics, energy, chemistry, physics, biology, and geology.

School Specialty provides instructional materials and supplies under dozens of brands, among them Think Math, Delta Education, Frey Scientific, Childcraft, and School Smart. The company, founded in 1959, is headquartered in Greenville, WI.

What’s in the Box?

  • Hot plate
  • Stir bar
  • Electrical cord
  • Instructions
