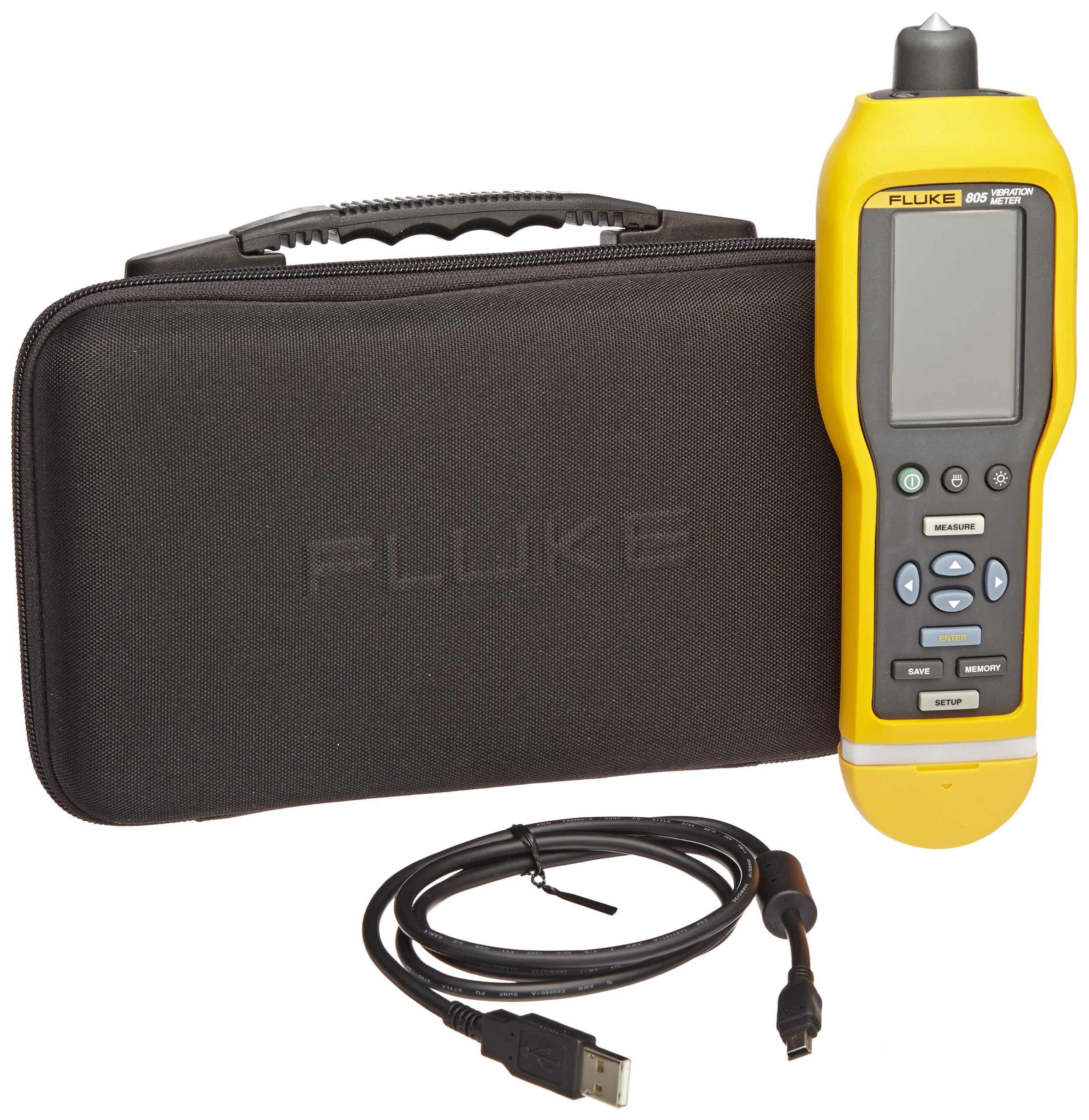

Fluke 805 Vibration Meter with Large High Resolution Screen, 1000 Hz Frequency, 500g peak Vibration Limit

Be the first to review this item

ASIN B008RE1Q3G

Specifications for this item
Number of Items
1
Overall Height
2-19/64  inches
Overall Width
2-51/64  inches
Part Number
FLUKE-805
Item Weight
1 pounds
UPC
095969610698 , 520361371125
Brand Name
Fluke
EAN
0095969610698 , 5053485708867 , 0520361371125
UNSPSC Code
41114624
Overall Length
9-1/2  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 23 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Innovative sensor design helps minimize measurement variations caused by device angle or contact pressure
  • Consistent data quality at both low and high frequency ranges
  • Four-level scale indicates severity of problems for overall vibration and bearing condition
  • Exportable data via USB
  • Trending in Microsoft excel using built-in templates

Package Details

Shipping Weight: 3.05 pounds
Package Size: 10.7 x 7.6 x 3.9 inches

Product Description

The vibration meter is not a vibration pen; it's a meter. A meter that eliminates the confusion of vibration screening and provides reliable measurements you can trust to make critical go or no-go maintenance decisions. Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines. Crest factor+ provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz. Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements. Temperature measurement with infrared temperature sensor increases diagnostic capabilities. On-board memory holds up to 3500 measurements. Audio output for listening to bearing tones directly. External accelerometer support for hard to reach locations. Flashlight for viewing measurement locations in dark areas. Large screen with high resolution for easy navigation and viewing. Low frequency range (overall measurement): 10 to 1,000 Hz. High frequency range (CF+ measurement): 4,000 to 20,000 Hz. Vibration limit: 50 g peak (100 g peak-peak). A/D converter: 16-bit. Signal to noise ratio: 80 dB. Sampling rate: Low frequency - 20000 Hz, High frequency - 80,000 Hz. Real time clock backup: coin battery. Battery type: AA (2)lithium iron disulfide. Battery life: 250 measurements. Measures 9-1/2" length by 2-51/64" width by 2-19/64" height.
