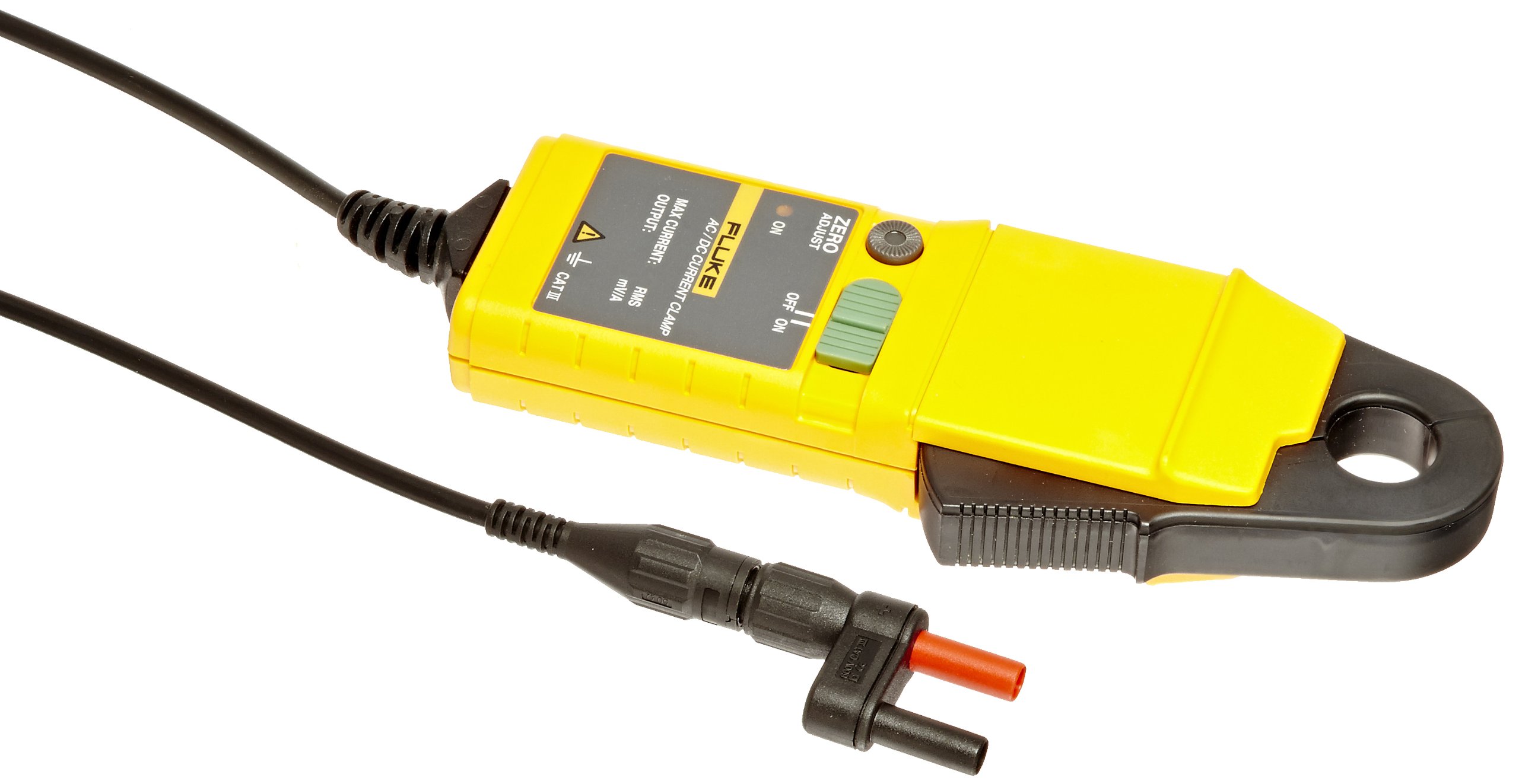

Click for larger image and other views Image is representative of the product family.

How can we improve our images or Product Specifications?

See all products in this Product Family

Fluke I30S AC/DC Current Clamp, 300V AC/DC Voltage, 30A DC, 20A AC rms Current

Be the first to review this item

ASIN B0012SCX8G

Product Specifications
Mfr Part #
I30S
UPC
095969345101
EAN
5053252451866 , 0095969345101
Item Weight
0.55 pounds
Number of Items
1
Power Source Type
AC/DC
Specifications
30A DC, 20A AC RMS Current
Specification for this product family (See all  products)
UNSPSC Code
41111905
Brand Name
Fluke

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 23 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Current clamp is based on hall effect technology
  • Use in measurement of both DC and AC current
  • it may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement
  • 1.4" Crest factor
  • 100 mV/A output sensitivity

Package Details

Shipping Weight: 0.88 pounds
Package Size: 10.1 x 4.3 x 1.5 inches

Product Description

The i30s current clamp is based on hall effect technology for use in measurement of both DC and AC current. The i30s may be used in conjunction with oscilloscopes and other suitable recording instruments for accurate non-intrusive current measurement. Specified current range: 30 mA to 30A DC, 30 mA to 20 A AC rms. Usable current range: 5 mA to 30 A DC, 30 mA to 20 A AC rms. Crest factor: 1.4". Output sensitivity: 100 mV/A. Accuracy (at +25 degree C): +/-1 percent of reading +/-2 mA. Resolution: +/-1 mA. Load impedance: greater than 100 kilo ohm. Conductor position sensitivity: +/-1 percent relative to center reading. Frequency range: DC to 100 kHz (- 0.5 dB). Phase shift below 1 kHz: less than 2 degrees. Temperature coefficient: +/-0.01 percent of reading/degree C. Power supply: 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator. Working voltage (see Safety Standards section): 300 V AC rms or DC. Maximum conductor size: 19mm diameter. Output connection: Safety BNC connector, supplied with safety 4mm adapter. Output zero: Manual adjust via thumbwheel. Cable length: 2 meters. Operating temperature range: 0 to +50 degree C. Storage temperature range (with battery removed): -20 to +85 degree C. Operating humidity: 15 to 85 percent (non-condensing). Safety standards: BS EN 61010-1: 2001, BS EN 61010-2-032: 2002, BS EN 61010-031: 2002, 300 Vrms, Category III, Pollution Degree 2, Use of the probe on uninsulated conductors is limited to 300 V AC RMS or dc and frequencies below 1 kHz. EMC Standards: EN 61326: 1998 +A1, A2, and A3. Measures 71mm width by 183mm height by 25mm depth.
