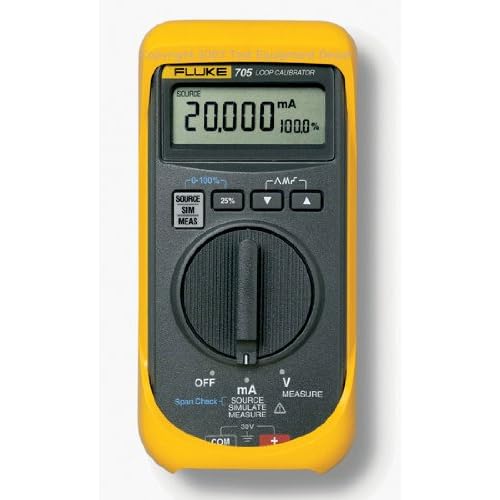

Fluke 705 Loop Calibrator, 28V Voltage, 24mA Current, 0.025 percent Accuracy

Be the first to review this item

ASIN B000NI2B2E

Product Specifications
Part Number
FLUKE-705
UPC
095969062565
EAN
0095969062565
Item Weight
0 pounds
Number of Items
1
Size Name
0.025 percent Accuracy
Specification for this product family (See all  products)
UNSPSC Code
41111600
Brand Name
Fluke

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 1 day 5 hrs 5 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • A large display and simple, pushbutton interface for ease of use
  • Simultaneous mA and percent readout for quick, easy interpretation of readings; mA accuracy of 0.02 percent
  • Push button 25 percent steps for fast, easy linearity checks; save time over traditional knob type controls
  • Span check for fast confirmation of zero and span
  • 3 year warranty

Package Details

Shipping Weight: 1.6 pounds
Package Size: 10.1 x 5.9 x 3.2 inches

Product Description

Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops. A large display and simple, pushbutton interface for ease of use. Simultaneous mA and percent readout for quick, easy interpretation of readings. mA accuracy of 0.02 percent. Push button 25 percent steps for fast, easy linearity checks. Save time over traditional knob type controls. "Span Check" for fast confirmation of zero and span. Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests. 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM. Single 9V battery that is easily changed. 0 - 20 mA or 4 - 20 mA default start up modes. 0.02 percent accuracy and 0.001 mA resolution. Simultaneous mA and percent of span display. Selectable step or ramp outputs. 24V Loop supply with mA measure. 0-28 VDC measurement to check Loop Voltage. Easy battery exchange without opening the case. Compact case with separate protective holster. 3 year warranty. Current measurement: : 0 to 24 mA range, 0.001 mA resolution, 0.02 percent Rdg + 2 LSD accuracy. Voltage measurement: : 0 to 28V DC range, 1 mV resolution, 0.025 percent Rdg + 2 LSD accuracy. Loop power: while measuring mA, 24V. Operating temperature: -10/55 degree C. Storage temperature: -40/60 degree C. Measures 152mm length by 70mm width by 41mm depth. Loop calibrator including: AC70A alligator clips, C10 protective yellow holster with Flex-Stand, instruction sheet, TL75 safety-designed test lead set, NIST- traceable calibration report and data. Weight: 340g.
