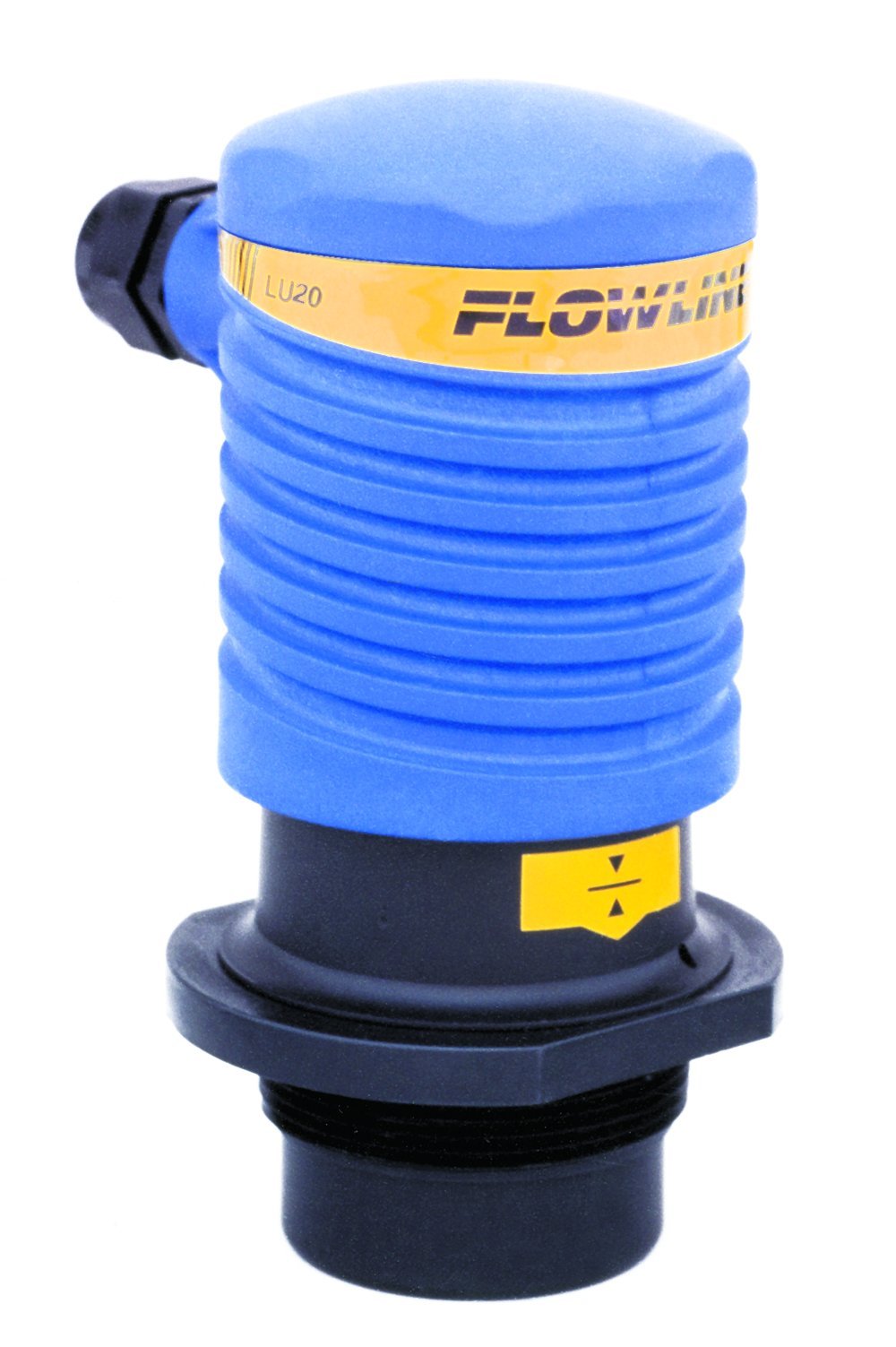

Flowline LU20-5001-IS EchoTouch IS Ultrasonic Level Transmitter with 18' Cable, 2" NPT

Be the first to review this item

ASIN B0061OZJ96

Specifications for this item
Number of Items
1
Overall Height
2-51/64  inches
Part Number
LU20-5001-IS
Brand Name
Flowline
UNSPSC Code
41111938
Overall Length
6-19/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 8 hrs 34 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Intrinsically safe transmitter for use in hazardous environments
  • LCD digital display indicates level in inches or centimeters
  • EasyCal simple push button calibration for all user set points
  • Polypropylene enclosure rated NEMA 4X with rugged PVDF transducer
  • Adjustable dead band and range filters eliminate false echo returns

Package Details

Shipping Weight: 2.2 pounds
Package Size: 7.4 x 6.7 x 5.2 inches

Product Description

CSA approved intrinsically safe for use in hazardous locations, the two-wire ultrasonic transmitter provides non-contact level measurement up to 18', and is ideally suited for challenging corrosive, slurry or waste liquids. Push button calibrated, the transmitter is typically selected for atmospheric bulk storage, day tank and waste sump applications located within a classified area. Media examples include diesel fuel and sulfuric acid. The transmitter is calibrated in less than a minute using the LCD display, 4-button interface and intuitive calibration menu. All user set points are held in nonvolatile memory. In the event of acoustic signal loss, the transmitter will hold the current output at the user designated safe state. Range: 6" to 18'. Accuracy: +/- 0.25 percent span in water. Resolution: 0.125". Dead band: 6". Beam width: 8 degree conical. Configuration: push button. Memory: Non-volatile. Display type: LCD, 4-digit. Display units: Inch or cm. Supply voltage: 12 to 32 VDC. Loop resistance: 600 Ohms at 24 VDC. Signal output: 4-20 milliampere, two-wire. Signal invert: 4-20, 20-4 milliampere. Signal fail-safe: reverts to safe state during echo loss. Process temprature: -4 to 140 degreeF. Temprature compensation automatic. Ambient temprature: -40 to 140 degree. Pressure: 30 psi at 25 degreeC, derated at 1.667 psi per degreeC above 25 degreeC. Enclosure rating: NEMA 4X(IP65). Enclosure material: polypropylene. Conduit entrance: Single, 1/2" NPT. Translucent material: PVDF. Process mount: 2" NPT. Mount gasket: Viton. Classification: intrinsically safe. Compliance: CE. Approvals: Class I, Groups A, B, C and D; Class II, Groups E, F and G; Class III; T3C. Parameters: CSA: Vmax < 32.0 V; Imax < 130 milliampere, Ca equal to 0 microfarad; La equal to 0 microhenry. Certificates: CSA: LR 79326.
