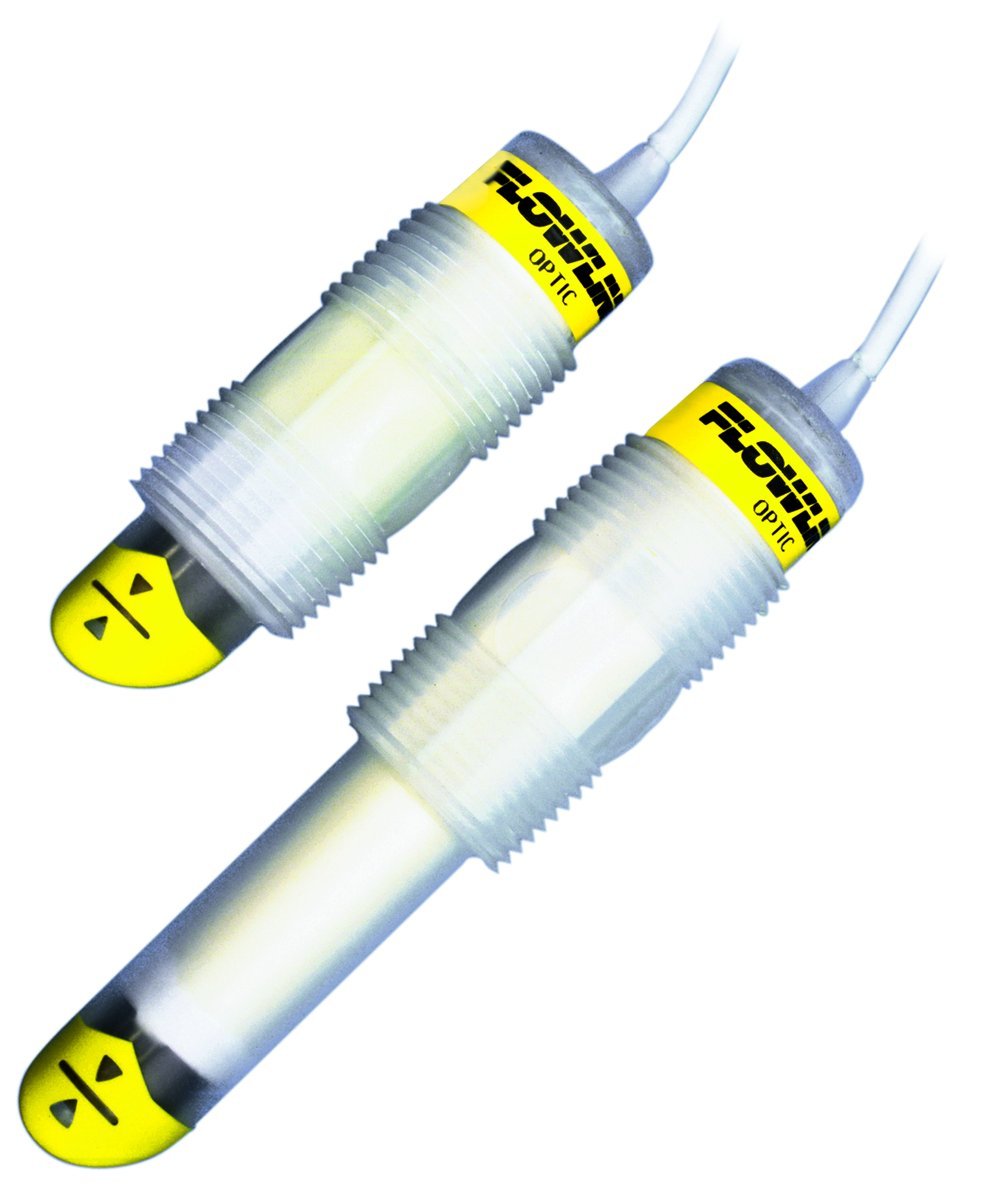

Flowline LO10-1305 Polypropylene Switch-Tek Optic Leak Detection Switch, Short, 3/4" NPT

Be the first to review this item

ASIN B0061OYYKQ

Specifications for this item
Number of Items
1
Part Number
LO10-1305
Brand Name
Flowline
UNSPSC Code
41111938
Overall Length
10.3  feet

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Sep 2? Order in-stock items in the next 1 day 13 hrs 58 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Submersible polypropylene Teflon sensor and cable for corrosive liquids
  • 60VA relay selectable NO or NC via power supply wiring polarity
  • Fail-safe leak sensor inverts wet to alert user for maintenance
  • Ideal for detecting leaks in secondary containment tanks and pipes
  • Switch fail-safe is "wet" preventing a switch from failing undetected

Package Details

Shipping Weight: 0.6 pounds
Package Size: 7.4 x 6.7 x 2.7 inches

Product Description

The general purpose optic leak switch provides reliable leak detection in and around secondary containment sumps, tanks and piping systems with a 1A relay output. Media examples include sulfuric acid, water and diesel. The submersible polypropylene liquid leak detection sensor is mounted through the wall or within the interstitial space. The optic leak detection switch is easily placed in the interstitial space of double wall tanks or threaded into a collection trap in secondary containment piping. Ideal for detecting leaks in secondary containment tanks and pipes. Switch fail-safe is "wet" preventing a switch from failing undetected. Useful in many corrosive liquids. Requires small amount of liquid to detect leak. Orientation: universal. Accuracy: +/- 1mm in water. Repeatibility: +/- 0.5mm in water. Supply voltage: 12-36 VDC. Consumption: 25 milliampere maximum. Contact type: (1) SPST relay. Contact rating: 60 VA, 1A maximum. Contact output: Selectable NO/NC. Process temprature: -40 degree to 176 degreeF. Pressure: 150 psi at 25 degree C. Sensor rating: NEMA 6 (IP68). Sensor material: polypropylene. Cable jacket material: polypropylene. Cable type: 4-conductor, shielded. Cable length: 10'. Process mount: 3/4" NPT. Mount gasket: Viton. Classification: general purpose. Compliance: CE.
