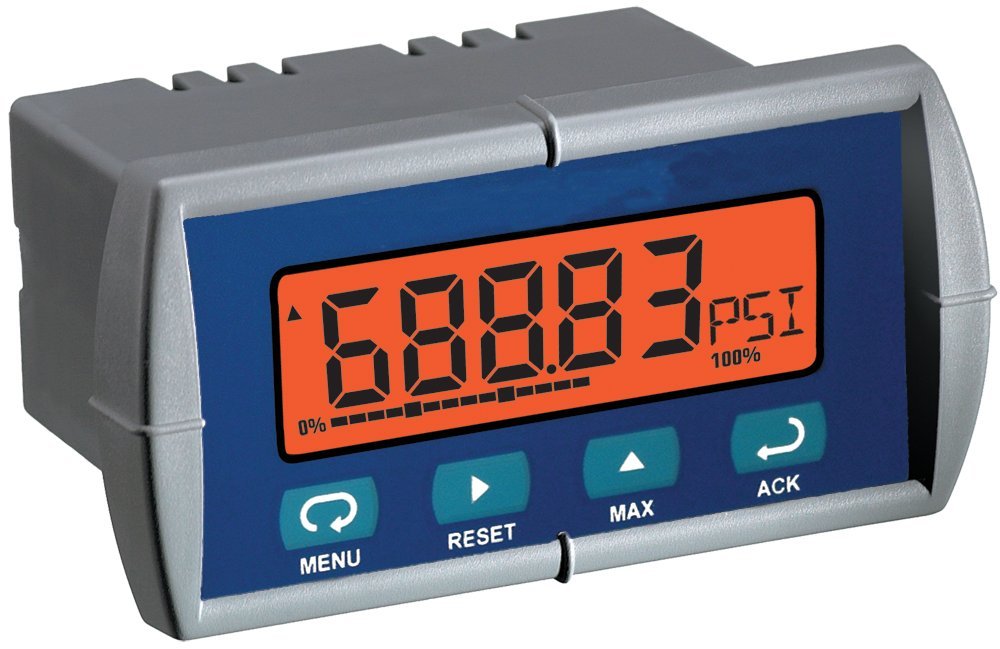

Flowline LI25-1001 DataLoop General Purpose Level Indicator with LCD Display

Be the first to review this item

ASIN B0061OYI7U

Specifications for this item
Number of Items
1
Part Number
LI25-1001
Brand Name
Flowline
UNSPSC Code
41111938
Overall Length
4-43/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 19 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • LCD main display with secondary unit and bar graph display
  • DIN enclosure with NEMA 4X faceplate and shallow case
  • Linear, square root and programmable exponent functions
  • Non-volatile memory with security password protection
  • Windowed NEMA box accessory for field installations

Package Details

Shipping Weight: 0.85 pounds
Package Size: 7.6 x 6.6 x 3.4 inches

Product Description

The general purpose loop powered level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter. For field mount installation, add a single or two indicator NEMA box. Easy configuration via the push button display module. The general purpose loop powered level indicator displays engineering units connected in series with one 4-20 mA continuous level transmitter. For field mount installation, add a single or two indicator NEMA box. Display type: LCD, 5-digit. Display units: Engineering. Display output: -9999 to 99999. Display height: 0.6" (15mm). Decimal point: Floating. Backlight: LED, orange. Configuration: Push button. Memory: Non-volatile. Sensor input: (1) 4-20 mA transmitter. Loop power: 12-30 VDC. Voltage drop: 2.0 VDC without backlight 5.7 VDC with backlight. Ambient temperature: F: -22 to 149 degree, C: -30 to 65 degree. Enclosure type: 1/8 DIN, panel mount. Enclosure rating: NEMA 4X (IP65) faceplate. Enclosure material: Polycarbonate. Classification: General purpose. Compliance: CE.
