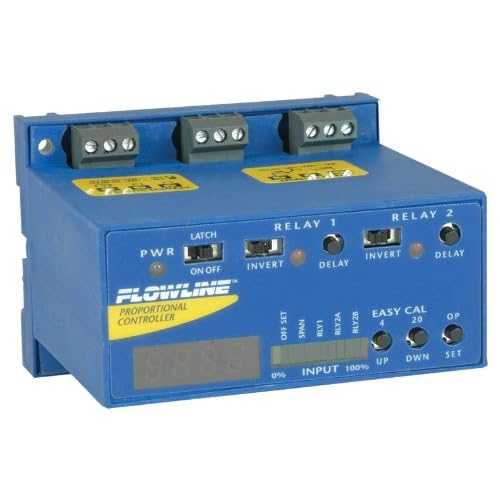

Flowline LC52-1001 DataPoint Level Controller, 250 VAC

Be the first to review this item

ASIN B0061OXWI6

Specifications for this item
Number of Items
1
Overall Height
2-11/16  inches
Part Number
LC52-1001
Brand Name
Flowline
UNSPSC Code
41111938
Overall Length
3-57/64  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 4 hrs 29 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 3.5 digit LED display indicates level in custom engineering units
  • Fail-safe relay control of pumps or valves with 0-60 second delay
  • Easy set up with push button calibration for span, display and relay set points
  • 35 mm DIN rail mount polypropylene enclosure with removable terminal strips
  • Invert switch changes relay state from NO to NC without rewiring

Package Details

Shipping Weight: 1.85 pounds
Package Size: 7.5 x 6.6 x 5.4 inches

Product Description

The general purpose controller provides single tank level indication with 2 relays, 1-3 set points and an isolated analog repeater. Relay 1 is configurable on a single set point. Relay 2 can be configured on a single set point or latched on two set points for automatic fill or empty control. Package the controller with any of our level transmitters. The NEMA 4X polycarbonate enclosure is a great choice for field mount installations and comes complete with a DIN rail mounting kit. Display type: LED, 3.5 digit. Display units: Engineering. Display output: 0 to 999. LED indication: Power and relay. LED bar graph: Span and set points. Memory: Non-volatile. Security: Set point lock out. Configuration: Push button. Alarm indication: Amber: < 4mA. Red: > 20 mA. Sensor input: (1) 4-20 mA. Supply voltage: Selectable 120/240. VAC 50-60 Hz. Sensor supply: 24 VDC at 1.5 watts. Loop power: 4-20 mA, 18 VDC. Consumption: 5 watts maximum. Contact type: (2) SPDT relays (one latching). Contact rating: 250 VAC at 10A. Contact output: Selectable NO/NC. Contact latch: Selectable ON/OFF. Contact delay: 0-60 seconds. Repeater output: 4-20 mA, 12-36 VDC. Ambient temp.: F: -40 to 158 degree. C: -40 to 70 degree. Enclosure type: 35mm DIN rail (EN 50 022). Enclosure mat.: PP, UL94VO. Classification: General purpose. Compliance: CE.
