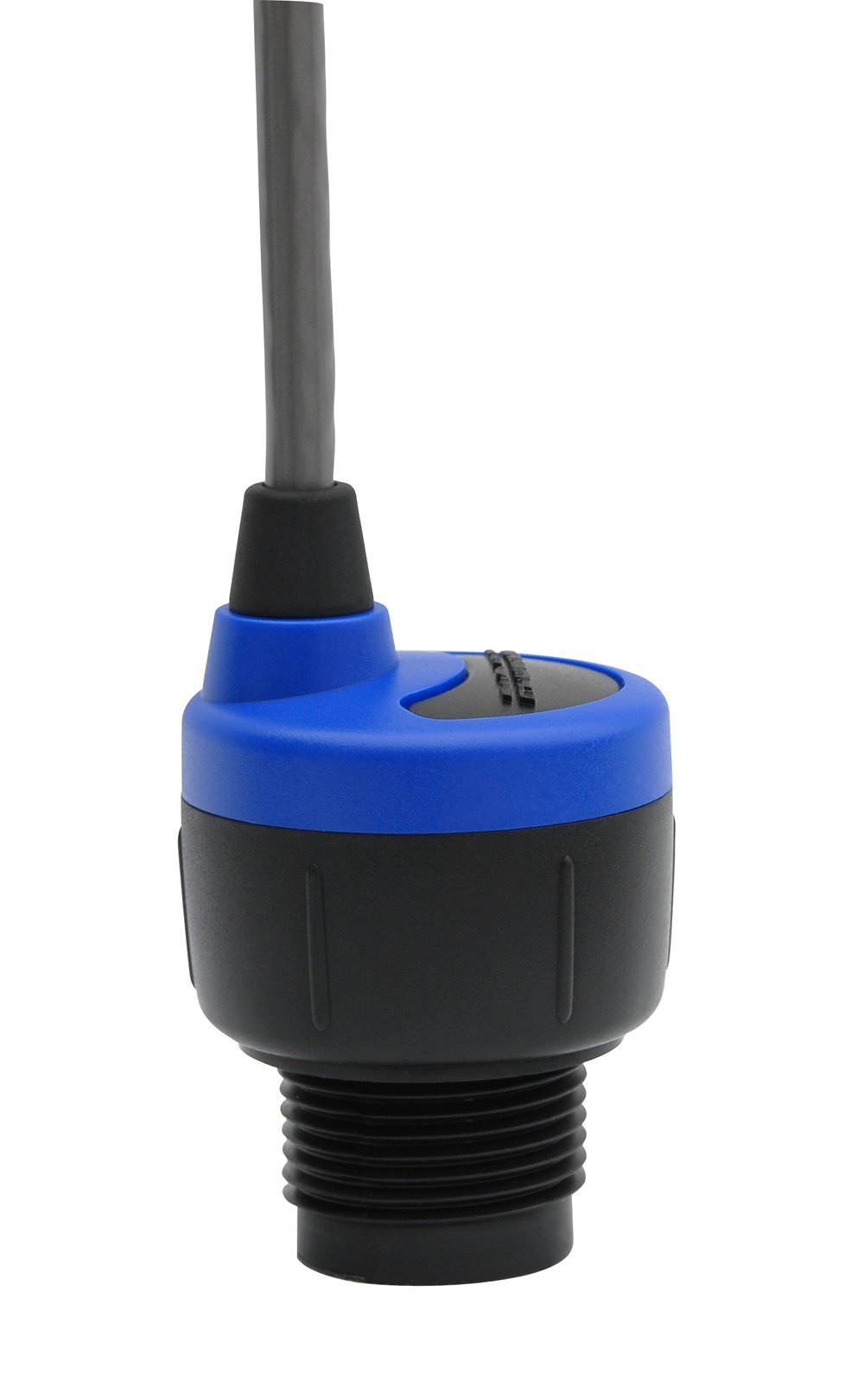

Flowline DX10-01 EchoPod Ultrasonic Level Sensor with Fob, 1" NPT

Be the first to review this item

ASIN B0061OXUEW

Specifications for this item
Number of Items
1
Overall Height
51-3/16  inches
Part Number
DX10-01
Brand Name
Flowline
UNSPSC Code
41111938

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Continuous non-contact level measurement up to 49.2" (1.25m)
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 2" beam width and short 2" dead band optimized for small tanks
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement

Package Details

Shipping Weight: 0.45 pounds
Package Size: 10 x 4.9 x 1 inches

Product Description

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2" (1.25m) with a selectable 0-5 VDC, 0-10 VDC or 976-2000 Hz frequency signal output, and is configured via our free WebCal software. Select the voltage output for interface with analog input cards. Select the frequency output for interface with discrete input cards. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for small day tank, skid, IBC, sump and process tank level applications. Range: 49.2" (1.25m). Accuracy: 0.125" (3mm). Resolution: 0.019" (0.5mm). Dead band: 2" (5cm). Beam width: 2" (5cm). Configuration: WebCal PC Windows USB 2.0. Memory: Non-volatile. Supply voltage: 12-28 VDC. Consumption: 0.5W. Signal output: 0-5 V, 0-10 V, 976-2000 Hz. Frequency: Sink current, 15 mA nominal. Signal invert: 5-0 V, 10-0 V, 2000-976 Hz. Signal fail-safe: Full, empty or hold last. Process temperature: F: 20 to 140d egree C: -7 to 60 degree. Temperature comp.: Automatic. Ambient temperature: -31 to 140 degree F, -35 to 60 degree C. Pressure: MWP = 30 PSI (2 bar). Enclosure rating: Type 6P, encapsulated,corrosion resistant and submersible. Enclosure material: Polycarbonate. Strain relief mat: Santoprene. Trans. material: PVDF. Cable jacket material: Polyurethane. Cable type: 6-conductor, shielded. Cable length: 48" (1.2m). Process mount: 1" NPT. Mount gasket: Viton. Classification: General purpose. Compliance: CE, RoHS. Approvals: cFMus.
