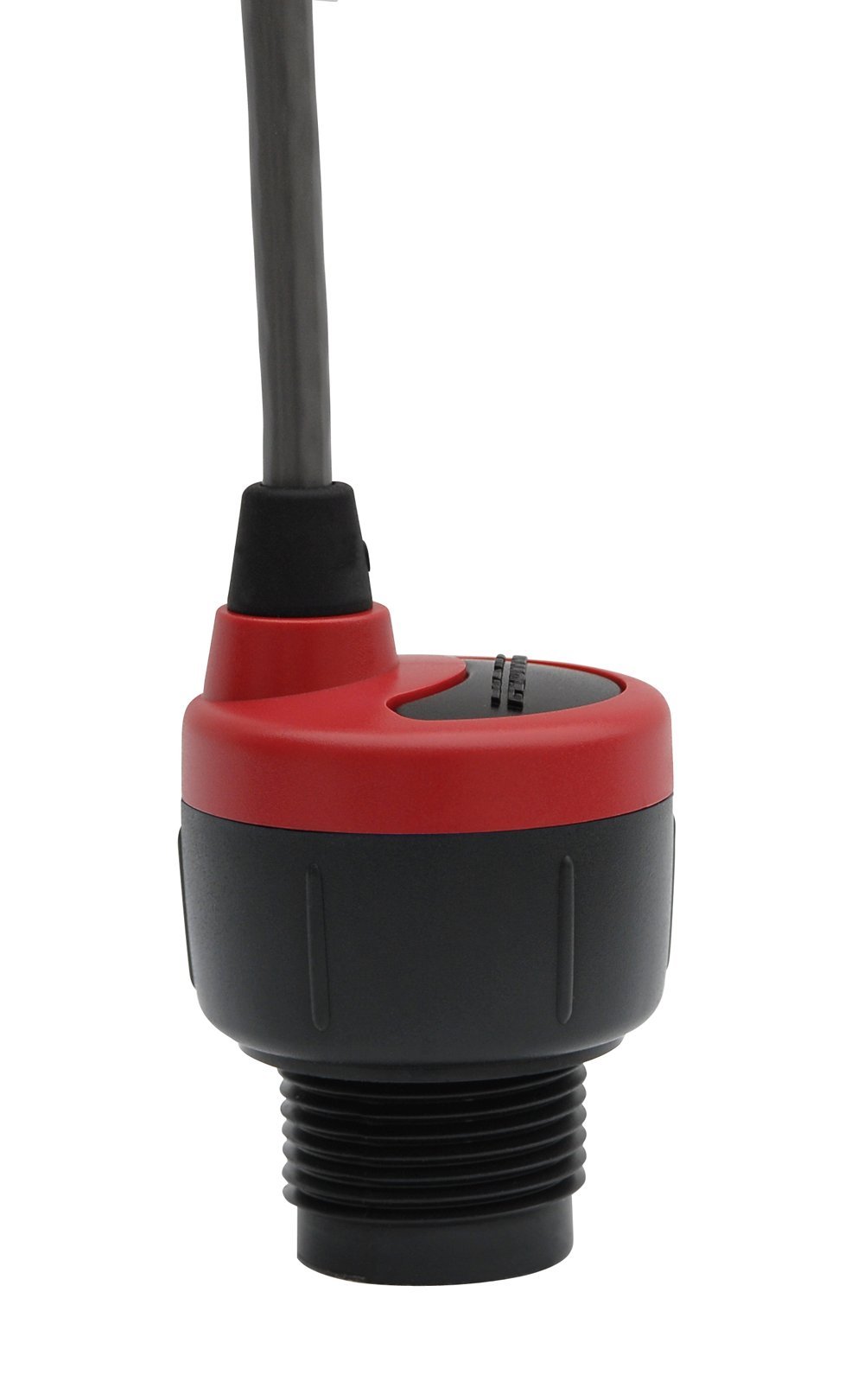

Flowline DS14-01 Polycarbonate EchoPod Ultrasonic Level Switch and Controller with Fob, 1" NPT, 4.1' Range

Be the first to review this item

ASIN B0061OXS44

Specifications for this item
Number of Items
1
Overall Height
51-3/16  inches
Part Number
DS14-01
Brand Name
Flowline
UNSPSC Code
41111938

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 15 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Switch and control functions with continuous level measurement output up to 49.2" (1.25m)
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 2" beam width and short 2" dead band optimized for small tanks
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement

Package Details

Shipping Weight: 0.5 pounds
Package Size: 8.2 x 6 x 1.5 inches

Product Description

The general purpose ultrasonic level switch provides continuous level detection up to 49.2" (1.25m) with 4 programmable relays for level switch or level control functions, and is configured via our free WebCal software. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is broadly selected for small day tank, skid, IBC, sump and process tank level applications. Range: 49.2" (1.25m). Accuracy: 0.125" (3mm). Resolution: 0.019" (0.5mm). Dead band: 2" (5cm). Beam width: 2" (5cm). Configuration: WebCal PC Windows USB 2.0. Memory: Non-volatile. Supply voltage: 12-24 VAC/VDC. Consumption: 0.5W. Contact type: (4) SPST relays. Contact rating: 60VA, 1A maximum. Contact fail-safe: Power loss: Hold last. Power on: Open, close or hold last. Hysteresis: Selectable. Process temperature: F: 20 to 140 degree, C: -7 to 60 degree. Temperature comp.: Automatic. Ambient temperature: -31 to 140 degree F, -35 to 60 degree C. Pressure: MWP = 30 PSI (2 bar). Enclosure rating: Type 6P, encapsulated,corrosion resistant and submersible. Enclosure material: Polycarbonate. Strain relief material: Santoprene. Trans. material: PVDF. Cable jacket mat: polyurethane. Cable type: 9-conductor, shielded. Cable length: 48" (1.2m). Process mount: 1" NPT. Mount gasket: Viton. Classification: General purpose. Compliance: CE, RoHS. Approvals: cFMus.
