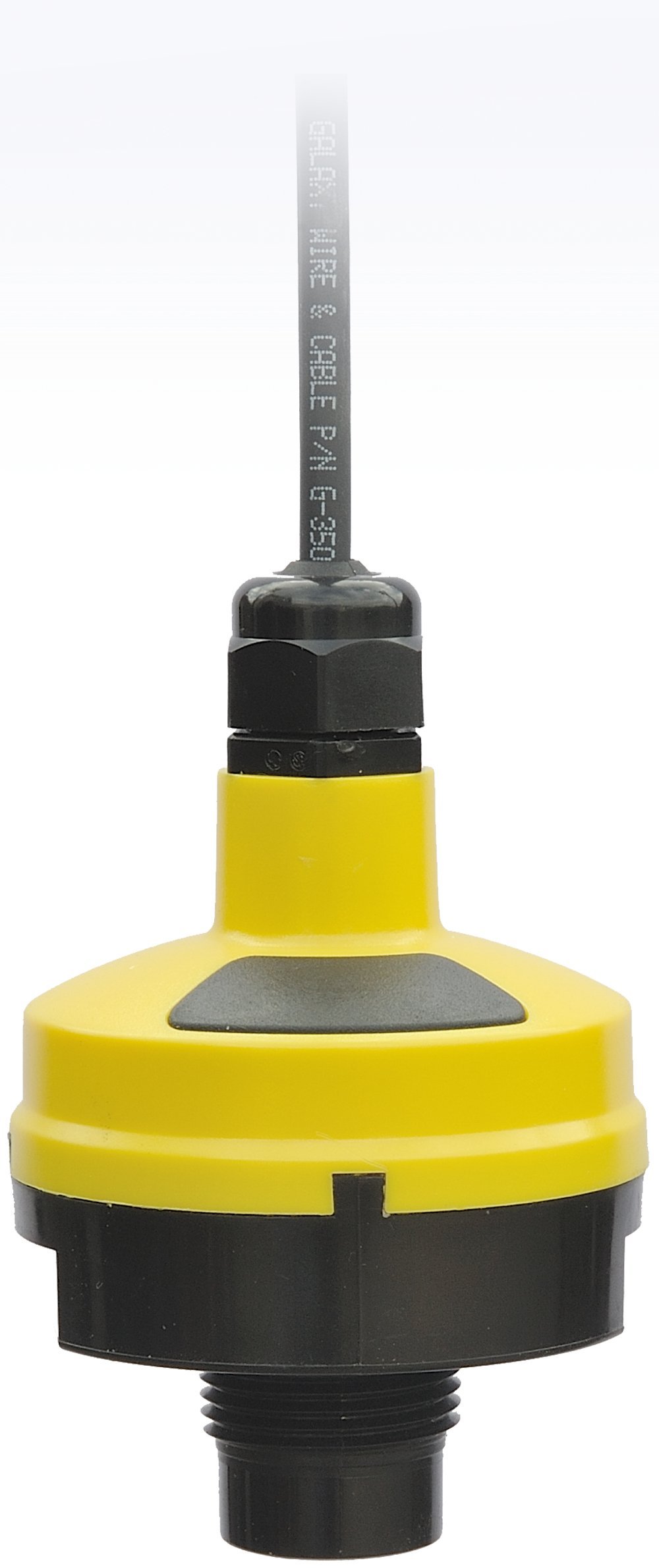

Flowline DL24-01 Polycarbonate EchoPod Multi Function Ultrasonic Level Transmitter with Fob, 1" NPT, 9.8' Range

Be the first to review this item

ASIN B0061OXNOO

Specifications for this item
Number of Items
1
Overall Height
52-57/64  inches
Part Number
DL24-01
Brand Name
Flowline
UNSPSC Code
41111938

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Dec 24? Order in-stock items in the next 20 hrs 16 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Switch and control functions with continuous level measurement output up to 9.8' (3m)
  • Configuration is fast and easy via WebCal software and USB adapter
  • Narrow 2" beam width and short 4" dead band optimized for small tanks
  • PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
  • Automatic temperature compensation for accurate measurement

Package Details

Shipping Weight: 0.95 pounds
Package Size: 8.7 x 6 x 4 inches

Product Description

The general purpose ultrasonic level transmitter provides continuous level measurement up to 9.8’ (3m) with a 4-20 mA signal output, and is configured via our free Webcal software. The level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids, and is widely selected for day tank, skid, IBC, sump and process tank level applications. Range: 9.8' (3m). Accuracy: +/- 0.2 percent of range. Resolution: 0.039" (1mm). Dead band: 4" (10cm). Beam width: 2" (5cm). Configuration: WebCal PC Windows USB 2.0. Memory: Non-volatile. Supply voltage: 24 VDC (loop). Consumption: 0.5W. Loop resist.: 400O maximum. Signal output: 4-20 mA, two-wire. Signal invert: 4-20 mA or 20-4 mA. Signal fail-safe: 4 mA, 20 mA, 21 mA,22 mA or hold last. Contact type: (4) SPST relays. Contact rating: 60 VA, 1A maximum. Contact fail-safe: Power loss: Hold last. Echo loss: Open, closeor hold last. Hysteresis: Selectable. Process temperature: F: 20 to 140 degree C: -7 to 60 degree. Temperature comp.: Automatic. Ambient temperature: F: -31 to 140 degree C: -35 to 60 degree. Pressure: MWP = 30 PSI (2 bar). Enclosure rating: Type 6P, encapsulated,corrosion resistant and submersible. Enclosure material: Polycarbonate. Trans. material: PVDF. Cable jacket mat: Polyurethane. Cable type: 9-conductor, shielded. Cable length: 48" (1.2m). Process mount: 1" NPT. Mount gasket: Viton Classification: General purpose. Compliance: CE, RoHS. Approvals:cFMus.
