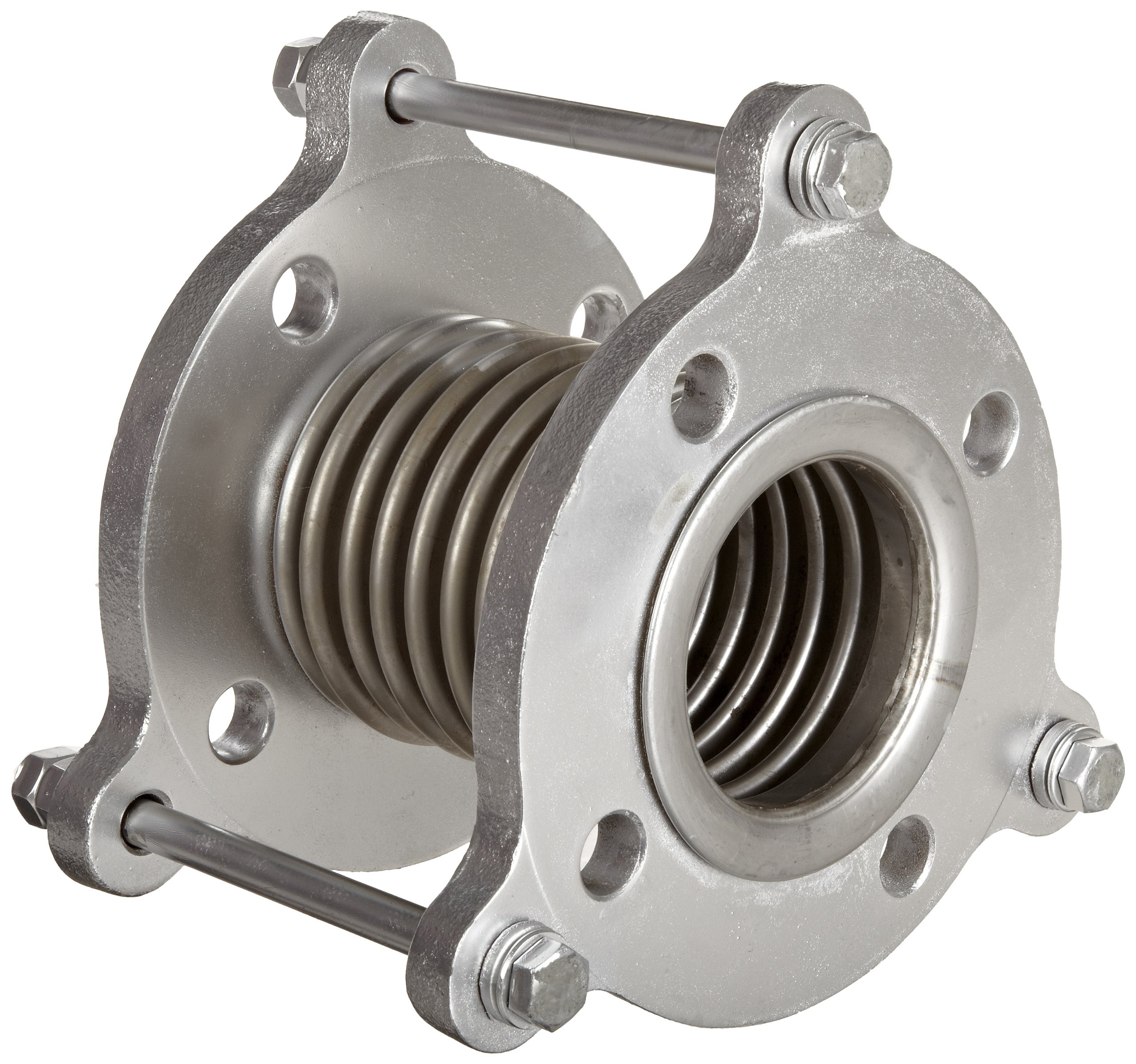

Flexicraft Stainless Steel Bellows Connector Expansion Joint with #150 Floating Flange and Tie Rod, 3" ID x 6" Length

Be the first to review this item

ASIN B0068T0FSE

Specifications for this item
Number of Items
1
Item Shape
Flange
Flange Outside Diameter
7-1/2  inches
Material Type
Stainless Steel
Pressure Rating Class
Not Rated
Part Number
MPTRVS0300
Brand Name
Flexicraft
Size Name
3"
Flange Hole Size
6  inches
Upper Temperature Range
480  Degrees Fahrenheit
Bolt Hole Size
3/4  inches
Maximum Pressure
225  PSI
UNSPSC Code
40170000
Number of Fasteners
4
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 1 day 15 hrs 51 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 304 stainless steel bellows expansion joint
  • Carbon steel 150# drilled floating flanges
  • Built in tie rods
  • Allows for 0.9" of compression movement
  • Measures 3" inside diameter by6" length

Package Details

Shipping Weight: 16 pounds
Package Size: 10.4 x 10 x 8.8 inches

Product Description

The Flexicraft bellows connector is kept stocked with 150# C/S flanges and tie rods. It is an economical choice that is appropriate for many applications, allowing 0.9" of compression. For pipe 3" diameter. Provide metal expansion joint with 2-ply stainless steel bellows. Shall be suitable for a maximum operating pressure of 225 psi at a temperature of 150 degrees F, and a maxi operating pressure of 110 psi at 480 degrees F. Joints shall have a compression of 0.9" for up to 8" diameter pipe. Approved Models, BCON by Flexicraft Industries.
