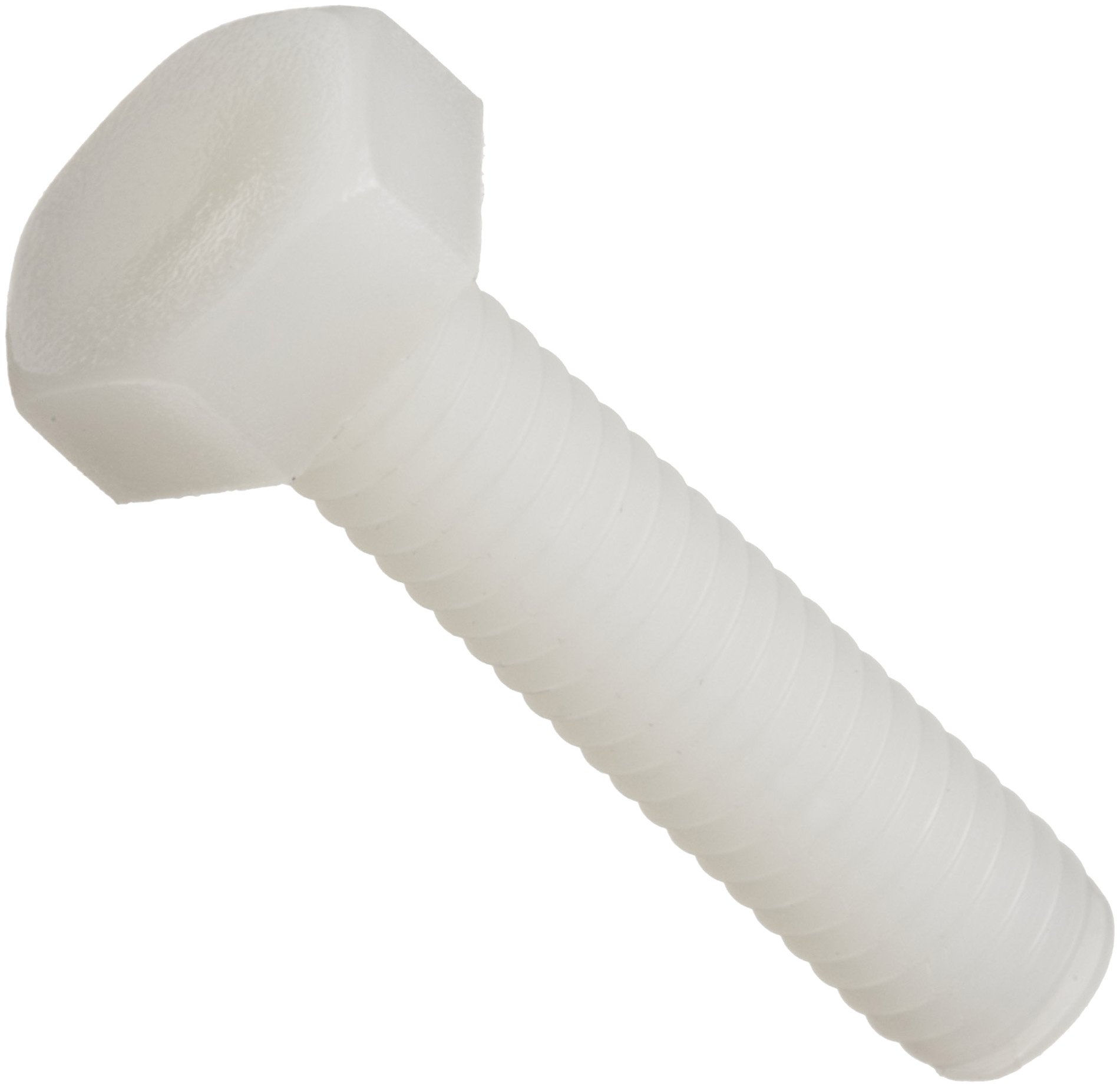

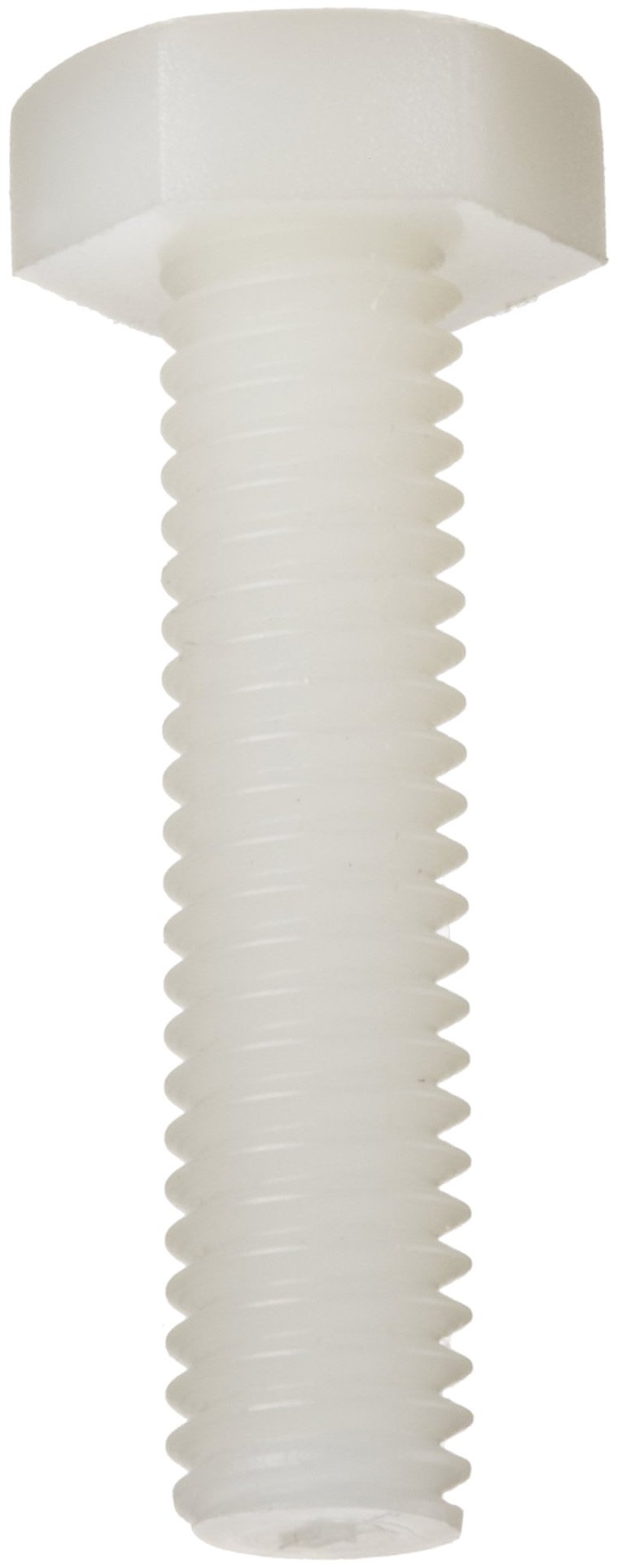

Nylon 6/6 Hex Bolt, Plain Finish, Off-White, External Hex Drive, Meets ASTM D4066/ASTM D6779, 35mm Length, Fully Threaded, M3-0.5 Metric Coarse Threads (Pack of 100)
Be the first to review this item
ASIN B000OD08Q4
Specifications for this item
- Brand Name
- Small Parts
- Color Name
- Off-White
- Drive Style
- External Hex
- Exterior Finish
- Plain
- Head Height
- 2.0 millimeters
- Length
- 35 millimeters
- Material Type
- Nylon 6/6
- Part Number
- B000OD08Q4
- Pkg Qty
- 100
- Size
- M3
- Specification Met
- ASTM D4066 , ASTM D6779
- System of Measurement
- Metric
- Thread Class
- 6g
- Thread Coverage
- Fully Threaded
- Thread Length
- 35 millimeters
- Thread Style
- Metric Coarse
- Thread Style
- Right Hand
- Upper Temperature Range
- 185 Degrees Fahrenheit
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, June 21? Order in-stock items in the next 23 hours 56 minutes and choose One-Day Shipping at checkout.
Key Features
- Hex Bolts feature a chamfered point
- 6/6 Nylon is suitable where non-conductivity, corrosion resistance, and cost are important considerations
- Hex head for easy driving
- Length is measured from under the head
- Coarse threads are better for brittle materials, and will assemble and disassemble more quickly than fine threads
Package Details
Shipping Weight:
0.06 pounds
Package Size:
4 x 4 x 0.8 inches
Product Description
Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head.
6/6 Nylon is a general purpose thermoplastic with outstanding resistance to organic chemicals, acids and alkalis. Nylon wears well against other surfaces; it is readily machinable and may be milled, turned and cut with conventional machine tools. It does exhibit some dimensional swelling in wet applications which should be taken into account with its use. Tensile strength of this material is 12,000 psi (pounds per square inch).
Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
A threaded fastener's size name includes information about the major external diameter (in millimeters), followed by the thread pitch (millimeters per thread), which indicates if it is coarse or fine. Coarse threads are better when working with brittle materials; they are sturdier and are easier to thread and unthread compared to fine. Coarse threading also allows for thicker coatings and platings.
