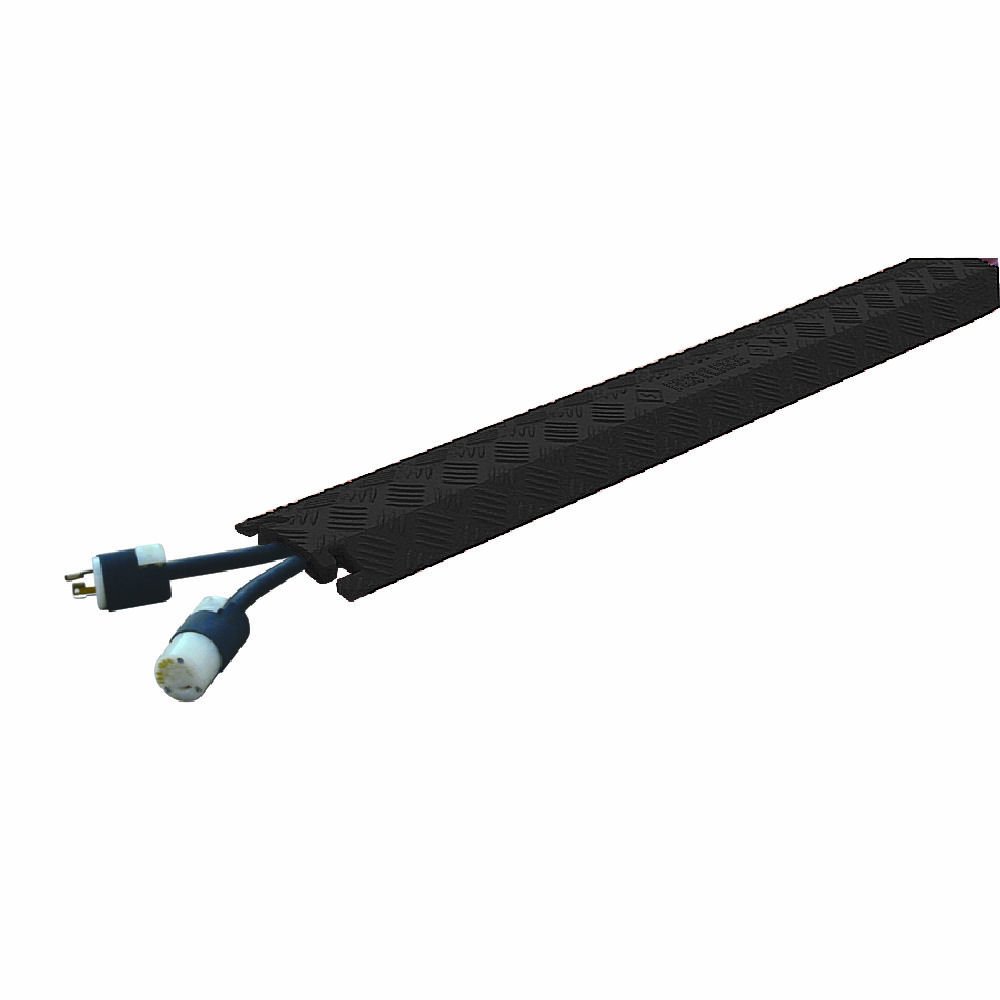

Fastlane FL1X1.5-B Polyurethane 1 Channel Drop Over Cable Protector with L-Shaped Connectors, Black, 36" Length, 5.25" Width, 0.75" Height

Be the first to review this item

ASIN B004UMUNVU

Specifications for this item
Number of Items
1
Material Type
Polyurethane
Part Number
FL1X1.5-B
UPC
812958001318
Brand Name
Checkers Industrial Safety Products
EAN
0812958001318
UNSPSC Code
24101615

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 18 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Protects cables, cords, and hoses up to 0.5"/1.27 cm OD from wear and compression caused by vehicular traffic (up to 2,100 lb./954 kg per axle)
  • Made from RIM UV-stabilized polyurethane for resistance to abrasion, oils, and solvents, and for performance at a portable weight (3 lb./1.4 kg)
  • Drop-over design with a single 1.5"/3.81 cm wide channel for ease of installation and removal
  • Helps reduce the risk of pedestrian tripping accidents with a low profile of 0.75"/1.9 cm
  • L-connectors allow multiple interlocking protectors to be linked together

Package Details

Shipping Weight: 2.65 pounds
Package Size: 38 x 6 x 1 inches

Product Description

Fastlane FL1X1.5-B polyurethane 1 channel drop over cable protector with L-shaped connectors is made from black RIM (reaction injection molded), UV-stabilized polyurethane to protect cables, electrical cords, and hoses up to 0.5"/1.27 cm outside diameter (OD) from wear and compression caused by vehicular traffic (up to 2,100 lb./954 kg per axle) while helping to reduce the danger posed by loose cables in the path of pedestrians. Its drop-over design with its single 1.5"/3.81 cm wide channel offers ease of installation and removal, and it provides a low profile at 0.75"/1.9 cm high to reduce the risk of tripping accidents. The cable protector has two L-shaped connectors on each side (two male connectors on one side and two female connectors on the other) for interlocking multiple connectors to extend coverage across wide passages. The surface has a patented five-bar tread pattern for traction, and molded safety symbols that meet American National Standards Institute (ANSI) Z535.3-1991 standards. This cable protector is suitable for use in lightweight vehicle and pedestrian traffic at homes, offices, and warehouses, as well as indoor and outdoor commercial and industrial environments.

Specifications

Cable capacity 1 channel
Cable channel dimensions 0.5 x 1.5 inches/1.27 x 3.81 cm (W x H)
Maximum load capacity at 70 degrees F/21 degrees C 1,050 lb./477 kg per tire
2,100 lb./954 kg per axle
Overall dimensions 0.75 x 5.25 x 36 inches/1.9 x 13.33 x 91.44 cm (H x W x D)
Weight 3 lb./1.4 kg

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Drop over cable protectors (also called cable covers or cord covers) protect cables, electrical cords, and hoses from wear and compression from pedestrian and vehicular traffic. They can also improve pedestrian safety by helping to decrease the risk of tripping over cables crossing paths or aisles. Drop over cable protectors are placed over cables lying on a floor or outdoor surface where people or cars are expected to pass. These protectors are shaped like trapezoids with an opening on the bottom (called the channel) for the cable or cord. Because they are open on the bottom, they are easy to deploy and pick up, but when used on rough surfaces, they do not protect cables from abrasion from below. Cable protectors are designed for use in public, commercial, and industrial applications where cables, cords, and hoses need to extend across an area pedestrians may pass or vehicles might drive over.

Checkers Industrial Safety Products manufactures and distributes a variety of products including cable management systems, wheel chocks, and warning whips for manufacturing, mining, aviation, military, construction, and entertainment applications. The company, founded in 1987, is headquartered in Broomfield, CO.
