FAG E1 Series Spherical Roller Bearing, Double Row, Reinforced Roller Set, Straight Bore, Roller Guided Brass Cage, Normal Clearance, Metric

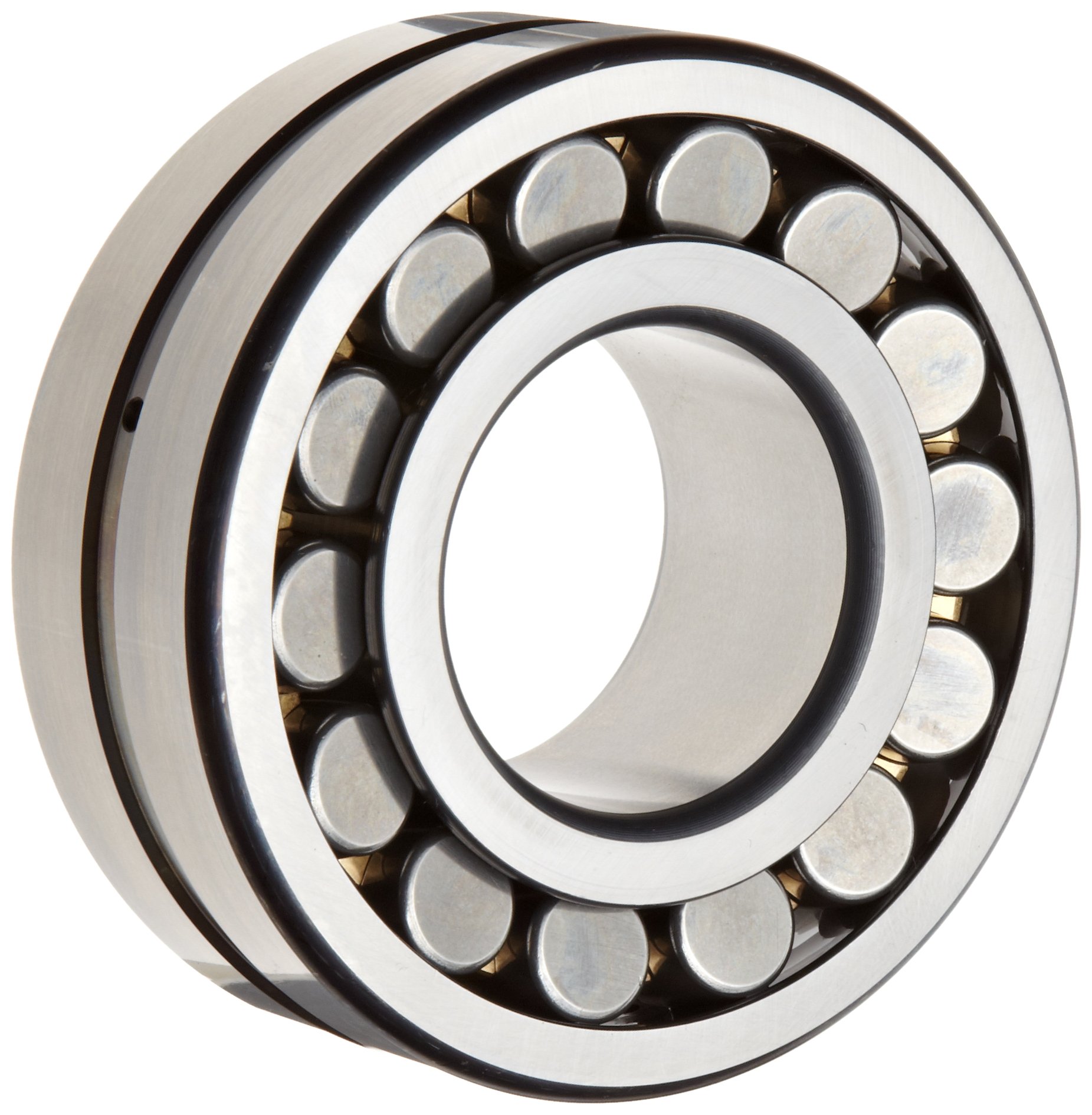

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

FAG E1 Series Spherical Roller Bearing, Double Row, Reinforced Roller Set, Straight Bore, Roller Guided Brass Cage, Normal Clearance, Metric

Be the first to review this item

Product Specifications

Brand Name: FAG Bearings

Manufacturer Series Number: E1 Series

Material Type: Brass/Bronze Cage

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

Javascript is disabled in your browser. Please enable Javascript for your browser or visit our non JavaScript version of the page with limited functionality.

Currently showing 20 of 60 Show All
Mfr Part #	Bore Diameter	Outside Diameter	Bearing Width	Dynamic Load Capacity	Static Load Capacity	Maximum Rotational Speed	ASIN The Amazon Standard Item Number (ASIN) uniquely identifies the item in the AmazonSupply.com (and Amazon) catalog.	Available If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available. You can also order more than we currently have in stock. Read more about back orders in our help section.	Price
All	All	All	All	All	All	All		In Stock Only
Currently showing 20 of 60 Show All
22212-E1A-M	60 mm	110 mm	28 mm	170 kN	160 kN	7500 rpm	B00631DP98	In Stock (1)	$151.86
22213-E1A-M	65 mm	120 mm	31 mm	200 kN	208 kN	6700 rpm	B00631DRMI	In Stock (1)	$162.69
22214-E1A-M	70 mm	125 mm	31 mm	212 kN	228 kN	6300 rpm	B00631DU1Q	In Stock (1)	$178.40
22215-E1A-M	75 mm	130 mm	31 mm	216 kN	236 kN	6300 rpm	B00631DVVK	In Stock (1)	$193.10
22216-E1A-M	80 mm	140 mm	33 mm	250 kN	270 kN	5600 rpm	B00631DY2G	In Stock (1)	$219.15
22217-E1A-M	85 mm	150 mm	36 mm	305 kN	325 kN	5300 rpm	B00631E0YW	Usually ships in 2 to 5 weeks	$258.16
22218-E1A-M	90 mm	160 mm	40 mm	345 kN	375 kN	4800 rpm	B00631E3NK	Usually ships in 2 to 5 weeks	$288.22
22220-E1A-M	100 mm	180 mm	46 mm	430 kN	475 kN	4300 rpm	B00631E8BM	Usually ships in 2 to 5 weeks	$377.16
22222-E1A-M	110 mm	200 mm	53 mm	550 kN	600 kN	4000 rpm	B00631EDO4	Usually ships in 2 to 5 weeks	$470.18
22224-E1A-M	120 mm	215 mm	58 mm	640 kN	735 kN	3400 rpm	B00631EIUI	Usually ships in 2 to 5 weeks	$559.84
22226-E1A-M	130 mm	230 mm	64 mm	750 kN	900 kN	3000 rpm	B00631ENNK	Usually ships in 2 to 5 weeks	$658.66
22228-E1A-M	140 mm	250 mm	68 mm	880 kN	1040 kN	2400 rpm	B00631ET2A	Usually ships in 2 to 5 weeks	$805.49
22230-E1A-M	150 mm	270 mm	73 mm	1000 kN	1220 kN	2600 rpm	B00631EY16	Usually ships in 2 to 5 weeks	$895.94
22232-E1A-M	160 mm	290 mm	80 mm	1140 kN	1400 kN	2600 rpm	B00631F3F2	Usually ships in 2 to 5 weeks	$1,134.91
22234-E1A-M	170 mm	310 mm	86 mm	1320 kN	1560 kN	2400 rpm	B00631F6DQ	Usually ships in 2 to 5 weeks	$1,321.98
22236-E1A-M	180 mm	320 mm	86 mm	1370 kN	1660 kN	2400 rpm	B00631FAZ0	Usually ships in 2 to 5 weeks	$1,441.45
22310-E1A-M	50 mm	110 mm	40 mm	228 kN	224 kN	6000 rpm	B00631DOJ4	In Stock (2)	$207.42
22312-E1A-M	60 mm	130 mm	46 mm	310 kN	310 kN	5000 rpm	B00631DQ6A	Usually ships in 2 to 5 weeks	$251.83
22313-E1A-M	65 mm	140 mm	48 mm	355 kN	365 kN	4800 rpm	B00631DSI6	Usually ships in 2 to 5 weeks	$262.73
22314-E1A-M	70 mm	150 mm	51 mm	390 kN	390 kN	4500 rpm	B00631DUZC	Usually ships in 2 to 5 weeks	$299.12

22212-E1A-M(1)
22213-E1A-M(1)
22214-E1A-M(1)
22215-E1A-M(1)
22216-E1A-M(1)
22217-E1A-M(1)
22218-E1A-M(1)
22220-E1A-M(1)
22222-E1A-M(1)
22224-E1A-M(1)
22226-E1A-M(1)
22228-E1A-M(1)
22230-E1A-M(1)
22232-E1A-M(1)
22234-E1A-M(1)
22236-E1A-M(1)
22310-E1A-M(1)
22312-E1A-M(1)
22313-E1A-M(1)
22314-E1A-M(1)
22315-E1A-M(1)
22316-E1A-M(1)
22317-E1A-M(1)
22318-E1A-M(1)
22320-E1A-M(1)
22322-E1A-M(1)
22324-E1A-M(1)
22326-E1A-M(1)
22328-E1A-M(1)
22330-E1A-M(1)
23022-E1A-M(1)
23024-E1A-M(1)
23026-E1A-M(1)
23028-E1A-M(1)
23030-E1A-M(1)
23032-E1A-M(1)
23034-E1A-M(1)
23036-E1A-M(1)
23038-E1A-M(1)
23040-E1A-M(1)
23120-E1A-M(1)
23122-E1A-M(1)
23124-E1A-M(1)
23126-E1A-M(1)
23128-E1A-M(1)
23130-E1A-M(1)
23132-E1A-M(1)
23134-E1A-M(1)
23136-E1A-M(1)
23138-E1A-M(1)
23218-E1A-M(1)
23220-E1A-M(1)
23222-E1A-M(1)
23224-E1A-M(1)
23226-E1A-M(1)
23228-E1A-M(1)
23230-E1A-M(1)
23232-E1A-M(1)
23234-E1A-M(1)
23236-E1A-M(1)

Key Features

Double row spherical roller bearing for applications that support radial and oscillating axial loads
CN (normal) radial clearance for applications where thermal expansion is not a factor
Straight bore for fitting to conventional cylindrical shafts
Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
Open design, circumferential groove, and three lubrication holes in the outer ring allow for lubrication in place

Product Description

This FAG double row spherical roller bearing with a brass cage is suitable for applications that support radial and oscillating axial loads. It has a CN (normal) radial internal clearance designation making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. The bearing's two rows of symmetrically arranged barrel rollers, which are oriented on a concave raceway, are designed to support axial loads in either direction, including those with restricted diameter tolerances (as with an oscillating shaker conveyor). This bearing is rated "Light," making it applicable for use for average loads or where space is tight, it has a larger roller set than standard rollers for additional durability, and it can be used to a maximum operating temperature of 200 degrees C/392 degrees F. The straight bore fits on a conventional cylindrical shaft. The inner and outer rings and barrel rollers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. The roller-guided solid brass cage prevents the barrel rollers from coming into contact with each other during use, reducing friction, vibration, and noise. The outer ring has a center groove with three holes spaced evenly around it for adding lubricants. Bearings in the E1 series have been manufactured under FAG’s improved engineering processes, resulting in a rating life that is more than double that of the same bearing from the E series. This spherical roller bearing is for use in various applications such as jaw crushers, impactors, cone crushers, and conveyors, among others.

Specifications

Main bearing dimensions	DIN 635-2
Basic dynamic load ratings	DIN ISO 281
Dimensional and geometric tolerances	DIN 620-2, tolerance class PN
CN radial internal clearance	DIN 620-4 (ISO 5 753)
Through-hardening steel for inner and outer rings and rollers	ISO 683-17
System for creating part numbers for rolling bearings	DIN 623-1

Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.
