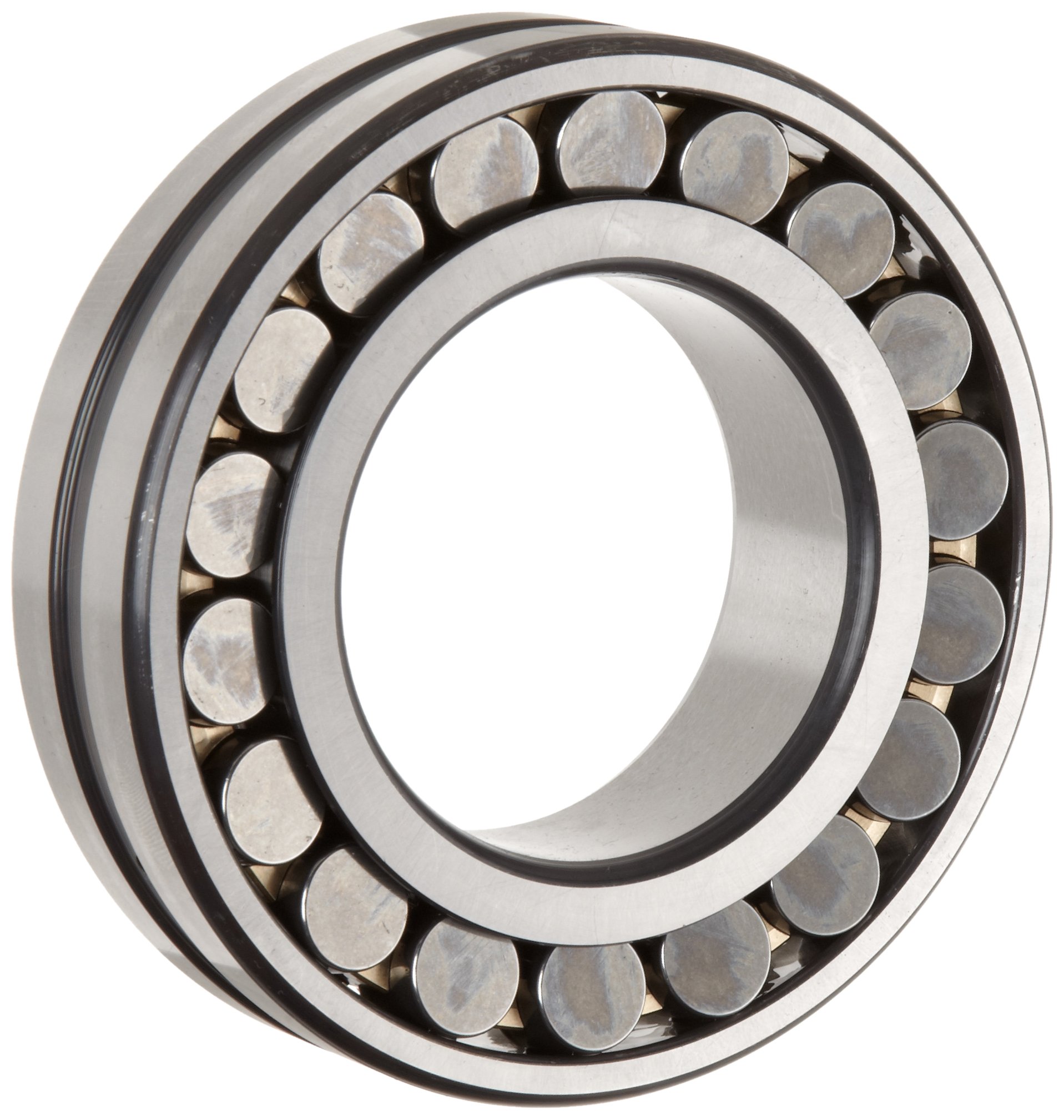

FAG E1 Series FAG Spherical Roller Bearing, Double Row, Reinforced Roller Set, Tapered Bore, Roller Guided Brass Cage, C3 Clearance, Metric

Be the first to review this item

ASIN B0064D7SMK

Specifications for this item
Manufacturer Series Number
E1 Series
Material Type
Brass/Bronze Cage
Brand Name
FAG Bearings

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Double row spherical roller bearing for applications that support radial and oscillating axial loads
  • C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F
  • Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft
  • Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
  • Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place

Product Description

This FAG double row spherical roller bearing with a brass cage is suitable for applications that support radial and oscillating axial loads. It has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than the standard CN (normal) clearance. This clearance allows for thermal expansion as the bearing supports radial loads as well as providing latitude for self-realignment and compensating for static and dynamic alignment errors. The bearing's two rows of symmetrically arranged barrel rollers, which are oriented on a concave raceway, are designed to support axial loads in either direction, including those with restricted diameter tolerances (as with an oscillating shaker conveyor). This bearing is rated "Light," making it applicable for use for average loads or where space is tight, it has a larger roller set than standard rollers for additional durability, and it can be used to a maximum operating temperature of 200 degrees C/392 degrees F. The bore is tapered with a standard 1:12 taper, giving the bearing the ability to compensate for a flexing shaft, or to fit on a tapered shaft. The inner and outer rings and barrel rollers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. The roller-guided solid brass cage prevents the barrel rollers from coming into contact with each other during use, reducing friction, vibration, and noise. The outer ring has a center groove with three holes spaced evenly around it for adding lubricants. Bearings in the E1 series have been manufactured under FAG’s improved engineering processes, resulting in a rating life that is more than double that of the same bearing from the E series. This spherical roller bearing is for use in various applications such as jaw crushers, impactors, cone crushers, and conveyors, among others.

Specifications

Main bearing dimensions DIN 635-2
Basic dynamic load ratings DIN ISO 281
Dimensional and geometric tolerances DIN 620-2, tolerance class PN
C3 radial internal clearance DIN 620-4 (ISO 5 753)
Through-hardening steel for inner and outer rings and rollers ISO 683-17
System for creating part numbers for rolling bearings DIN 623-1

Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.
