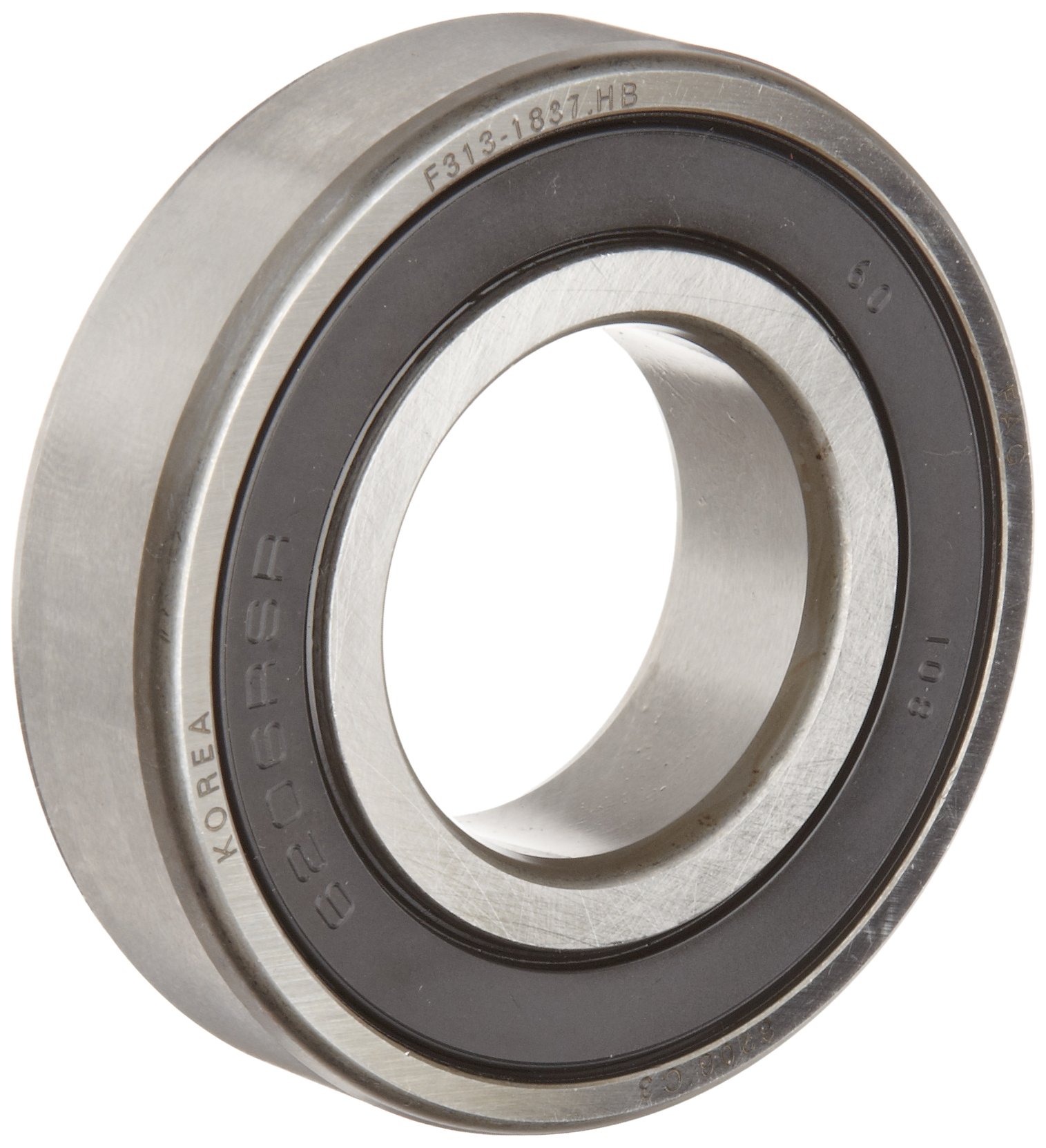

This FAG Light 6200 Series single row deep groove ball bearing with a sheet steel cage supports radial loads and axial loads in both directions. It is also suitable for high speed applications. This bearing has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than the standard CN (normal) clearance. It allows for thermal expansion as the bearing supports radial loads and its balls, operating in the deep raceway geometry, reduce rotational friction. This bearing is rated "Light," making it applicable for average radial loads and light axial loads where space is tight and shaft diameters are relatively large. It can be used to a maximum operating temperature of 120 degrees C/248 degrees F. The inner and outer rings and balls are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has a rubber seal on either side that is fastened to the outside ring, and extends over the rolling elements and to make contact with the inside ring, keeping out contaminants such as dirt and grime. The seals also hold lubricant applied during manufacturing that will last the lifetime of the bearing. This deep groove ball bearing is for use in various applications such as transmissions, motors, pumps, bicycles, and inline skates, among others.
|Main bearing dimensions||DIN 625-1|
|Basic dynamic load ratings||DIN ISO 281|
|C3 radial internal clearance||DIN 620-4 (ISO 5 753)|
|Shaft and housing tolerances||ISO 286|
|Through-hardening steel for inner and outer rings||ISO 683-17|
|Steel strip for cage||EN 10139, SAE J403|
|Load carrying capacity and life||DIN ISO 281 Appendix 1|
|System for creating part numbers for rolling bearings||DIN 623-1|
Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.
