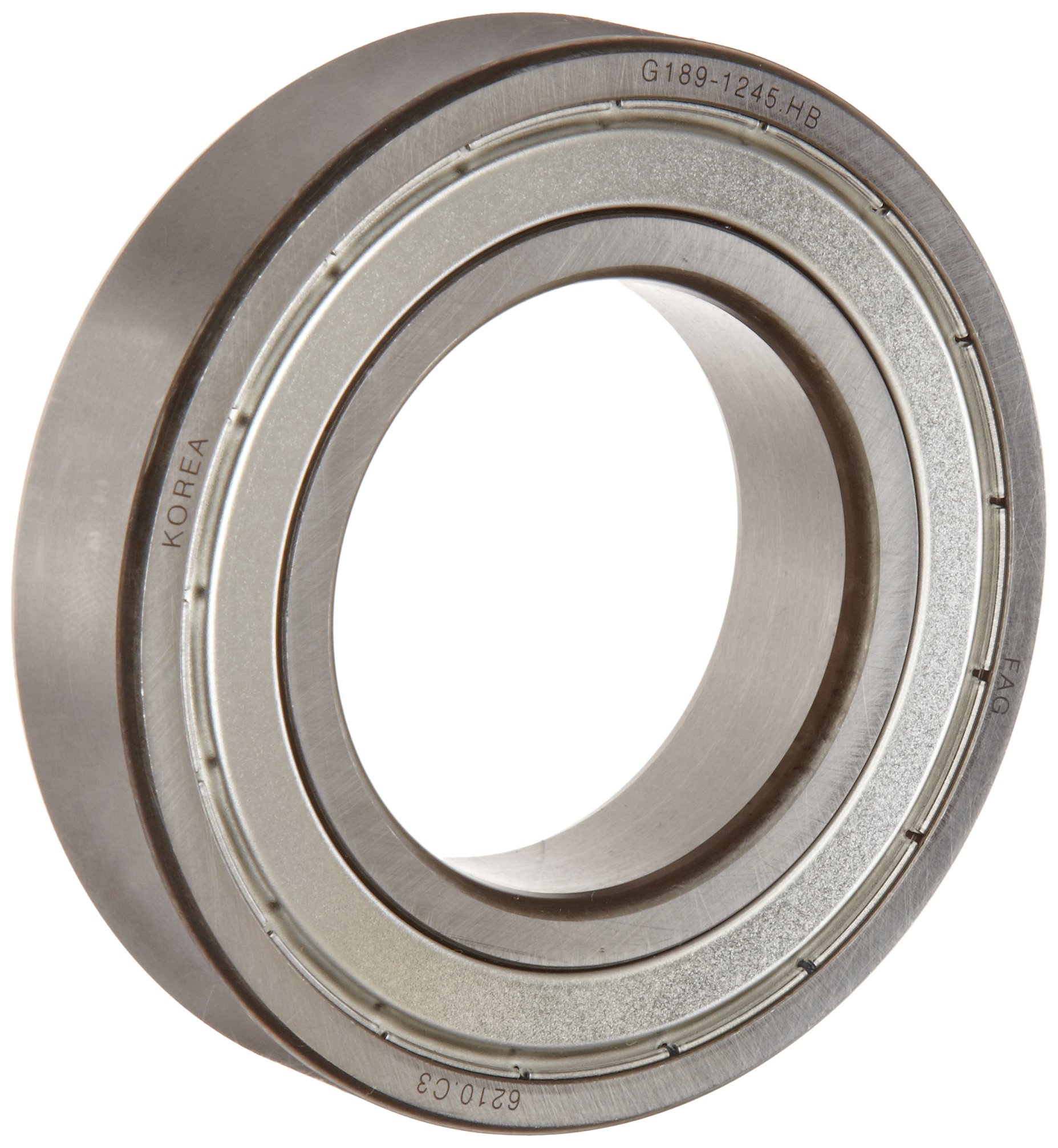

FAG Light 6200 Series Deep Groove Ball Bearing, Single Row, Sheet Steel Cage, Double Shielded, C3 Clearance, Metric

Be the first to review this item

ASIN B0064D7O8I

Specifications for this item
UNSPSC Code
31171504
Brand Name
FAG Bearings

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Deep groove geometry for high speeds and supporting both radial and axial loads
  • "Light" bearing design for use in limited space applications or for average loads
  • C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
  • Sheet steel cage evenly spaces balls for reduced friction, vibration, and noise
  • Metal shields on both sides of the bearing keep the lubricant in and contaminants out

Product Description

This FAG Light 6200 Series single row deep groove ball bearing with a sheet steel cage supports radial loads and axial loads in both directions. It is also suitable for high speed applications. This bearing has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than the standard CN (normal) clearance. It allows for thermal expansion as the bearing supports radial loads and the balls, operating in the deep raceway geometry, reduce rotational friction. This bearing is rated "Light," making it applicable for average radial loads and light axial loads where space is tight and shaft diameters are relatively large. It can be used to a maximum operating temperature of 120 degrees C/248 degrees F. The inner and outer rings and balls are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has a metal shield on either side that is fastened to the outside ring and extends over the rolling elements. The shields assist in keeping out contaminants such as dirt and grime and also help to hold in lubricant applied during manufacturing. This deep groove ball bearing is for use in various applications such as transmissions, motors, pumps, bicycles, and inline skates, among others.

Specifications Met

Main bearing dimensions DIN 625-1
Basic dynamic load ratings DIN ISO 281
C3 radial internal clearance DIN 620-4 (ISO 5 753)
Shaft and housing tolerances ISO 286
Through-hardening steel for inner and outer rings ISO 683-17
Steel strip for cage EN 10139, SAE J403
Load carrying capacity and life DIN ISO 281 Appendix 1
System for creating part numbers for rolling bearings DIN 623-1

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.
