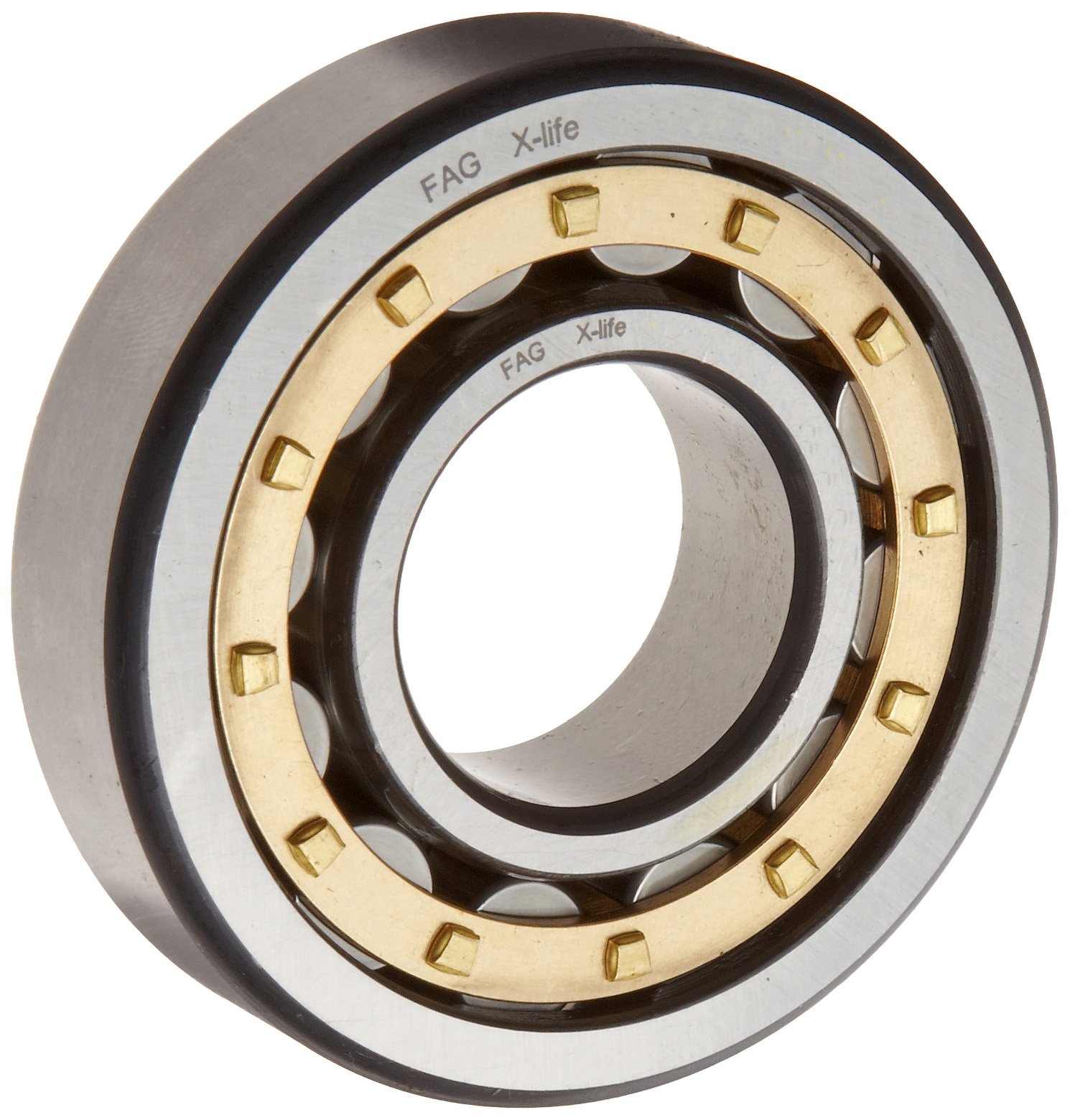

FAG Cylindrical Roller Bearing, Single Row, Semi-Locating, Reinforced Roller Set, Separable, Brass Cage, C3 Clearance, Metric

Be the first to review this item

ASIN B0064D7PR8

Specifications for this item
Material Type
Brass/Bronze Cage
UNSPSC Code
31171547
Brand Name
FAG Bearings

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single row cylindrical roller bearing for applications that support high radial loads
  • C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
  • Semi-locating bearing (two ribs on the outer ring, one rib on the inner ring) for supporting axial forces in one direction
  • Brass cage evenly spaces rollers for reduced friction, vibration, and noise
  • Removable inner ring in open bearing allows for lubrication in place

Product Description

This FAG single row cylindrical roller bearing with a brass cage and removable inner ring is suitable for applications that support high radial loads. It has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than CN (normal) and the press fit inner and outer rings can withstand a large temperature differential. This clearance allows for thermal expansion as the bearing supports radial loads and its cylindrical rollers reduce rotational friction. This cylindrical roller bearing can support heavier loads than bearings with comparable-sized ball bearings because the cylindrical shape of the rollers provides more surface area for distributing the load, and it also has a larger roller set than the standard roller design. This cylindrical roller bearing can be used to a maximum operating temperature of 150 degrees C/302 degrees F, although continuous operating temperatures should not exceed 120 degrees C/248 degrees F. The inner and outer rings and cylindrical rollers are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads. The bearing is semi-locating, with two ribs on the interior circumference of the outer ring and one rib on the exterior circumference of the inner ring, for supporting axial forces in one direction. The brass alloy cage prevents the rollers from coming into contact with each other during use, reducing friction, vibration, and noise. A removable inner ring in the open bearing allows for lubrication. This cylindrical bearing is for use in a broad range of applications where high radial loads are present such as in conveyer belts, traction motors, railway car axle boxes, and oilfield mud pumps, among others.

Specifications

Main bearing dimensions DIN 5412-1
Basic dynamic load ratings DIN ISO 281
C3 radial internal clearance DIN 620-4 (ISO 5 753)
Shaft and housing tolerances ISO 286
Through-hardening steel for inner and outer rings ISO 683-17
System for creating part numbers for rolling bearings DIN 623-1

Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

FAG manufactures a variety of bearings that meet International Organization for Standardization (ISO) and Deutsches Institut für Normung (DIN) standards for quality assurance. Founded in 1883, FAG is based in Schweinfurt, Germany.
