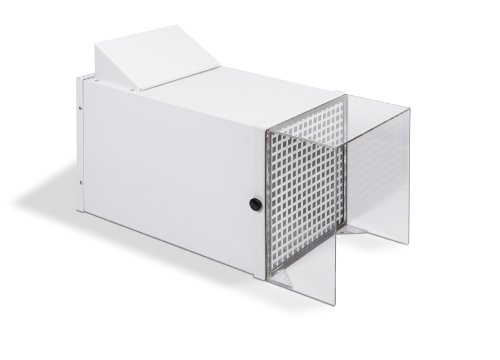

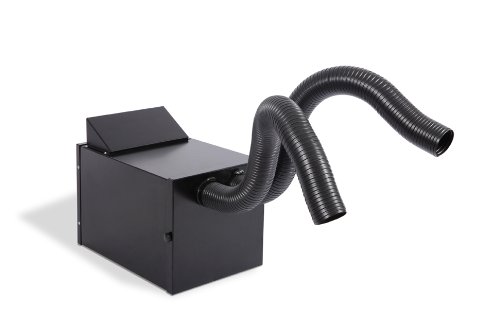

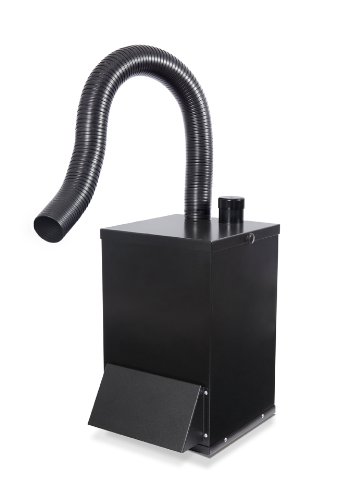

Extract-All S-987-2A Portable Compact Fume Extractor, Two-Arm System, Multiple Mount, 350 CFM

Be the first to review this item


Specifications for this item
Number of Items
Air Flow Capacity
350  Cubic Feet Per Minute
Part Number
Brand Name
Maximum Speed
2000  RPM
Mounting Type
Multiple Mount

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 14 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Noise level: 65 dBA at 12'
  • The system collects and filters smoke, dust, odors, and mist from a variety of applications
  • Arms are made of heavy-duty, chemical, abrasion, and heat resistant polypropylene with flame retardant characteristics
  • Orientation: Can be mounted horizontally or vertically; 3 year warranty
  • Cabinet: 18 Gauge Steel, polyurethane powder painted outside and inside

Package Details

Shipping Weight: 60 pounds
Package Size: 24 x 24 x 24 inches

Product Description

The Extract-All compact Fume Extraction System gives you a safer, healthier workplace by capturing and removing contaminants at the source. The system collects and filters smoke, dust, and odors from: soldering, heat bending, dental grinding, light welding, sanding and grinding, solvents, mixing powders and chemicals, wire stripping, jewelry buffing and many other light to moderate industrial and laboratory activities. This is a dual arm system for multiple users. Arms are made of heavy-duty, chemical, abrasion, and heat resistant polypropylene with flame retardant characteristics. Can withstand temperatures from -40 to 180 degree F. Reach is from 36" to 53". Arms have no internal supports which allows optimum airflow and performance. CFM is increased by up to 50 percent over internally supported arms. Extractor Arms are Flexible, Can be bent, twisted and turned easily without breaking. Self Supporting rigid enough to retain its shape. Expandable diameter can be increased to form a hood or decreased to form a nozzle simply by twisting hose by hand. Optional Slotted inlet cover can be used as a backdraft/downdraft pickup. Slotted inlet cover options include 6" deep full hood. Exhaust Air Deflector diverts clean air downward. Blower: 350W, 2.8 amps, 120/1/60, 2000 RPM, variable speed control, and power cord with plug. Typical motor life: 100,000 hours. Rated fan performance: 350 CFM at 0.5" E.S.P., 240 CFM at 2.0" E.S.P., 100 CFM at 2.75" E.S.P. Velocity at extractor arm inlets: 3500 FPM per arm. Velocity at grated inlet: 275 FPM. Please Remember to Choose a Filter Package to complete your system.
