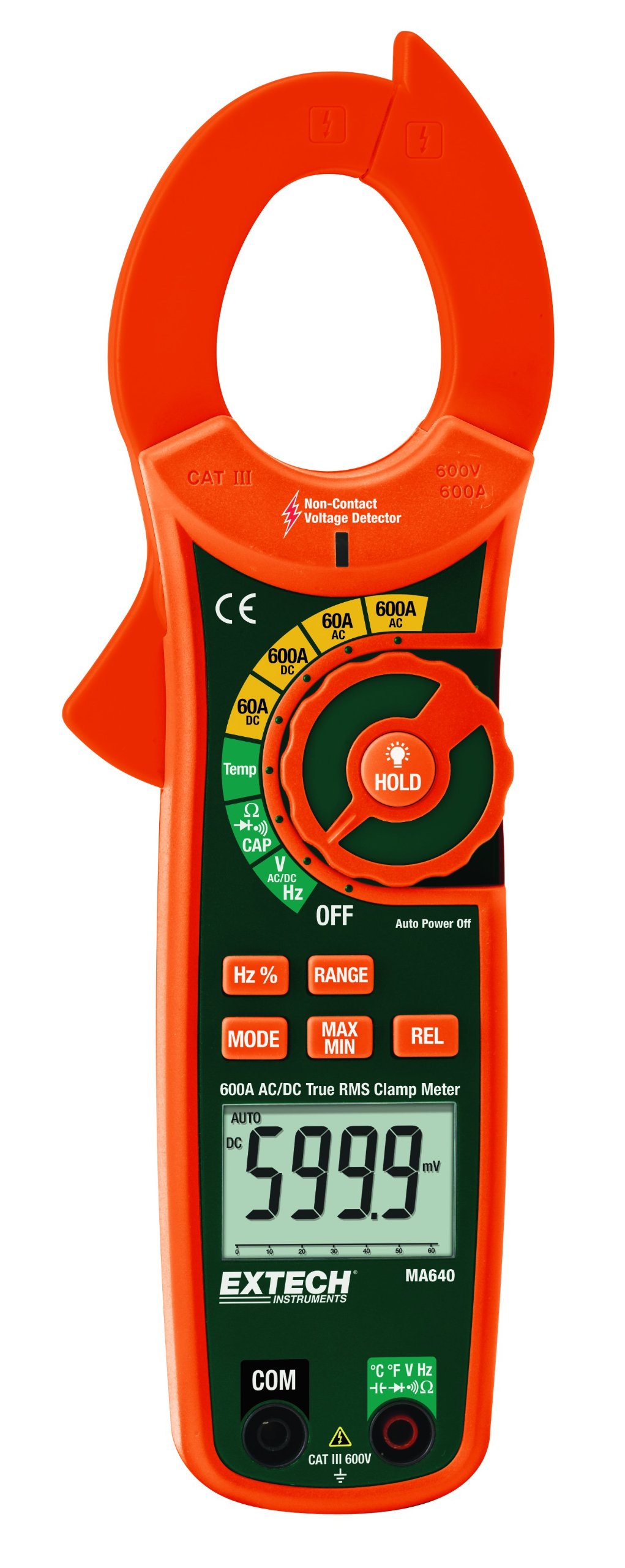

Extech MA640 True RMS AC/DC 600A Clamp Meter with Non-Contact Voltage Detector

Be the first to review this item

ASIN B003N3UO9I

Specifications for this item
Number of Items
1
Part Number
EXTECHMA640
UPC
793950376409
Brand Name
Extech
EAN
0793950376409
Warranty
1 Year
UNSPSC Code
41113676
Style Name
Uncalibrated

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Jul 31? Order in-stock items in the next 14 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Built-in non-contact Voltage detector with LED alert
  • 1.5" (40mm) jaw size for conductors up to 500MCM
  • 6000 count, backlit LCD display
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • ata Hold and MIN/MAX, Auto Power Off

Package Details

Shipping Weight: 1.35 pounds
Package Size: 9.5 x 5.2 x 2.4 inches

Product Description

600A True RMS AC/DC Clamp Meter + NCV

The right-sized Extech MA640 600A True RMS autoranging AC/DC clamp meter offers plant maintenance techs, electrical troubleshooters, and DIYers a test instrument that delivers a high level of performance and value. In addition to a host of advanced multimeter and current measurement capabilities, it also features a built-in, non-contact voltage (NCV) detector.

Ergonomic & Versatile

The affordable clamp meter is compact and easy to hold. Whether you are performing amp readings in a heavy-duty industrial setting or doing commercial electrical work, the 600A rating and ample 1.5 inches (40mm) jaw opening can accommodate most jobs, swallowing conductors up to 750 MCM. The large, illuminated, dual display is useful in poorly lit job sites, and the 4-digit (6,000 count) readout is complemented by a bargraph display to simulate an analog display. You can operate the meter with one hand, having a thumb-dial selector that is ergonomically placed off the side of the meter. The heart of the MA640 is an advanced digital multimeter. You can select auto- or manual-ranging and measurement functions cover all types of troubleshooting over and above noninvasive current probe measurements: voltage, resistance, capacitance, frequency, duty cycle, diode and continuity tests. Even measure temperature with the supplied Type K bead wire probe. Users can also select one of several one-button functions: press HOLD to freeze a reading on the LCD; MAX/MIN tracks and displays maximum and minimum values (useful for blind measurements); and REL activates Relative mode for "zeroing out" the meter, useful for improving the accuracy of DC current measurements.

True RMS Compensates for Distortion from Electronic Devices

It can be very difficult to make accurate current and voltage readings in industrial and commercial applications when electronic devices are present. Fluorescent lights, motor drives, computer power supplies, and other electronic systems can distort the AC waveform, making it hard for averaging meters to get an accurate read. True RMS uses a more advanced formula to adjust for this kind of distortion. One important safety tool that is built in to the MA640 is a non-contact voltage (NCV) detector, which quickly detects the presence of voltage on live wires and alerts users with a red LED indicator. The MA640 measures 9.1 x 3 x 1.5 inches (HxWxD) and comes with test leads, 9-volt battery, carrying case, user manual, and manufacturer's one-year limited warranty on parts and labor. NIST certification is also available.


MA640 Features At-a-Glance
  • 600 amp AC/DC clamp meter
  • True RMS, Autoranging
  • Built-in NCV detector
  • Hold, maximum/minimum, relative data functions
  • Thermocouple temperature
