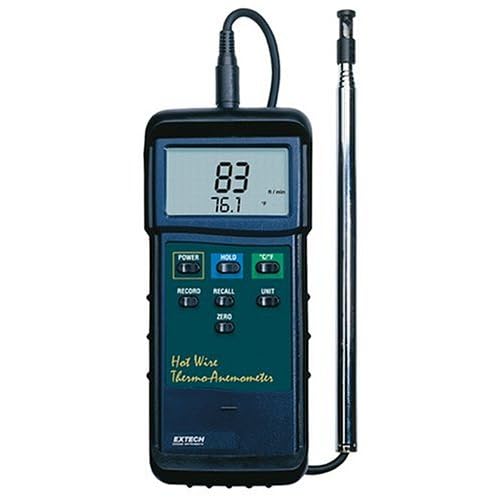

Extech 407123 Hot Wire Thermo Anemometer

Be the first to review this item

ASIN B00023RVO8

Specifications for this item
Number of Items
1
Part Number
407123
Item Weight
1 pounds
UPC
793950401231
Brand Name
Extech
EAN
0793950401231
Warranty
1 year for meter, 6 months for probe
UNSPSC Code
41113676
Style Name
Standard

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Telescoping probe is designed to fit into HVAC ducts and small openings
  • Probe extends to 4 feet (1.22m)
  • Measuring range 40 to 3940 feet/minute
  • Choice of readings in feet/min, meters/second, kM/hour, MPH or knots
  • Min/Max and Data Hold

Package Details

Shipping Weight: 1.7 pounds
Package Size: 11.9 x 6.4 x 2.9 inches

Product Description

Hot Wire Thermo-Anemometer

This Heavy Duty Hot Wire Thermo-Anemometer uses a telescoping probe (extends up to four feet) with a 0.5 inch diameter sensor that's ideal for use in ducts and ventilating systems.

Applications

  • HVAC installation, repair, diagnostics, and optimization
  • Positive pressure tests in clean rooms
  • Fume hood testing, installation, and verification
  • Automobile engines analysis, passenger compartment tests, and aerodynamic testing
  • Ionizer flow output monitoring
  • Ventilation system installation, servicing, and analysis
  • Environmental wind and temperature testing/analysis
  • Boiler rooms
  • Plant/Facilities Maintenance.

Additional Features

  • Large, 1.4 inch dual LCD simultaneously displays Air Velocity (ft/min. m/sec, km/h, MPH, knots) and Temperature up to 122 degrees F
  • Additional functions include Data Hold, Min/Max, and a Zero function for the display
  • The built-in RS-232 interface can be used with optional Data Acquisition software (407001) or an optional datalogger (380340) to capture and download measurements to your PC for further analysis

What’s In The Box:

  • telescoping probe with cable
  • Protective holster
  • Six AAA batteries
  • User manual
How Does An Anemometer Measure Moving Air?

Anemometers measure moving air with a rotary sensor that acts very much like a weathervane and can be likened to the blades of a fan. The vane freely rotates in response to airflow, and as the air moves through the vane the blades turn in proportion to the speed of the air.

What Is CFM / CMM?

Cubic Feet per Minute (CFM) or Cubic Meters per Minute (CMM) are units of measure for air volume measurements. This is a measurement of the quantity of moving air through an air duct, passageway, or enclosure. In order to determine this, the area of the duct must be measured. The area value (in ft2 or m2) is entered by the user, by pushbutton or keypad into the meter and an air velocity is determined.

What Is The Difference Between Vane And Hot-Wire Anemometers?

Vane Anemometers use a remote fan (vane) that freely rotates in response to air flow. The vane movement equates to air velocity readings that can be displayed on a meter. The Hot Wire Anemometer sensor is a special wire whose resistance fluctuations are translated into air velocity readings that can be displayed on a meter.

Which Applications Are Best For Vane And Hot-Wire Types?

Hot-Wire Anemometers offer a slim sensor (0.5" diameter), well suited for accessing small openings and crevices (engine compartments and small ventilating systems). Hot-Wire Anemometers don’t have vulnerable, movable mechanical parts that can wear or become damaged over time. Vane Anemometers are lower cost and allow easy visual inspection of the moving vane (great for air duct and fume hood applications).

Related Products

407119
Hot Wire CFM/CMM Thermo-Anemometer

Heavy Duty CFM Hot Wire Thermo-Anemometer uses a telescoping probe (extends up to three feet) that's ideal for use in ducts and ventilating systems. It can accurately measure Air Flow (CFM/CMM), Air Velocity and Temperature. Air Flow can be displayed as an instantaneous value or up to a 20-point average. Additional functions include: Data Hold, Min/Max, and Auto power off. The built-in RS-232 interface can be used with optional Data Acquisition software (407001) or an optional datalogger (380340) to capture and download measurements to your PC for further analysis. Comes complete with telescoping probe with 5.5-foot cable and four AA batteries.

SDL350
Hot Wire Thermo-Anemometer/Datalogger

Records data on an SD card in MS Excel format. Air Velocity/Air Flow meter with telescoping probe designed to fit into HVAC ducts and other small openings. Telescoping probe extends up to 7.05ft (215cm) maximum length with cable. Adjustable data sampling rate: 1 to 3600 seconds. You can manually store/recall up to 99 readings and automatically datalog up to 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements (optional probe required). Large (9999 count) LCD displays Air Velocity or Air Flow and Temperature simultaneously. Record/Recall MIN, MAX, Data Hold and Auto power off. Built-in PC interface. Complete with six AA batteries, SD card, telescoping probe with cable, and hard carrying case
