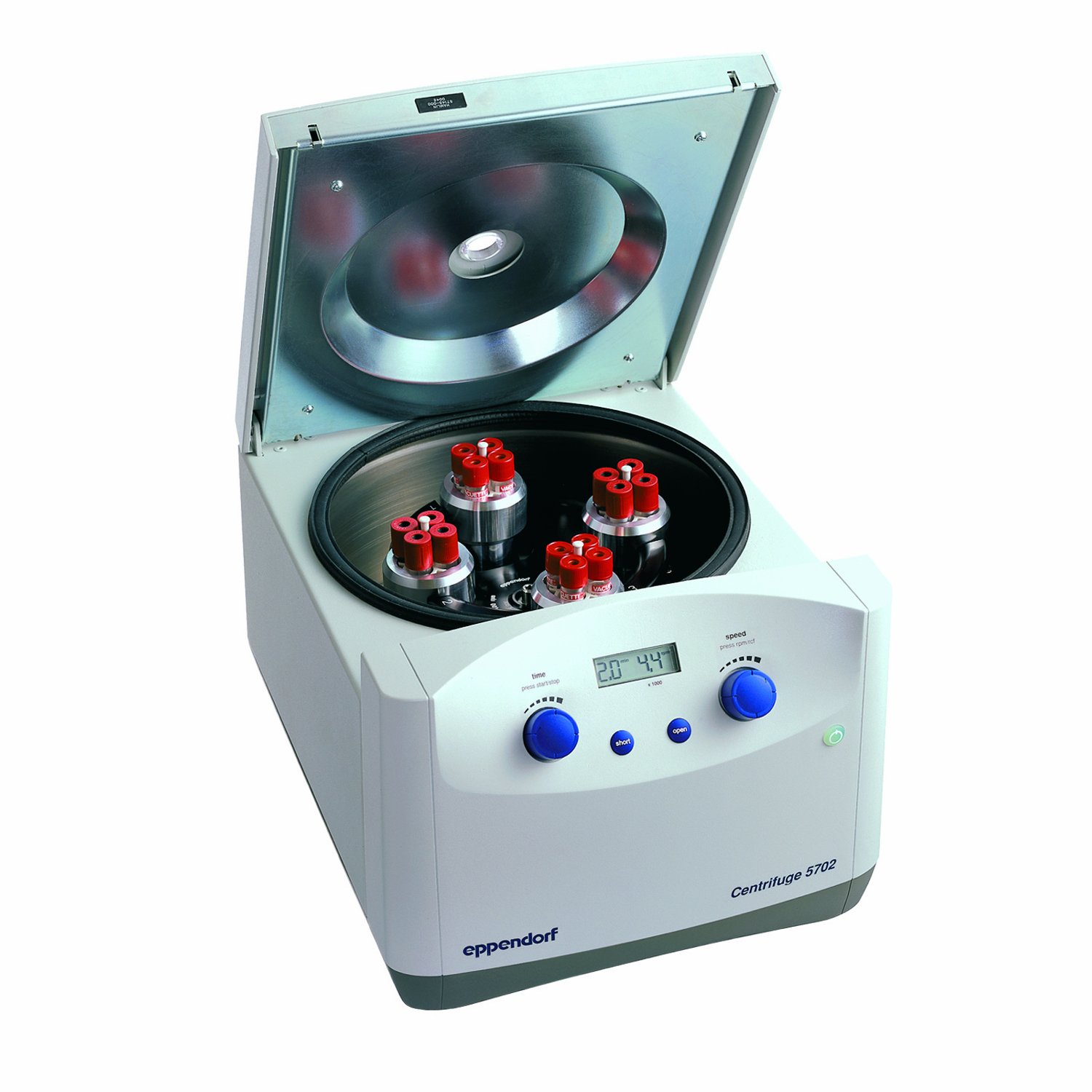

Eppendorf 022629883 5702 Centrifuge with 4 x 100mL Swing Bucket Rotor, 100-4,400rpm Speed, 120V

Be the first to review this item


Product Specifications
Part Number
Number of Items
Maximum Speed
4400  RPM
Minimum Speed
100  RPM
Operating Frequency
60  Hz
Overall Height
9.5  inches
Overall Length
15.6  inches
Overall Width
12.5  inches
Size Name
5702 Model, 120V
200  Watts
Specification for this product family (See all  products)
Brand Name

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 5 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Variable-speed centrifuge with speeds ranging from 100 to 4,400 rpm
  • Compatible with six interchangeable rotors (sold separately) and can accommodate up to four 100mL tubes
  • Digital speed control in both rpm and RCF
  • Rotor imbalance is detected for reduced wear, noise, and vibration
  • Lid lock prevents the unit from being opened while the centrifuge is running for increased safety

Package Details

Shipping Weight: 54.4 pounds
Package Size: 20.8 x 19.6 x 15.5 inches

Product Description

The Eppendorf 5702 centrifuge runs at speeds from 100 to 4,400 rpm, is compatible with six interchangeable rotors (sold separately) for spinning commonly used tubes, and holds up to four 100mL tubes. It provides digital control of speed in rpm or relative centrifugal force (RCF), and has LCD readouts to show all settings. The centrifuge automatically shuts off if rotor imbalance is detected for reduced wear, noise, and vibration, and an electronic lid lock prevents the unit from being opened during operation for increased safety. It can store two centrifugation programs (including speed, time, and deceleration parameters) for operating efficiency and repeatability of results. This low-speed centrifuge is used in research and clinical laboratories for blood, urine, and cell separations.

The operation of this centrifuge can be timed from 0.5 to 99 minutes, or set to continuous. The unit is non-refrigerated and does not have temperature control features. This model is available with a rotor.

Maximum speed4,400 revolutions per minute (rpm)
Maximum relative centrifugal force (RCF)3,000 x g
Timer0.5 to 99 minutes or continuous
Maximum noise level58dBA
Power120V 60Hz
Dimensions24 x 32 x 40cm /9.5 x 12.5 x 15.6 inches (H x W x D)
RotorsSold separately
Maximum rotor capacitySwinging-bucket: 4 x 100ml; Fixed-angle: 30 x 15mL, 24 x 1.5/2.0mL

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

A centrifuge is used to spin fluids of different densities to separate various parts, commonly blood and DNA samples. Centrifuges are composed of the main body or housing and a spinning rotor. Tubes of cellular material suspended in liquid are inserted into the rotor and spun at various speeds to separate components. Centrifuges are used in medical, industrial, and research laboratories, as well as academic and clinical settings.

Eppendorf manufactures instruments for cell manipulation and automated devices for liquid handling, for use in life science research laboratories. The company, found in 1945, is headquartered in Hamburg, Germany.

What's in the Box?
  • Eppendorf 5702 centrifuge
  • Rotor (with 022628001, 022628102, 022629883, and 022629888)
  • (4) Tube adapters (with 022628001 and 022628102)
  • Replacement fuse set
  • Rotor key
  • Power cord
  • Instructions
