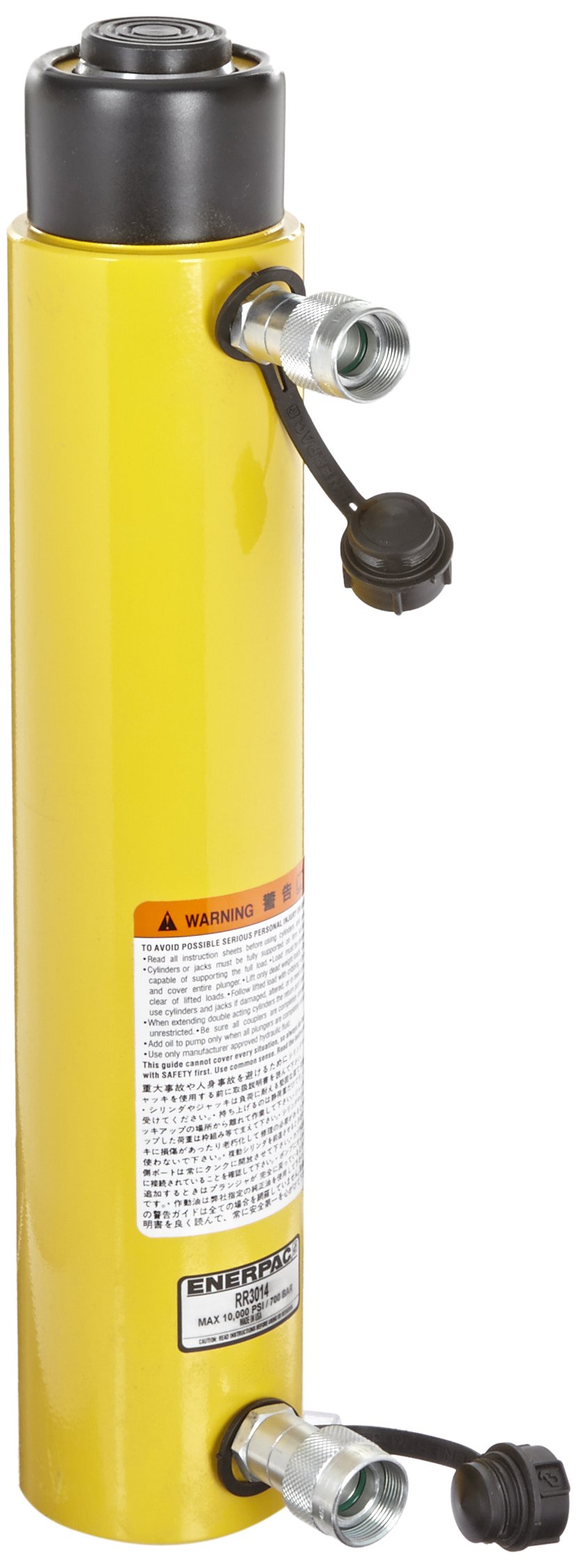

Enerpac RR-3014 Double-Acting Hydraulic Cylinder with 30 Ton Capacity, Double Port, 14.50" Stroke Length

Be the first to review this item

ASIN B001HWDQB0

Specifications for this item
Number of Items
1
Part Number
RR3014
UPC
662005303335
Brand Name
Enerpac
EAN
0662005303335
UNSPSC Code
27121602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, May 5? Order in-stock items in the next 2 hrs 42 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Double-acting hydraulic cylinder with two ports to extend and retract the piston rod
  • Precision-designed round body with 14.50"-stroke single piston for use in high-cycle industrial linear applications
  • Integrated safety valve to prevent over pressurization
  • 30-ton cylinder capacity for lifting or pushing
  • Quick-connect CR-400 female coupler for connection to a CH-604 male coupler (sold separately)

Package Details

Shipping Weight: 62.45 pounds
Package Size: 24.9 x 8.6 x 7.7 inches

Product Description

This Enerpac RR-3014 double-acting hydraulic cylinder with 30-ton capacity and 14.50" stroke has been precision designed for use in high-cycle industrial linear applications. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. The integrated safety valve helps prevent over pressurization. Each port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately). Baked enamel body finish provides corrosion resistance. The plunger wiper helps inhibit contamination in the cylinder, and the removable hardened plunger saddle covers the plunger mounting threads and protects the plunger during lifting operations. The collar and plunger are threaded for attaching accessories (sold separately). The base has threaded holes for mounting.

Specifications
Cylinder capacity30 tons
Stroke length14.50 inches
Maximum cylinder capacity (push/pull)32.5 tons/6.0 tons
Effective area (push/pull)6.51 square inches/3.00 square inches
Oil capacity (push/pull)92.70 cubic inches/43.00 cubic inches
Cylinder bore diameter2.88 inches
Collapsed height21.63 inches
Extended height36.13 inches
Outside diameter4.00 inches
Weight64 lb.

Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
