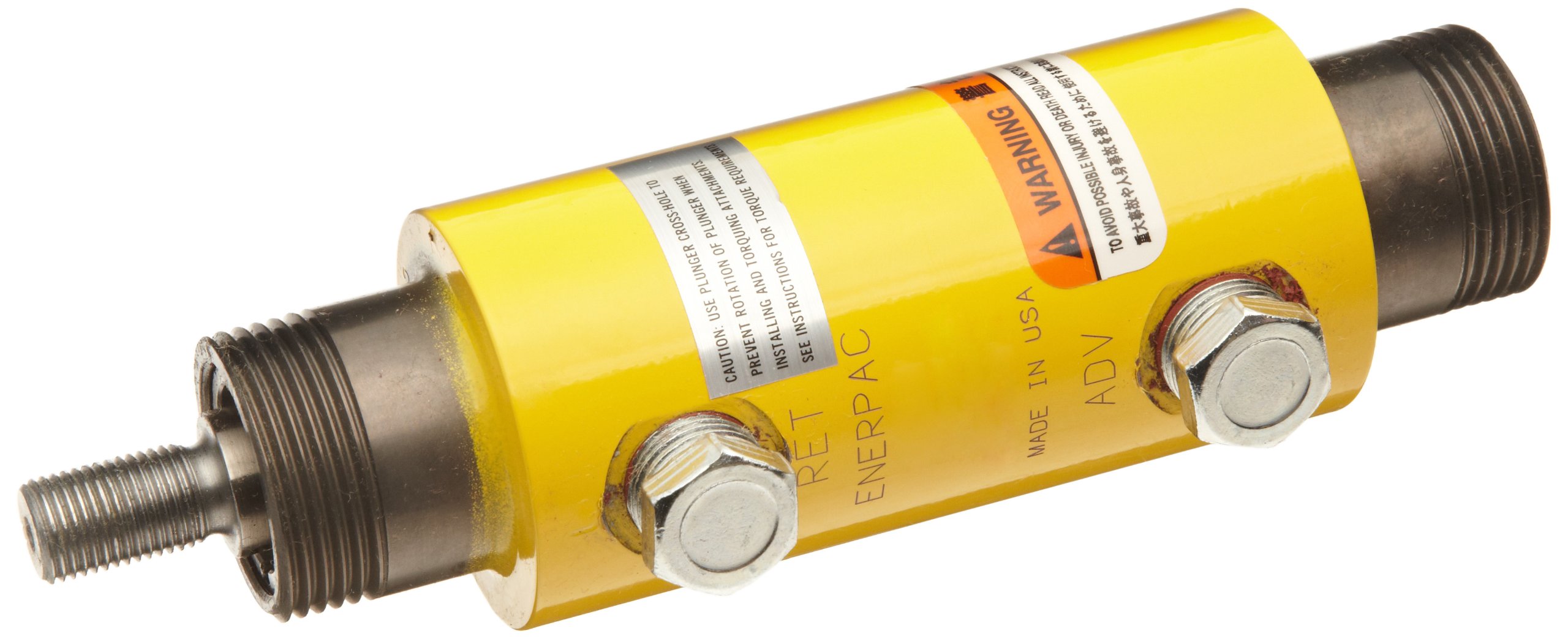

Enerpac RD-41 Double-Acting Precision Hydraulic Cylinder with 4 Ton Capacity, Double Port, 1.13" Stroke Length

Be the first to review this item

ASIN B001HWFN16

Specifications for this item
Number of Items
1
Part Number
RD41
UPC
662005305193
Brand Name
Enerpac
EAN
0662005305193
UNSPSC Code
27121602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 16 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Double-acting hydraulic cylinder with two ports to extend and retract the 1.13"-stroke piston rod
  • Precision movement for use in production applications
  • Baked enamel finish for corrosion resistance
  • 4-ton cylinder capacity for lifting or pushing
  • Accepts attachments (sold separately) for foot and flange mounting

Package Details

Shipping Weight: 4.7 pounds
Package Size: 10.2 x 4 x 4 inches

Product Description

This Enerpac RD-41 double-acting precision hydraulic cylinder with 4-ton capacity and 1.13" stroke has precision movement for use in production applications. The double-acting hydraulic cylinder uses liquid pumped through two ports on opposite ends of the cylinder barrel to push out and retract the piston rod to produce continued movement. Each port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately). Baked enamel body finish provides corrosion resistance. The plunger wiper helps inhibit contamination in the cylinder. The cylinder can be foot or flange mounted using attachments (sold separately).

Specifications
Cylinder capacity4 tons
Stroke length1.13 inches
Maximum cylinder capacity (advance/retract)4 tons/2 tons
Effective area (advance/retract)0.79 square inches/0.34 square inches
Oil capacity (advance/retract)0.88 cubic inches/0.39 cubic inches
Cylinder bore diameter1.00 inches
Collapsed height7.31 inches
Extended height8.44 inches
Outside diameter2.00 inches
Weight4.8 lb.

Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
