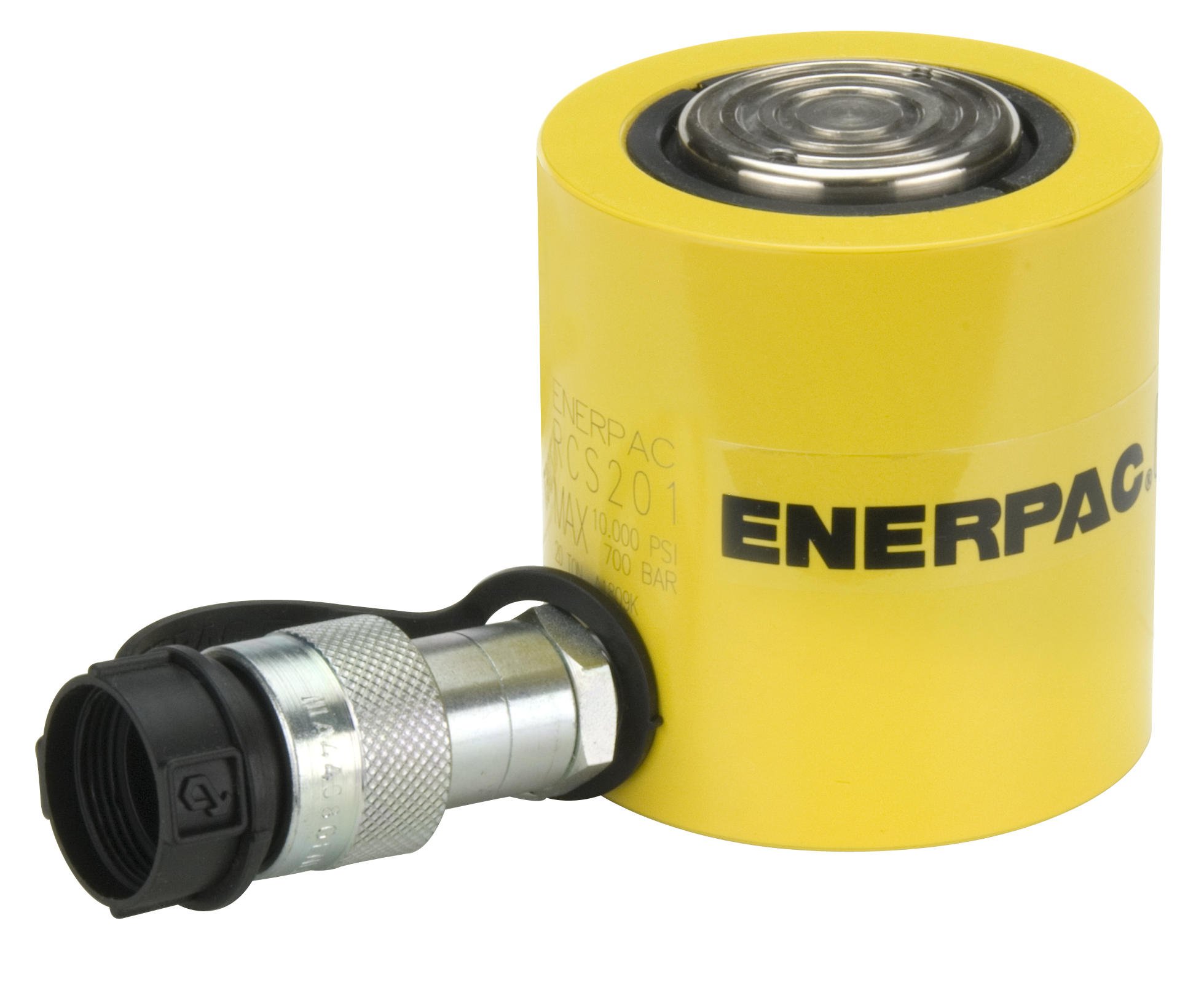

Enerpac RCS-201 Single-Acting Low-Height Hydraulic Cylinder with 20 Ton Capacity, Single Port, 1.75" Stroke Length

Be the first to review this item

ASIN B001HWC4OA

Specifications for this item
Number of Items
1
Part Number
RCS201
Item Weight
11 pounds
UPC
662005302109
Brand Name
Enerpac
EAN
0662005302109
UNSPSC Code
27121602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 10 hrs 23 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-acting hydraulic cylinder with one port and spring return of single piston rod after 1.75" stroke
  • Low-profile body for use in confined spaces
  • Baked enamel finish for corrosion resistance
  • 20-ton cylinder capacity for lifting or pushing
  • Quick-connect CR-400 female coupler for connection to a CH-604 male coupler (sold separately)

Package Details

Shipping Weight: 11.15 pounds
Package Size: 9 x 6.5 x 6.5 inches

Product Description

This Enerpac RCS-201 single-acting low-height hydraulic cylinder with 20-ton capacity and 1.75" stroke has a one port, spring return of the single piston rod, and a low-profile body for use in confined spaces. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and an internal spring for rod retraction to produce continued movement. The port is a quick-connect CR-400 female coupler for use with a CH-605 male coupler (sold separately), and the included dust cap covers the port when not in use. The body has a baked enamel finish and the steel plunger is plated for corrosion resistance. The plunger wiper helps inhibit contamination in the cylinder, and the grooved plunger end has threaded holes to enable use of a tilt saddle (sold separately).

Specifications
Cylinder capacity20 tons (22.1 maximum)
Stroke length1.75 inches
Effective area4.43 square inches
Oil capacity7.75 cubic inches
Cylinder bore diameter2.38 inches
Collapsed height3.88 inches
Extended height5.63 inches
Outside diameter3.63 inches
Weight11 lb.

Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
