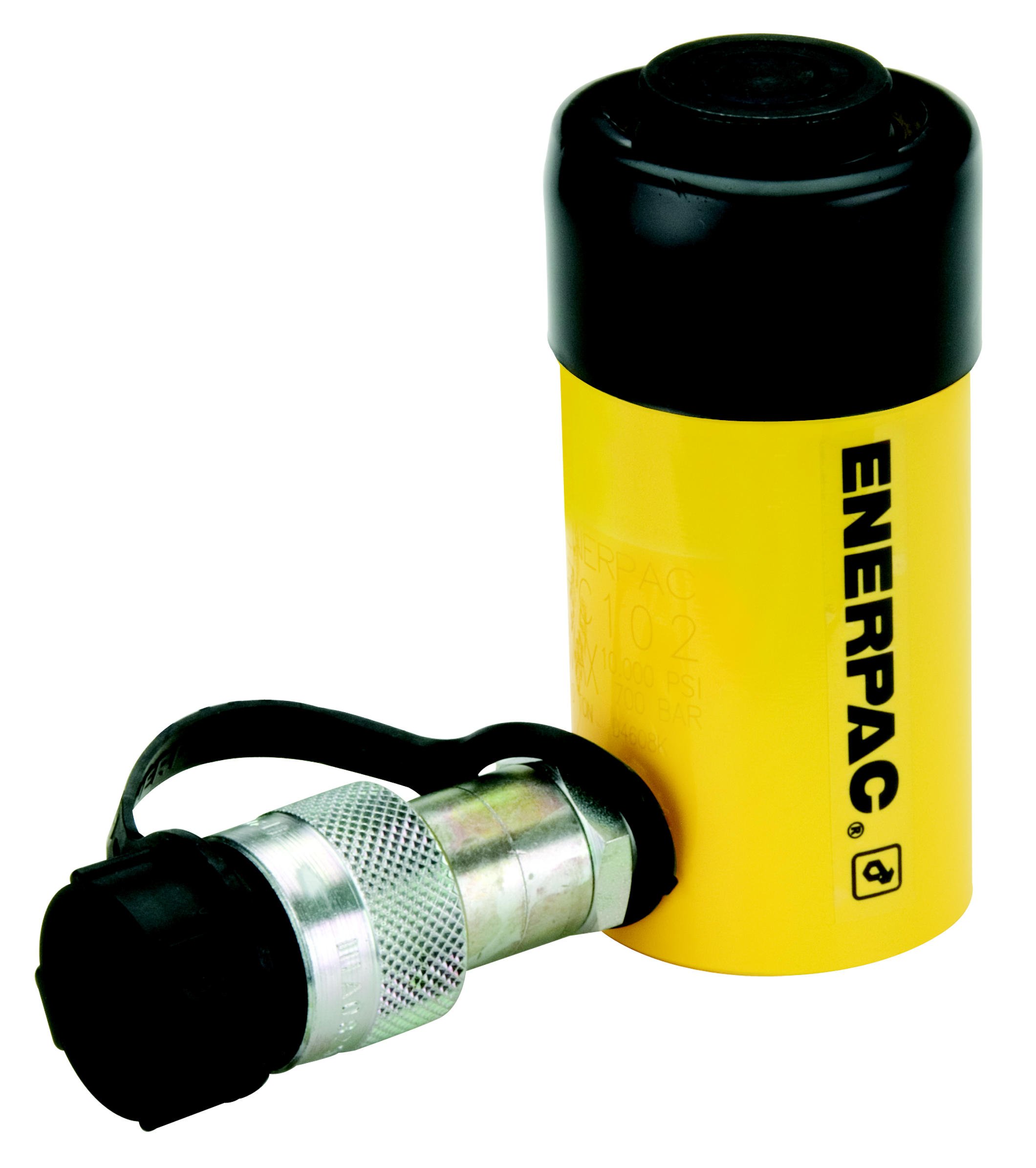

Enerpac RC-104 Single-Acting Alloy Steel Hydraulic Cylinder with 10 Ton Capacity, Single Port, 4.13" Stroke

Be the first to review this item

ASIN B001HWADE8

Specifications for this item
Number of Items
1
Material Type
Alloy Steel
Part Number
RC104
Item Weight
7.2 pounds
UPC
662005300808
Brand Name
Enerpac
EAN
0662005300808
UNSPSC Code
27121602

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Apr 27? Order in-stock items in the next 9 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-acting hydraulic cylinder with one port and pretensioned spring return of piston rod after 4.13" stroke
  • Round body with single piston rod for use in general purpose applications in any position
  • High-strength alloy steel with baked enamel finish for corrosion resistance
  • 10-ton cylinder capacity for lifting or pushing
  • Quick-connect CR-400 female coupler for connection to a CH-604 male coupler (sold separately)

Package Details

Shipping Weight: 7.2 pounds
Package Size: 9.2 x 5.9 x 3.5 inches

Product Description

This Enerpac RC-104 single-acting alloy steel hydraulic cylinder with 10-ton capacity has a round body with one port and spring-return of the single piston rod with 4.13" stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement. A built-in stop ring prevents the plunger from extending beyond the stroke length, assists in absorbing side loads, and can endure the full capacity of the cylinder. The plunger wiper helps inhibit contamination in the cylinder, and the removable grooved plunger saddle covers the plunger mounting threads and protects the plunger during lifting operations. The GR2 bearings reduce wear and help prevent jamming and rod over-extension by absorbing eccentric load stresses. The port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately), and the included dust cap covers the port when not in use. The high-strength alloy steel body has a baked enamel finish for corrosion resistance in harsh environments.

Specifications
Cylinder capacity10 tons (11.2 maximum)
Stroke length4.13 inches
Effective area2.24 square inches
Oil capacity9.23 cubic inches
Cylinder bore diameter1.69 inches
Collapsed height6.75 inches
Extended height10.88 inches
Outside diameter2.25 inches
Weight7.2 lb.

Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
