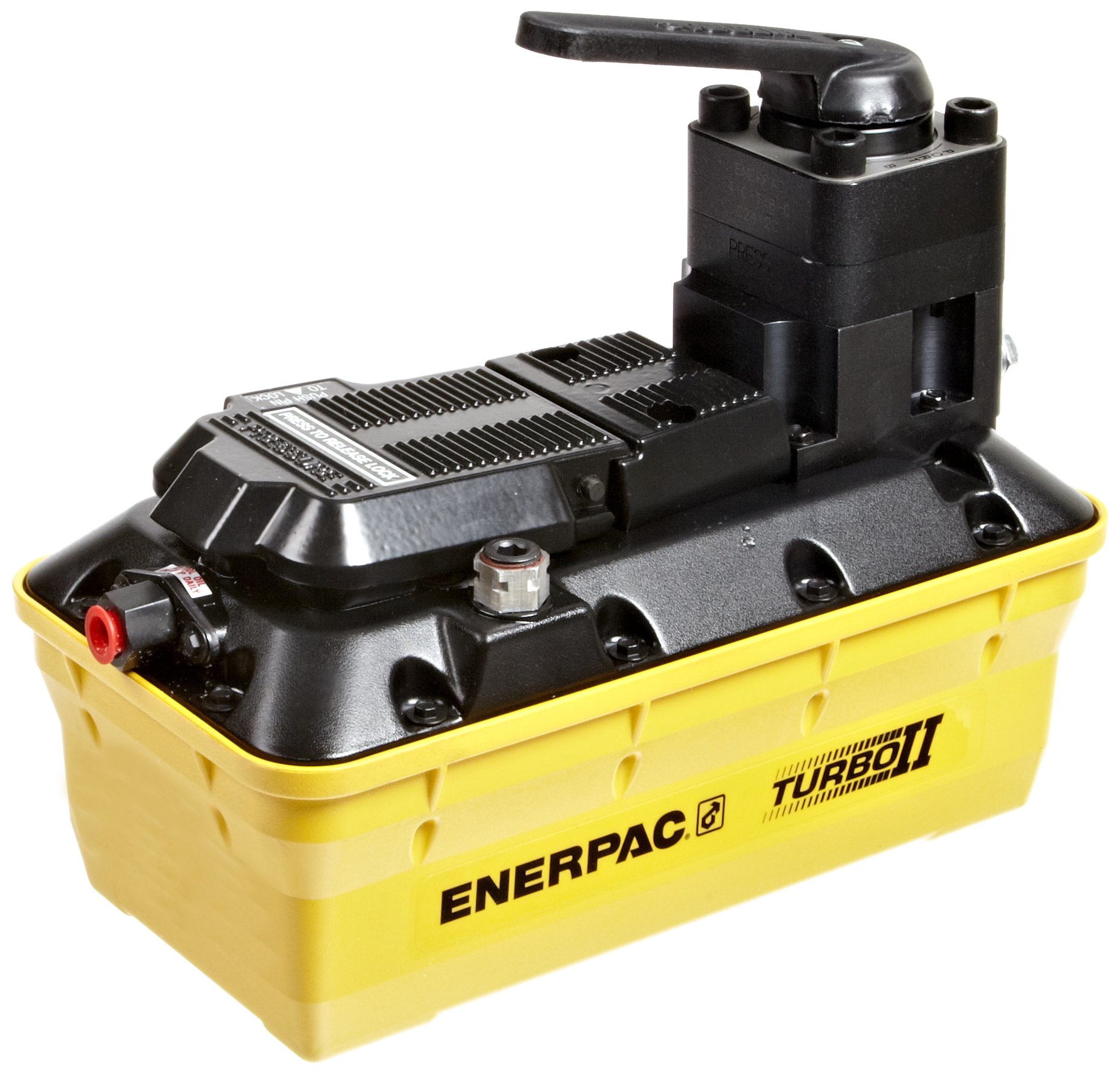

Enerpac PAMG-1402N Turbo II Air Hydraulic Pump with 4 Way Manual Valve and 2 Liter Reservoir

Be the first to review this item

ASIN B001HW88BI

Specifications for this item
Number of Items
1
Part Number
PAMG-1402N
UPC
662005118755
Brand Name
Enerpac
EAN
0662005118755
UNSPSC Code
40151533

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 28 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Hydraulic air pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in settings where compressed air is the preferred power source
  • Four-way control valve for advancing, retracting, and holding a double-acting cylinder
  • Maximum operating pressure of 10,000 pounds per square inch (psi) at 85 psi inlet pressure
  • Two-speed pump requires fewer cycles to move a load than a similarly rated single-speed pump, increasing productivity
  • Pump is controlled by a treadle that can be locked for continuous use

Package Details

Shipping Weight: 21.45 pounds
Package Size: 15.4 x 12.2 x 9 inches

Product Description

The Enerpac PAMG-1402N Turbo II two-speed hydraulic air pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in plant maintenance, fabrication, production, bolting, vehicle repair, and other applications where compressed air is the preferred power source. It has a four-way control valve for advancing, retracting, and holding a double-acting cylinder. It has an inlet air-pressure range of 25 to 125 psi and can start at low pressure. This two-speed pump requires fewer cycles to move a load than a similarly rated single-speed pump, increasing productivity. The pump is controlled by a treadle that can be locked for continuous operation. An internal pressure relief valve helps protect the pump from overload. The cast aluminum air motor resists corrosion and wear, and the motor and one-piece piston are designed to minimize air consumption. The motor assembly is fully serviceable, and the reinforced reservoir can withstand harsh conditions. The pump has a return-to-tank port for remote valve applications. The pump has 3/8" and 1/4" National Pipe Taper (NPT) threads ports for connecting to an air supply or attaching a hose or gauge (sold separately).

Specifications

Maximum operating pressure, at 85 psi inlet pressure10,000 pounds per square inch (psi)
Maximum output flow rate, per minute, at 100 psi60 cubic inches
Maximum output flow rate, per minute, at 10,000 psi10 cubic inches
Usable oil capacity127 cubic inches
Inlet air-pressure range25 to 125 psi
Air consumption, at 100 psi12 standard cubic feet per minute (scfm)
Hydraulic air ratio100:1
Maximum operating noise level76 decibels (A)
Valve type4-way manual
Weight24 lb.
Dimensions10.50 x 6.49 x 12.60 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.

Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
