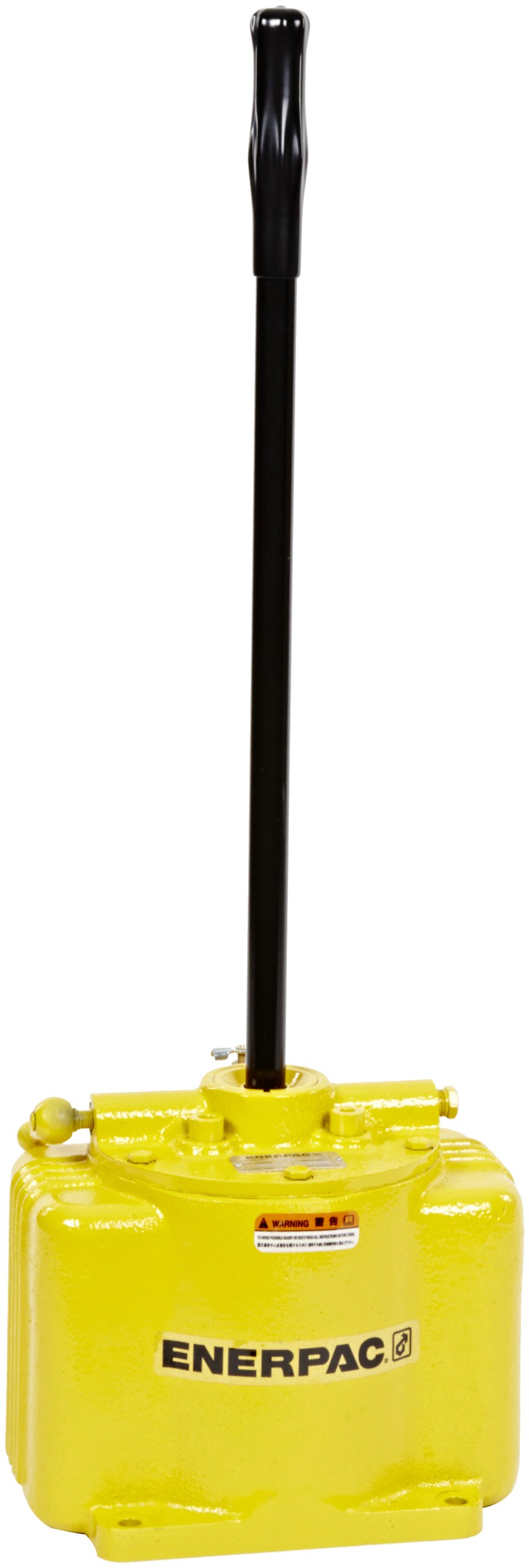

Enerpac P-50 Single Speed Low Pressure Hand pump with 5000 Pounds Per Square Inch

Be the first to review this item

ASIN B002M3OEDM

Specifications for this item
Number of Items
1
Part Number
P-50
Item Weight
34 pounds
UPC
662005107704
Brand Name
Enerpac
EAN
0662005107704
UNSPSC Code
40151533

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 22? Order in-stock items in the next 15 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Low-pressure hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
  • Advances and releases a single-acting cylinder
  • Maximum operating pressure of 5,000 pounds per square inch (psi)
  • Single-speed pump for applications with a constantly applied load
  • Pumps oil using both forward and reverse handle strokes, improving efficiency when there is limited mounting space

Package Details

Shipping Weight: 38.55 pounds
Package Size: 21.8 x 10.4 x 7.3 inches

Product Description

The Enerpac P-50 low-pressure, single-speed hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This single-speed hand pump is for applications with a constantly applied load. It pumps oil using both forward and reverse handle strokes, which improves efficiency when there is limited mounting space. An external load release valve and internal pressure relief valve help protect the pump from overload. The pump can be operated in either the horizontal or vertical position. The pump has a 1/4" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).

Specifications

Maximum operating pressure5,000 psi
Maximum oil displacement, per stroke0.29 cubic inch
Usable oil capacity200 cubic inches
Piston stroke1.50 inches
Maximum handle effort60 lb.
Weight37 lb.
Dimensions26.94 x 9.43 x 6.82 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.

Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
