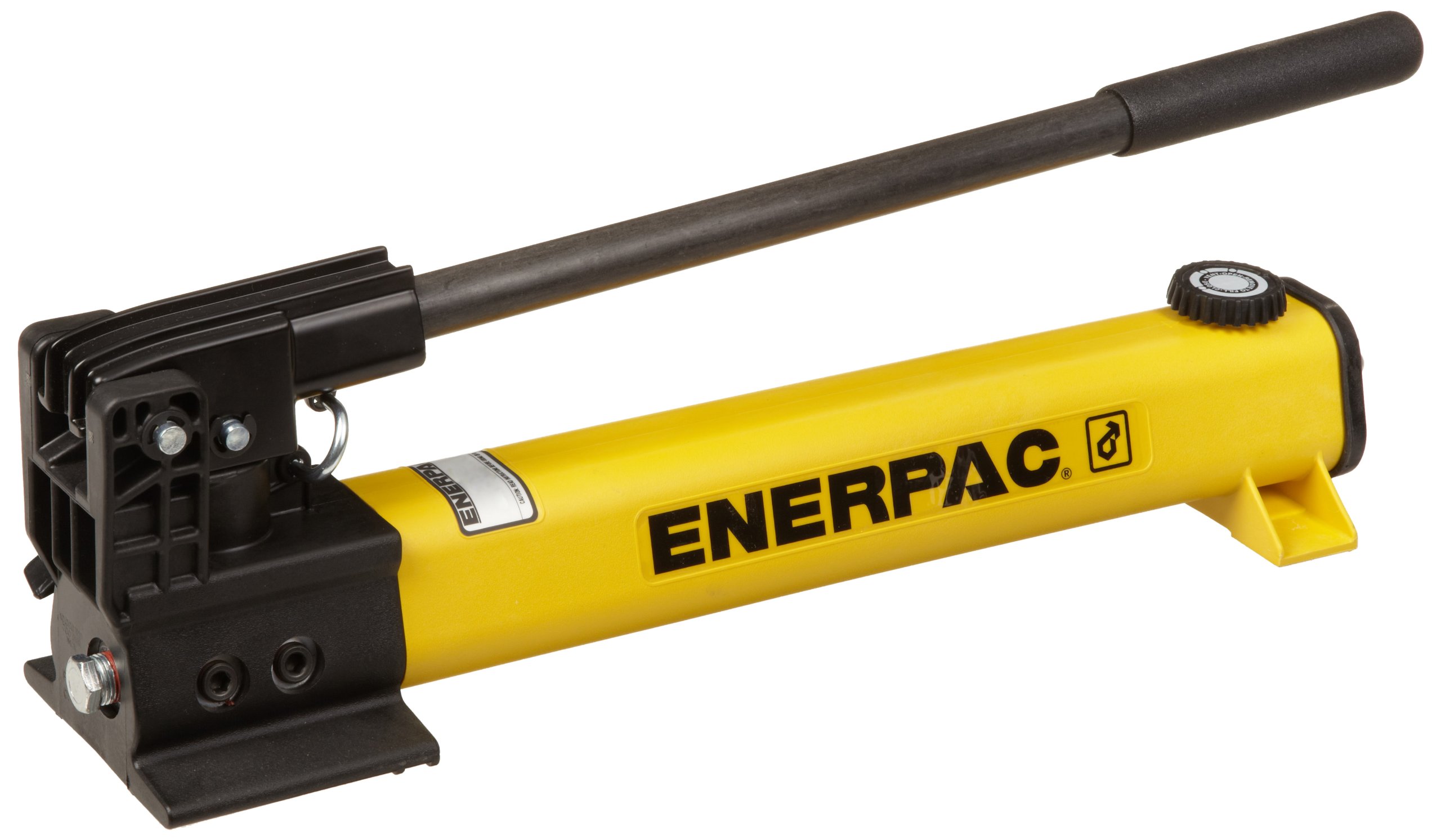

Enerpac P-391 Single Speed Lightweight Hand Pump

Be the first to review this item

ASIN B000S1UA1U

Specifications for this item
Number of Items
1
Material Type
Aluminum
Part Number
P-391
UPC
662005107063
Brand Name
Enerpac
EAN
0662005107063
UNSPSC Code
40151533

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 3 hrs 45 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High-pressure, lightweight hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
  • Advances and releases a single-acting cylinder
  • Maximum operating pressure of 10,000 pounds per square inch (psi)
  • Single-speed pump for applications with a constantly applied load
  • Internal pressure relief valve helps prevent pump overload

Package Details

Shipping Weight: 9.85 pounds
Package Size: 22.6 x 8.1 x 5.9 inches

Product Description

The Enerpac P-391 high-pressure, single-speed, lightweight hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This single-speed hand pump is for applications with a constantly applied load. An internal pressure relief valve helps protect the pump from overload. The glass-filled nylon reservoir, nylon-covered aluminum base, and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps. The handle locks into place for secure transport. The pump has a 3/8" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).

Specifications

Maximum operating pressure10,000 psi
Maximum oil displacement, per stroke0.151 cubic inch
Usable oil capacity55 cubic inches
Piston stroke1.00 inch
Maximum handle effort85 lb.
Weight9 lb.
Dimensions7.00 x 21.00 x 4.75 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.

Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
