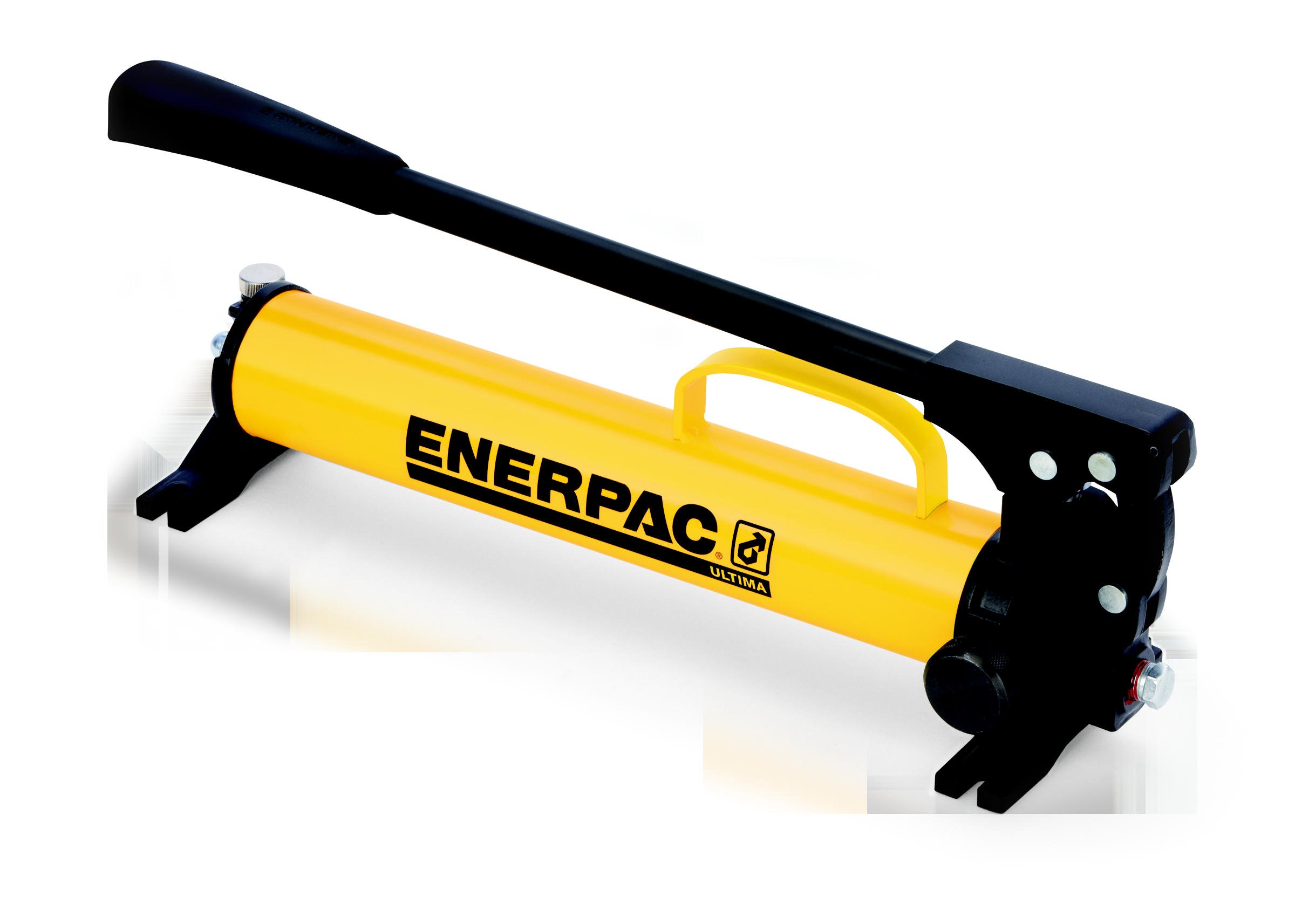

Enerpac P-39 Single Speed Steel Hand Pump

Be the first to review this item

ASIN B000LDGCPI

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
P-39
Item Weight
13 pounds
UPC
662005107056
Brand Name
Enerpac
EAN
0662005107056
UNSPSC Code
40151533

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Nov 28? Order in-stock items in the next 15 hrs 46 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High-pressure hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
  • Advances and releases a single-acting cylinder
  • Maximum operating pressure of 10,000 pounds per square inch (psi)
  • Single-speed pump for applications with a constantly applied load
  • Internal pressure relief valve helps prevent pump overload

Package Details

Shipping Weight: 16.55 pounds
Package Size: 24 x 8.2 x 7 inches

Product Description

The Enerpac P-39 high-pressure, single-speed hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This single-speed hand pump is for applications with a constantly applied load. An internal pressure relief valve helps protect the pump from overload. The vent-free reservoir helps prevent oil from spilling and is for use in non-vented applications. The pump can be operated in either the horizontal or vertical position. The steel body resists corrosion and wear, and the chrome-plated plunger and wiper system help extend the life of the pump. An ergonomically designed grip helps reduce operator hand fatigue, and the pump has a built-in carrying handle for transport. The pump has a 3/8" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).

Specifications

Maximum operating pressure10,000 psi
Maximum oil displacement, per stroke0.15 cubic inch
Usable oil capacity47 cubic ininches
Piston stroke1.00 inch
Maximum handle effort85 lb.
Weight13.6 lb.
Dimensions6.39 x 18.91 x 5.51 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.

Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
