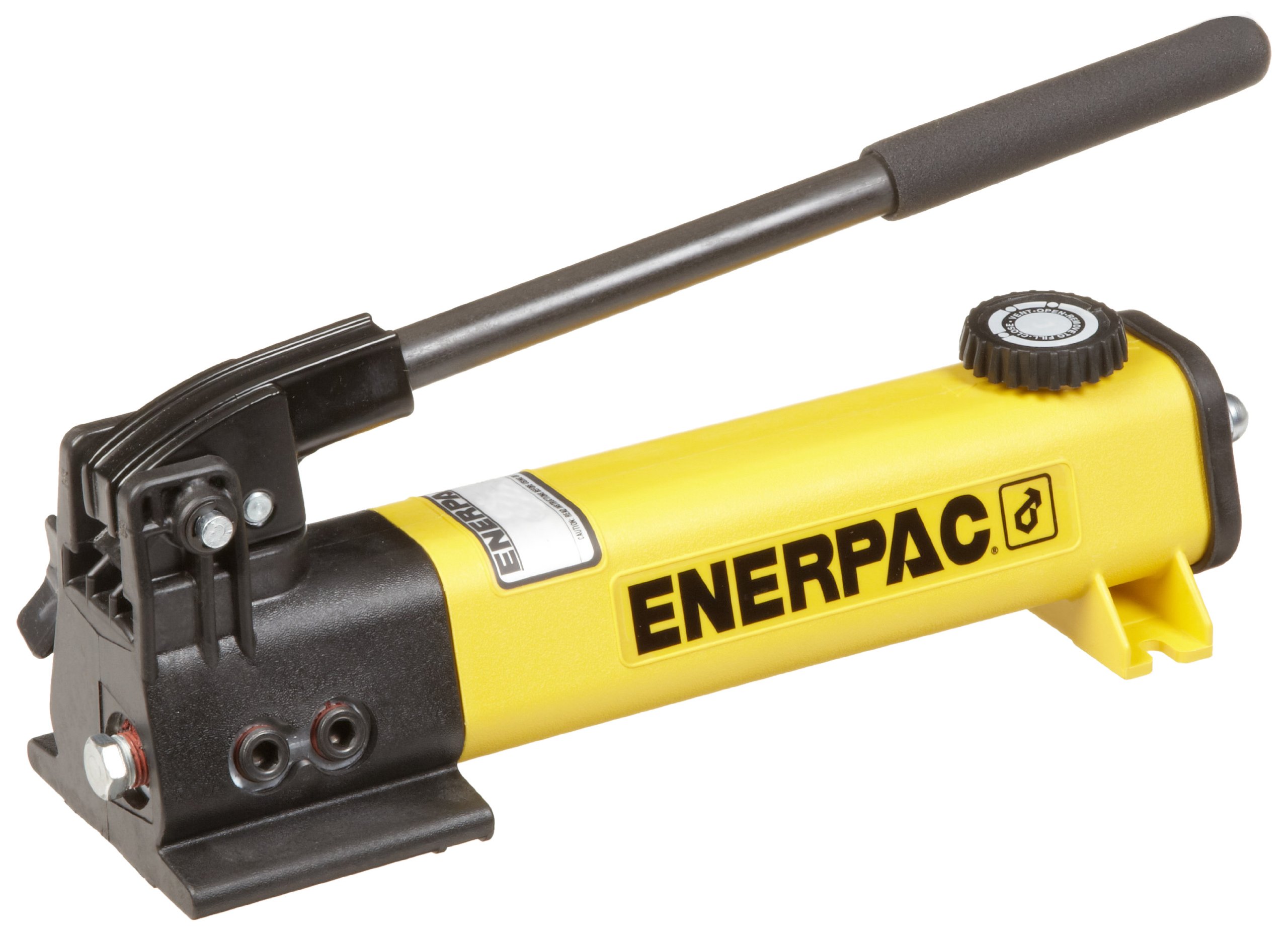

Enerpac P-142 2 Speed Hand Pump

Be the first to review this item

ASIN B001HW87QE

Specifications for this item
Number of Items
1
Catalog Number
277-P-142
Material Type
Aluminum
Part Number
P-142
UPC
662005107209
Brand Name
Enerpac
EAN
0662005107209
Price:
$320.05
Quantity:

Currently Unavailable We don't know when or if this item will be back in stock.

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • High-pressure, lightweight hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
  • Advances and releases a single-acting cylinder
  • Maximum operating pressure of 10,000 pounds per square inch (psi)
  • Two-speed pump requires fewer handle strokes to move a load than a similarly rated single-speed pump, increasing productivity
  • Internal pressure relief valve helps prevent pump overload

Package Details

Shipping Weight: 5.4 pounds
Package Size: 15 x 6.4 x 5.5 inches

Product Description

The Enerpac P-142 high-pressure, lightweight two-speed hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This two-speed hand pump requires fewer handle strokes to move a load than a similarly rated single-speed pump, increasing productivity. An internal pressure relief valve helps protect the pump from overload. The glass-filled nylon reservoir, nylon-covered aluminum base, and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps. The handle locks into place for secure transport. The pump has a 1/4" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).

Specifications

Maximum operating pressure, first stage200 pounds per square inch (psi)
Maximum operating pressure, second stage10,000 psi
Maximum oil displacement, per stroke, first stage0.221 cubic inch
Maximum oil displacement, per stroke, second stage0.055 cubic inch
Usable oil capacity20 cubic inches
Piston stroke0.5 inch
Maximum handle effort78 lb.
Weight5.3 lb.
Dimensions5.63 x 13.25 x 3.75 inches (H x W x D)

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.

Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
