Enerpac MS2-10 5 Ton Hydraulic Maintenance Set

Be the first to review this item

ASIN B001HWDJCG

Specifications for this item
Number of Items
1
Part Number
MS2-10
Item Weight
140 pounds
UPC
662005800117
Brand Name
Enerpac
EAN
0662005800117
UNSPSC Code
27121602

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Set of hydraulic tools and accessories for construction, manufacturing, and maintenance and repair uses
  • 5 ton maximum capacity
  • Maximum operating pressure of 10,000 pounds per square inch (psi) without attachments or 5,000 psi with attachments
  • Includes pump, cylinder, gauge, hose, adaptors, and attachments for pushing, pulling, lifting, pressing, straightening, spreading, and clamping
  • Includes wooden tool box with latching lid for organized storage and portability

Package Details

Shipping Weight: 196 pounds
Package Size: 44 x 27 x 13 inches

Product Description

The Enerpac MS2-10 5-ton hydraulic maintenance set consists of hydraulic tools and accessories for pushing, pulling, lifting, pressing, straightening, spreading, and clamping in construction, manufacturing, and maintenance and repair applications. The set has a maximum capacity of 5 tons, and includes a two-speed hydraulic hand pump that can advance and release a single-acting cylinder or power a hydraulic tool, but cannot hold a load. It also comes with a single-acting spring return hydraulic cylinder for applying force to a load. The set comes with a range of accessories and components and a wooden tool box with a latch on the lid for organizing, transporting, and storing the tools and accessories.

Specifications

Set maximum capacity5 tons
Set maximum operating pressure
5,000 pounds per square inch, with attachments(psi)

10,000 psi, without attachments
Pump
200 psi first stage maximum operating pressure

10,000 psi second stage maximum operating pressure

0.687 cubic inch first stage oil displacement, per stroke

0.151 cubic inch second stage oil displacement, per stroke

55 cubic inch usable oil capacity

93 lb. maximum handle effort

1 inch piston stroke
Cylinder
10 ton maximum capacity

6.13 inch stroke

2.24 square inch effective area

13.70 cubic inch oil capacity

9.75 inch collapsed height
1" 8 Universal (UN) threaded attachmentsBase adapter
1-1/4" 11-1/2 National Pipe Taper (NPT) threaded attachments
Base attachment

Flat base

Connector

Plunger toe

Spreader toe

Serrated saddle

Smooth saddle

90-degree V-base

Wedge head

Rubber flex head

Double chain plate (2)

Pipe coupling (2)

Male lock-on adaptor

Female lock-on adaptor

Adjustable extension
2-1/4" 14 UN threaded attachments
Single chain plate

Spreader

Collar toe
1.69" diameter attachments
Collar clamp head

Lock-on clamp to
0.44" diameter attachmentsLock pins (3)
1.31" diameter attachmentsLock on connectors (2)
Set weight140 lbs.

Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.

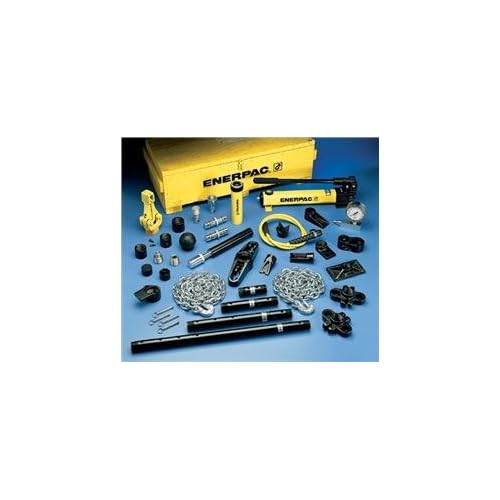

What's in the Box?
  • Enerpac P-392 two-speed hydraulic hand pump and RC-106 single-acting hydraulic cylinder
  • Enerpac GP-10S pressure gauge, GA-2 gauge adaptor, and HC-7206 hose (1 each)
  • Flat base, 90-degree V-base, base adapter, and base attachment (1 each)
  • Collar toe, plunger toe, and spreader toe (1 each)
  • Connectors (1 threaded and 2 lock-on)
  • Collar clamp head, wedge head, rubber flex head, and spreader (1 each)
  • Serrated saddle and smooth saddle (1 each)
  • Chain plates (1 single, 2 double) and 6-foot chains with hooks (2)
  • Pipe couplings (2) and lock-on clamp-to (1)
  • Lock-on adaptors (1 male and 1 female) and lock pins (2)
  • Adjustable extension (1) and slip-on extensions (1 each 5", 10", 18," and 30")
  • Wooden tool box
