Enerpac BP124-E Battery Powered Hydraulic Pump with 230 Volt Charger
Be the first to review this item
ASIN B007INY0XK
Specifications for this item
- Brand Name
- Enerpac
- EAN
- 0662005188208
- Number of Items
- 1
- Part Number
- BP124-E
- UPC
- 662005188208
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 14 hours 5 minutes and choose One-Day Shipping at checkout.
Key Features
- Battery-powered, lightweight hydraulic pump for lifting or applying pressure with a hydraulic cylinder (sold separately) in settings where an external power supply is not available or where pump portability is required
- Advances and releases a single-acting cylinder or powers a hydraulic tool
- Maximum operating pressure rating of 10,000 pounds per square inch (psi)
- Two speed settings and variable trigger handle provide increased operator control over flow rate
- Internal and external pressure relief valves help prevent pump overload
Package Details
Shipping Weight:
37.7 pounds
Package Size:
18.5 x 16.5 x 12.9 inches
Product Description

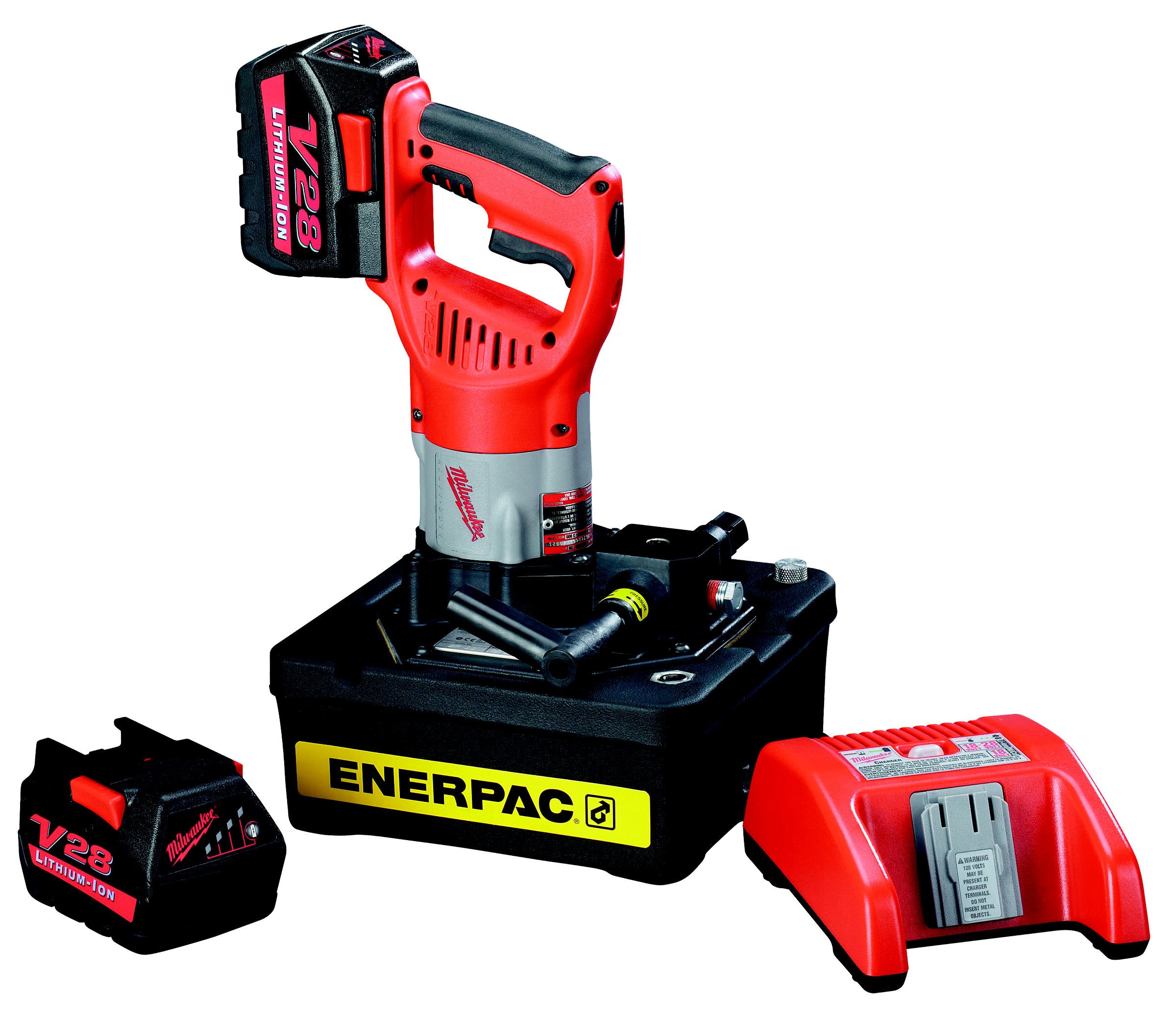

The Enerpac BP-124E battery-powered, two-speed, lightweight hydraulic pump with 230V battery charger is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in construction, manufacturing, and maintenance and repair applications where an external power supply is not available. It can advance and release a single-acting cylinder or power a hydraulic tool, but it cannot hold a load. The pump has two speed settings. In both settings, the operator can vary the flow rate by increasing or decreasing the pressure applied to the pump's trigger handle. The trigger handle can be locked in the off position when not in use. A non-adjustable internal pressure relief valve and an adjustable external pressure relief valve help protect the pump from overload. The pump has a built-in handle for carrying. The pump has a 1/4" National Pipe Taper (NPT) threaded port for connecting to a hose or gauge (sold separately). The pump is powered by a 3 amp-hour lithium-ion (Li-Ion) battery pack (two included) and comes with a 230V charger that recharges a spent battery pack in one hour. Light-emitting diodes (LEDs) on the battery pack show the amount of charge remaining in the pack.
Specifications
| Maximum operating pressure | 10,000 psi |
| Maximum output flow rate per minute, at 200 psi | 120 cubic inches |
| Maximum output flow rate per minute, at 10,000 psi | 15 cubic inches |
| Usable oil capacity | 1 gallon |
| Motor rating | 0.4 horsepower |
| Motor voltage | 28V |
| Motor maximum revolutions per minute, low speed | 2,000 |
| Motor maximum revolutions per minute, high speed | 3,000 |
| Maximum operating noise level | 95 decibels (A) |
| Maximum operating temperature | 140 degrees Fahrenheit (50 degrees Celsius) |
| Control valve type | 3-way, 2-position, lever-operated |
| Power source | 28-volt lithium-ion (Li-Ion) battery pack (included) |
| Weight | 24 lb. |
| Dimensions | 16.25 x 12.18 x 14.50 inches (H x W x D) |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from back to front.
Hydraulic pumps lift, bolt, or apply pressure to objects by pressurizing and moving hydraulic fluid. A hydraulic pump consists of a base, a reservoir that holds hydraulic fluid, and an operating mechanism, such as a handle or foot pedal, an electric motor, compressed air, or a gasoline engine. When the operating mechanism is activated, pressurized hydraulic fluid from the reservoir is delivered through an attached hose to a hydraulic cylinder. The pressurized hydraulic fluid in the cylinder lifts the cylinder’s piston, which in turn lifts the load. Hydraulic hand pumps are usually made of steel, or aluminum and nylon, and can be single-speed or two-speed. They are used in a wide range of applications, such as construction, manufacturing, and maintenance and repair applications in both industrial and home settings.
Enerpac manufactures industrial hydraulic equipment for lifting, workholding, and other applications, and provides integrated lifting solutions for bridge construction, mining, shipbuilding, and other industries. The company, founded in 1959, is headquartered in Menominee Falls, WI.
What's in the Box
- EnerpacBP-124E battery-powered two-speed hydraulic pump
- 230V battery charger
- (2) 28-volt lithium-ion (Li-Ion) battery pack
- Instructions
