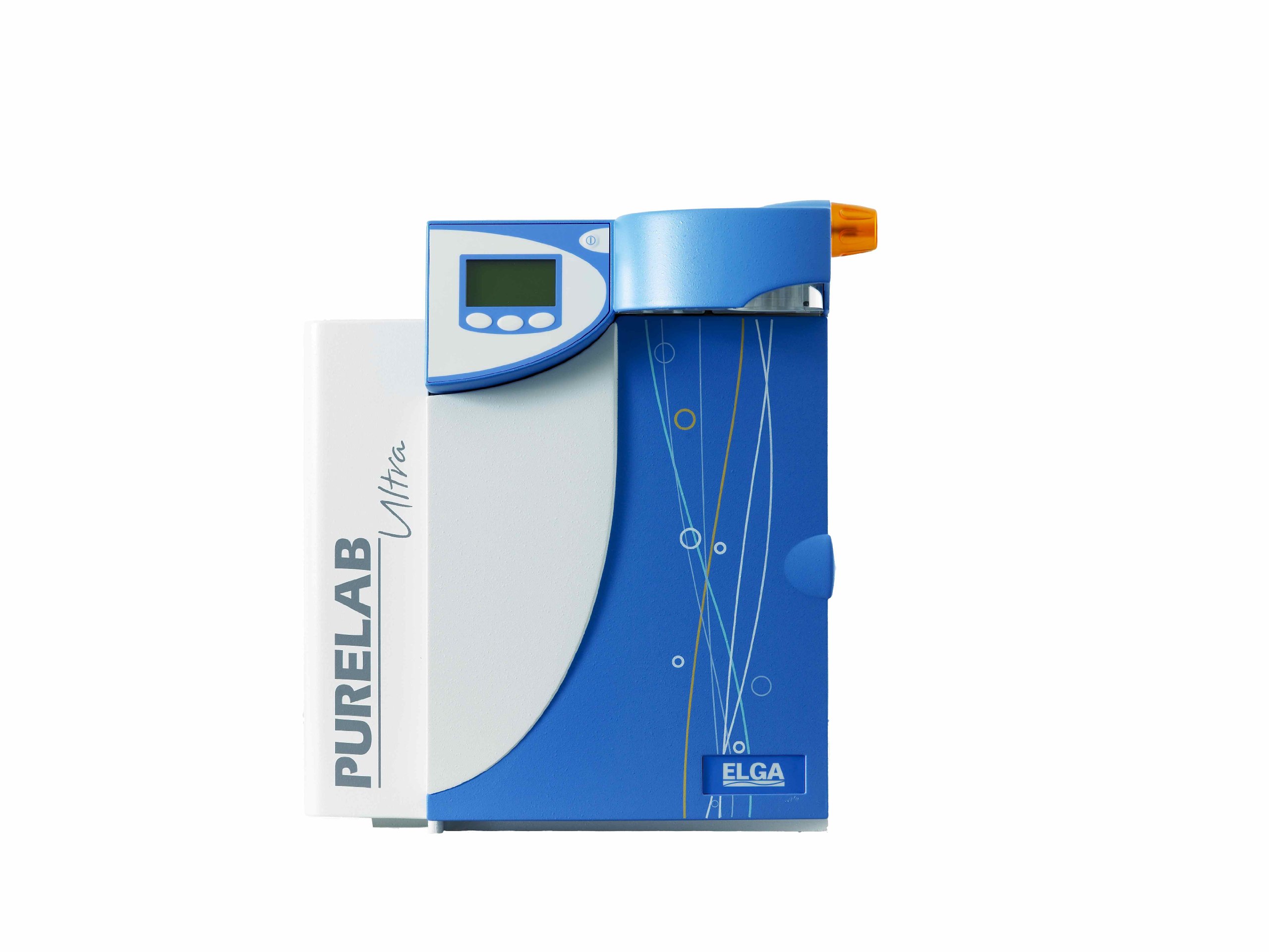

Elga ULXXXSCM2 Purelab Ultra Scientific Water Purification Unit, 18.2 Meg-ohm Resistivity, 3-10 ppb TOC, 2 Liter per Minute

Be the first to review this item

ASIN B004QGYVEA

Specifications for this item
Number of Items
1
Overall Height
490  millimeters
Overall Width
410  millimeters
Pressure Flow Rate
2  LPM
Part Number
ULXXXSCM2
Temperature Range
1/40  Degrees Celsius
Brand Name
Elga
Maximum Inlet Pressure
0.7  Bars
UNSPSC Code
41104200

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 3? Order in-stock items in the next 2 days 14 hrs 43 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Point-of-Use Type 1 polisher. Requires pre-treated feed: DI, RO or RO/DI feed. For example from Prima, Option S/R, or Pulse or central system.
  • System includes: DI purification and 2 water quality sensors. Can be fitted with LC145 0.2um POU filter (for bacteria and particulate removal) or with LC197 BioFilter for RNase, DNase, Endotoxin, particluate and bacteria (<0.1cfu/ml) free water
  • Does not include purification pack. Must purchase two packs separately for start-up (only one pack required for change-out). Recommend LC182 Purification Pack.
  • Timed dispense settings and volumetric profiling from drips to 2lpm flow.
  • PureSure technology ensures purity beyond 18.2Meg-ohm, down to parts per trillion levels.

Package Details

Shipping Weight: 36 pounds
Package Size: 27 x 22 x 19 inches

Product Description

The new Purelab Ultra is the intelligent ultra-pure water purification system for your most critical applications. It incorporates many unique and innovative features that set it apart from other systems and guarantees water purity to 18.2 M?-cm and beyond. Inorganics: 18.2 M?-cm. TOC: 3 - 10 ppb (1). Bacteria: <0.1 CFU/ml (2). pH: Effectively neutral. Particles: 0.2 �m(2). Labpure cartridge capacity: Liters at 18.2 M?-cm = 80,000 / �S/cm + (2.3 x ppm CO2). Measures 16.2" width by 19.3" height by 14.4" depth. Weight: 30.8 pounds. Source - originally from potable supply, then pre-treated: Preferably reverse osmosis (RO) or filtered service deionisation (SDI) or distilled. Note: mixed bed or twin bed deionised supplies should be cation limited at exhaustion. Service Deionization (SDI) - M?-cm: 1 M?-cm minimum resistivity at exhaustion. Reverse Osmosis (RO) - �S/cm: Recommended < 30 �S/cm. Free chlorine: 0.05 ppm max. Carbon dioxide: 30 ppm max. Silica: 2 ppm max. Particulates: Filtration down to 0.2 micron advisable to protect internal and/or point of use filters. Temperature: 1 - 40 degree C - Recommended 10 - 15 degree C. Flowrate (maximum requirement): 130 liter per hour. Drain requirements (gravity fall with air gap). Maximum during service: Up to 2 liter per minute. Feedwater Pressure: 1 psi minimum and 10 psi maximum. Mains input: 100 - 240V ac, 50 - 60Hz. System voltage: 24V dc. Power consumption during recirculation: 60VA. Power consumption during dispense: 75VA. Fuses: 2 x T6.3 Amp. Reservoir level connection: Jack Plug 3.5mm. Noise level during recirculation: <40dBA. Note (1): Dependant on feedwater - recommended feed < 50 ppb TOC. (2): With POU filter fitted.
