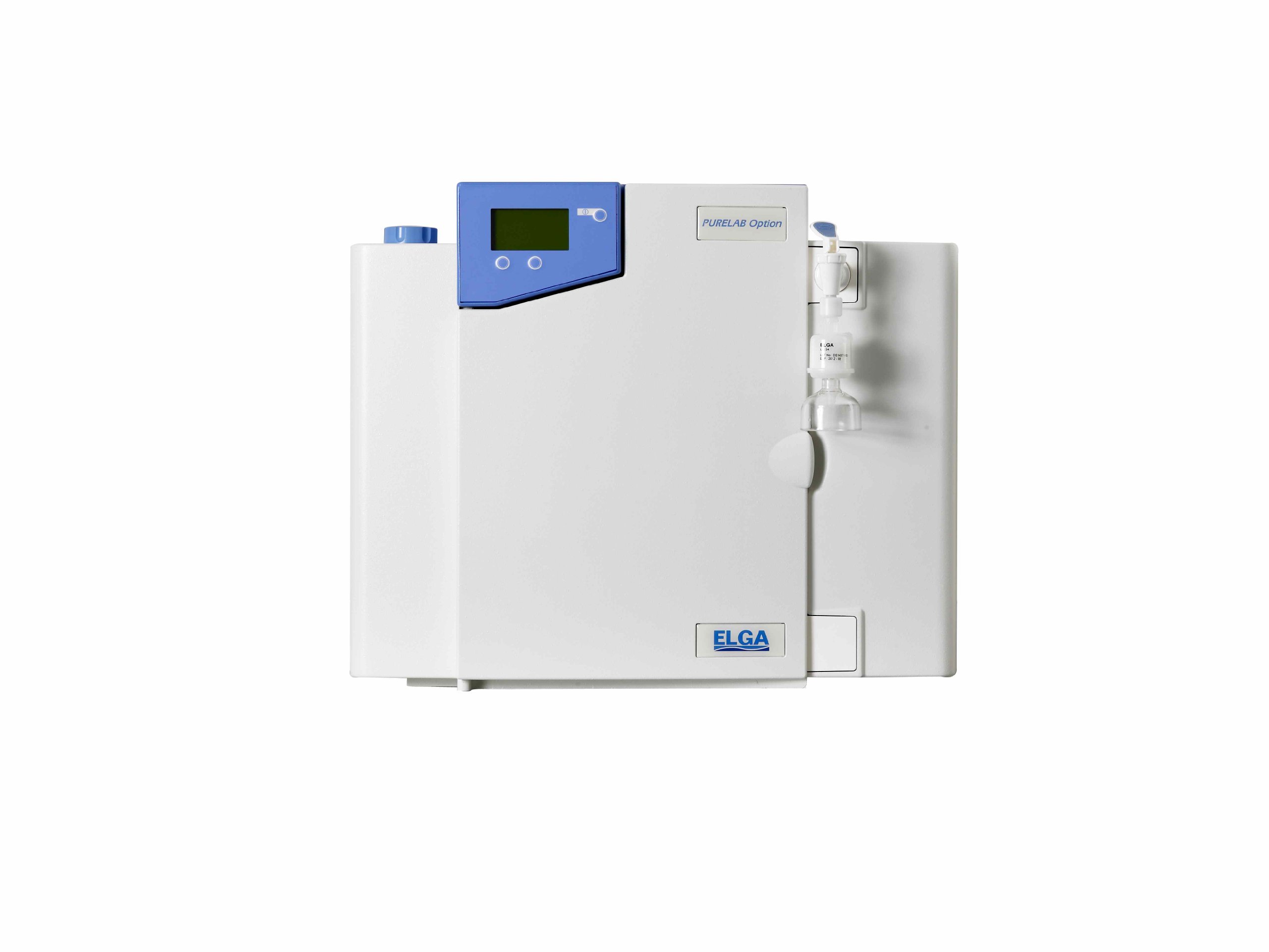

Elga OR007BPM1 Option R 7 Water Purification Unit with Raw Water Boost Pump, 10-15 Meg-ohm Resistivity, <20 ppb TOC

Be the first to review this item

ASIN B004QGYVEU

Specifications for this item
Number of Items
1
Overall Height
460  millimeters
Overall Width
550  millimeters
Pressure Flow Rate
78  LPH
Part Number
OR007BPM1
Temperature Range
1/35  Degrees Celsius
Brand Name
Elga
Maximum Inlet Pressure
2  Bars
List price:
$5,693.84
Price:
$4,699.27
You save:
$994.57 (17%)
Quantity:

In Stock (1)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 22? Order in-stock items in the next 8 hrs 48 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Will produce type II water from a tap water feed.
  • Has a make-up rate of <7lph. Recommended for less 100 liters per day. For needs >100lpd, please consider the Pulse 1 or 2.
  • System includes: boost pump, pre-treatment, RO, and 254nm UV light.
  • Produces bacteria free water <1cfu/ml, or <0.1cfu/ml when fitted with LC145 0.2um POU filter. Produces RNase, DNase, Endotoxin, particluate and bacteria (<0.1cfu/ml) free water when fitted with Biofilter (LC197)
  • Type II water can be dispensed from the tap at 1lpm. Type II water can also be dispensed from storage tank (not included, recommend LA621 - 25 liter Docking Vessel).

Package Details

Shipping Weight: 55 pounds
Package Size: 26.5 x 21 x 19 inches

Product Description

The Purelab option R 7 provides pure water on demand with a wide range of flow-rates to suit your needs. Applications range from glassware washing and the feeding of ultra-pure water systems to cell culture and media preparation. The purelab option-R provides additional bacteria and inorganic quality for your more critical applications. Delivers market leading microbial performance. In addition to simple sanitization and composite vent filtration, the purelab option-R system is the only fully recirculating type ii system on the market, ensuring high specification water. Purelab option systems are designed to be easy to access whether wall or bench mounted with a convenient dispense tap. Can be used with our wrap-around reservoirs to save space whilst optimizing purity. Make up rate(1): 7.5 liter per hour. Daily output (nominal max)(1): 180 liter per 24 hour day. Output reverse pressure (max)(2): 0.1 bar (1 psi). Bacteria(2): <1 CFU/ml. pH: Effectively neutral. Particles: Optional 0.2?m POU filter. Weight with internal boost pump: 20kg (44lb). Source quality - potable mains water supply. Fouling index - maximum: 10. Total dissolved solids - maximum: 1400�s/cm. Free chlorine - maximum: 0.5 ppm. Heavy metals - maximum: 0.05 ppm. Silica - maximum: 30 ppm. Temperature: 1 - 35 degree C. Flowrate (maximum requirement): 78 liter per hour. Drain requirements (gravity fall with air gap). Maximum during service: 70 liter per hour. Maximum - with internal boost pump: 2.0 bar. Minimum - with internal boost pump: flooded suction. Mains input: 100-240V ac, 50-60Hz. System voltage: 24V DC. Power consumption with boost pump: 80VA. Fuses: 2 x T6.3 Amp. Reservoir level connection: Jack Plug 3.5mm. Noise level: <45dBA. Note: (1): standard conditions are 4 bar inlet pressure, 0 bar back pressure at 15 degrees centigrade, fed with potable water and a clean pre-treatment cartridge. (2) Subject to suitable feedwater.
