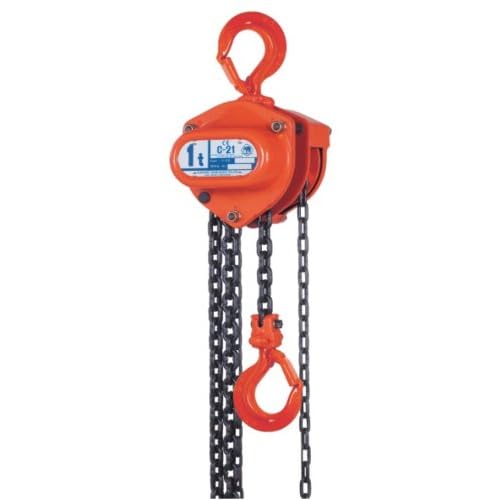

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

Elephant Lifting C21 Hand Chain Hoist, Hook Mount

Be the first to review this item

Product Specifications
Manufacturer Series Number
C21
Mounting Type
Hook
UNSPSC Code
24101602
Brand Name
Elephant Lifting

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 5 hrs 52 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 26 Next 6 »
Load Capacity Pull Force Headroom Hook Opening Lift ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 26 Next 6 »
1000 lbs 57.3 lbs 10.9" 0.95" 20 ft B0065749I6 yes $352.15 Buy Options
1000 lbs 57.3 lbs 10.9" 0.95" 15 ft B00657485A yes $289.12 Buy Options
1000 lbs 57.3 lbs 10.9" 0.95" 10 ft B0065746M0 yes $220.73 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 15 ft B006574CWE yes $324.35 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 10 ft B006574BQ6 yes $255.96 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 50 ft B006574INM yes $801.58 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 40 ft B006574GQG yes $666.32 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 30 ft B006574F8A yes $528.56 Buy Options
2000 lbs 70.6 lbs 12.2" 1.2" 20 ft B006574E4U yes $392.75 Buy Options
3000 lbs 72.8 lbs 13.4" 1.2" 30 ft B006574NKK yes $311.04 Buy Options
3000 lbs 72.8 lbs 13.4" 1.2" 20 ft B006574M56 yes $529.53 Buy Options
3000 lbs 72.8 lbs 13.4" 1.2" 15 ft B006574KRQ yes $456.99 Buy Options
3000 lbs 72.8 lbs 13.4" 1.2" 10 ft B006574JUY yes $384.46 Buy Options
4000 lbs 72.8 lbs 15" 1.4" 40 ft B006574VJS yes $950.26 Buy Options
4000 lbs 72.8 lbs 15" 1.4" 30 ft B006574U5S yes $782.38 Buy Options
4000 lbs 72.8 lbs 15" 1.4" 20 ft B006574SRS yes $614.51 Buy Options
4000 lbs 72.8 lbs 15" 1.4" 15 ft B006574RHY yes $530.57 Buy Options
4000 lbs 72.8 lbs 15" 1.4" 10 ft B006574QCA yes $446.63 Buy Options
6000 lbs 83.8 lbs 18.9" 1.4" 30 ft B0065754Z8 yes $1,084.54 Buy Options
6000 lbs 83.8 lbs 18.9" 1.4" 10 ft B006574XAA yes $632.12 Buy Options

Key Features

  • Manual hand chain hoist with hook mount and powder coated steel body for strength and resistance to shock, corrosion, and wear
  • Mechanical galvanized grade 105 load chain for high tensile strength and to minimize weight
  • Drop forged steel mount hook and load hook open slowly to indicate overload
  • Manufacturer load tested to 125% of rated capacity in accordance with ANSI/ASME requirements
  • Complies with EC Machinery Directive 89/392/EEC, Annex II A

Product Description

The Elephant Lifting C21 hand chain hoist with hook mount has a powder coated, steel body with an enclosed case for strength and resistance to shock, corrosion, and wear. It has a mechanical galvanized grade 105 load chain for high tensile strength and to minimize weight. This hoist has a drop forged steel mount hook and load hook to provide a visual indication of overload by opening slowly when load exceeds maximum rated capacity. It also has a zinc-plated hand chain and a Weston-style mechanical friction disk brake with four braking surfaces. The C21 hand chain hoist is suitable for the construction, marine, pulp mill, petroleum, and power industries to lift, lower, and move items, and can be employed for similar purposes in other industries. This hoist is manufactured in Japan. It is load tested by the manufacturer to 125% of rated capacity in accordance with American National Standards Institute/American Society for Mechanical Engineers (ANSI/ASME) requirements and complies with European Conformity (EC) Machinery Directive 89/392/EEC, Annex II A.

Hoists are devices that use relatively small amounts of force to lift, lower, and pull heavy loads. Manual hoists transfer a small, hand-exerted force either across a series of gears to multiply the force into one large enough to lift the designated load, or over a pulley, drum, or sheave to leverage the force into one strong enough to lift the load. This makes it possible for an operator to manage heavy loads. The manual force is usually applied using a hand chain, lever, or lever ratchet, lifting the load by a hook attached to a chain, rope, or wire. Hand chain and lever hoists commonly use mechanical disk brakes called Weston-style brakes that hold the load in place while the operator's hands are released to make the next pull, secure the load once it has been lifted, and control the descent of the load as it is lowered. Ratchet puller hoists commonly use ratchets instead of mechanical brakes to secure and control the load. Manual hoists are commonly attached to or suspended from structures by hook or trolley mounts, and are used in the transportation, construction, manufacturing, mining, and material handling industries, among others.

Capacity is the maximum rated load a hoist can handle. While manufacturers may indicate they have tested a hoist beyond its limits, operators should never attempt to lift a load heavier than the maximum rated load. Pull force describes the amount of force that needs to be applied to lift a load. If a 1/2-ton manual hoist specifies a pull force of 40 lb., for example, the operator needs to be able to pull a 40-lb. weight in order to lift the maximum 1/2-ton (500-lb.) load. Headroom is the distance from the bottom of the load hook to the top of the hoist. This is the minimum amount of vertical space needed for the hoist to hang freely and operate correctly. Lift is the maximum vertical distance the load hook can move a load.

Elephant Lifting Products distributes Elephant Chain Block hoists, beam clamps, and trolleys. The company, founded in 2009, is based in Gonzales, LA. The Elephant Chain Block Company, headquartered in Osaka, Japan, meets International Organization for Standardization (ISO) standard 9001.
