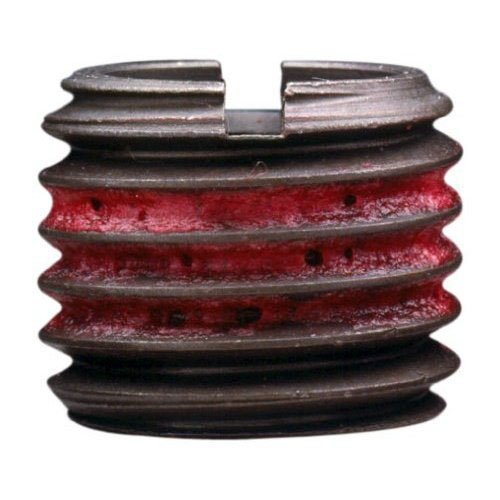

E-Z Lok Externally Threaded Insert, C12L14 Carbon Steel, Meets AISI 12L14, #8-32 Internal Threads, 5/16"-18 External Threads, 0.290" Length, Made in US (Pack of 10)

Be the first to review this item

ASIN B002WC8STY

Product Specifications
Part Number
329-008
UPC
839137002973
Thread Size
8-32
EAN
0839137002973
Indentation Hardness
163  Brinell
Inside Thread Size
#8-32
Number of Items
10
Overall Length
0.290  inches
Tensile Strength Max
60200  PSI
Thread Class
2B/2A
Specification for this product family (See all  products)
Schedule
Thick
Specification Met
AISI 12L14
Grade
C12L14
Material Type
Carbon Steel
Thread Style
UNC
UNSPSC Code
23291804
Import Designation
Made in US
Brand Name
E-Z LOK
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 9 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Easy to Use Solution For Repairing Damaged Threads in Metal
  • Install With Standard Drill & Tap; NO Special Tools Needed
  • Self Locking; Preapplied Adhesive Activates Upon Installation and is Fastener-Ready in 3-5 Minutes
  • Strong, Solid Construction Design
  • Ideal For Soft Metals Like Aluminum, Cast Iron, or Magnesium

Package Details

Shipping Weight: 0.05 pounds
Package Size: 4 x 4 x 0.1 inches

Product Description

E-Z LOK threaded inserts for metal provide an easy to use solution for repairing or reinforcing threaded holes in metal. Ideal for use in metals like aluminum and cast iron, E-Z LOK threaded inserts are screw machined out of solid steel for greater strength and superior pull out resistance. Standard external threads permit the use of standard drills and taps for installation. Once the hole is prepared, E-Z LOKs are threaded into the hole like an ordinary fastener using a screwdriver, bolt and jam nut, or optional E-Z LOK drive tool. E-Z LOKs are self locking and will not back out or vibrate loose. A preapplied adhesive activates upon installation and bonds to virtually all metals. Fastener-ready in minutes, the adhesive seals against liquids and gases to pressures of 6,000 psi. when fully cured (72 hours).
