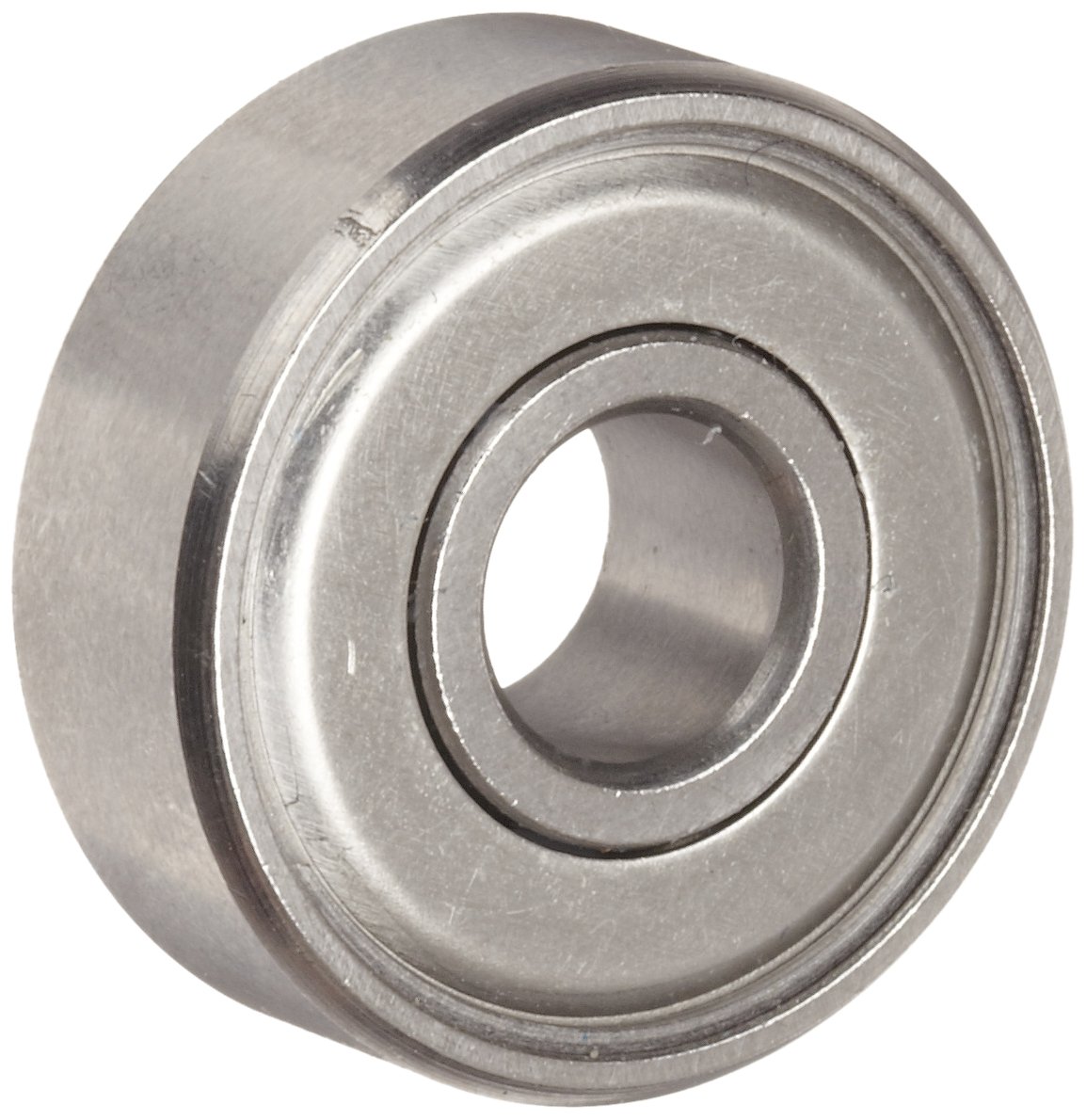

Dynaroll R-Series Ball Bearing, Double Shielded, 52100 Chrome Steel

Be the first to review this item

Product Specifications
Material Type
52100 Chrome Steel
UNSPSC Code
31171504
Brand Name
Dynaroll

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 2 hrs 37 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Mfr Part # Bore Diameter Outside Diameter Bearing Width Maximum Rotational Speed Static Load Capacity Dynamic Load Capacity ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All All All
Currently showing 1-6 of 6
R12ZZ 0.75" 1.625" 0.4375" 6300 rpm 29 lbs 81 lbs B00634VWZE 4 $4.36 Buy Options
R2ZZ 0.125" 0.375" 0.1562" 4800 rpm 52 lbs 122 lbs B00634VSPS 1 $3.52 Buy Options
R3ZZ 0.1875" 0.5" 0.196" 11000 rpm 16 lbs 52 lbs B00634VT8O 4 $4.14 Buy Options
R4AZZ 0.25" 0.75" 0.2812" 8000 rpm 20 lbs 64 lbs B00634VUVU 1 $4.29 Buy Options
R4ZZ 0.25" 0.625" 0.196" 9500 rpm 10 lbs 31 lbs B00634VTSO 1 $2.98 Buy Options
R8ZZ 0.5" 1.125" 0.3125" 6300 rpm 49 lbs 144 lbs B00634VW18 1 $4.31 Buy Options

Key Features

  • Single row, deep-groove ball bearing for applications that support high speeds, axial loads in both directions, and radial loads
  • Metal shields on both sides of the bearing keep the lubricant in and contaminants out
  • AISI 52100 chrome steel for durability and resistance to deformity under heavy loads
  • Stainless steel cage evenly spaces balls for reduced friction, vibration, and noise
  • CN (normal) radial clearance for applications where thermal expansion is not a factor

Product Description

This Dynaroll R-Series ball bearing is double shielded and made of American Iron and Steel Institute (AISI) 52100 chrome steel. The single-row, deep-groove ball bearing is suitable for applications that support high speeds, axial loads in both directions, and radial loads. It has deep inner and outer races that conform to the balls that run in them, allowing higher speeds and creating lower friction than bearings with comparable-sized roller bearings. The bearing has a metal shield on either side that is fastened to the outside ring and extends over the rolling elements. The shields assist in keeping out contaminants such as dirt and grime and also help to hold in a lubricant applied during manufacturing. The inner and outer rings and balls are made of low-alloy, through-hardened AISI 52100 chrome steel for durability and resistance to deformity under heavy loads. This bearing has a stainless-steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise, and it can be used to a maximum operating temperature of 121 degrees C/250 degrees F. The bearing has a CN (normal) radial internal clearance designation making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This ball bearing is for use in commercial and industrial applications including generators, pumps, original equipment or replacement parts in motors, office automation, farm equipment, and conveyor rollers.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

Dynaroll Corporation manufactures miniature bearings and ball bearings that meet International Organization for Standardization (ISO), Occupational Health and Safety Assessment Series (OHSAS), Production Part Approval Process (PPAP), and U.S. Food and Drug Administration (FDA) Critical standards for quality assurance. Founded in 1988, Dynaroll is based in Sylmar, California.
